Product details
Product Overview

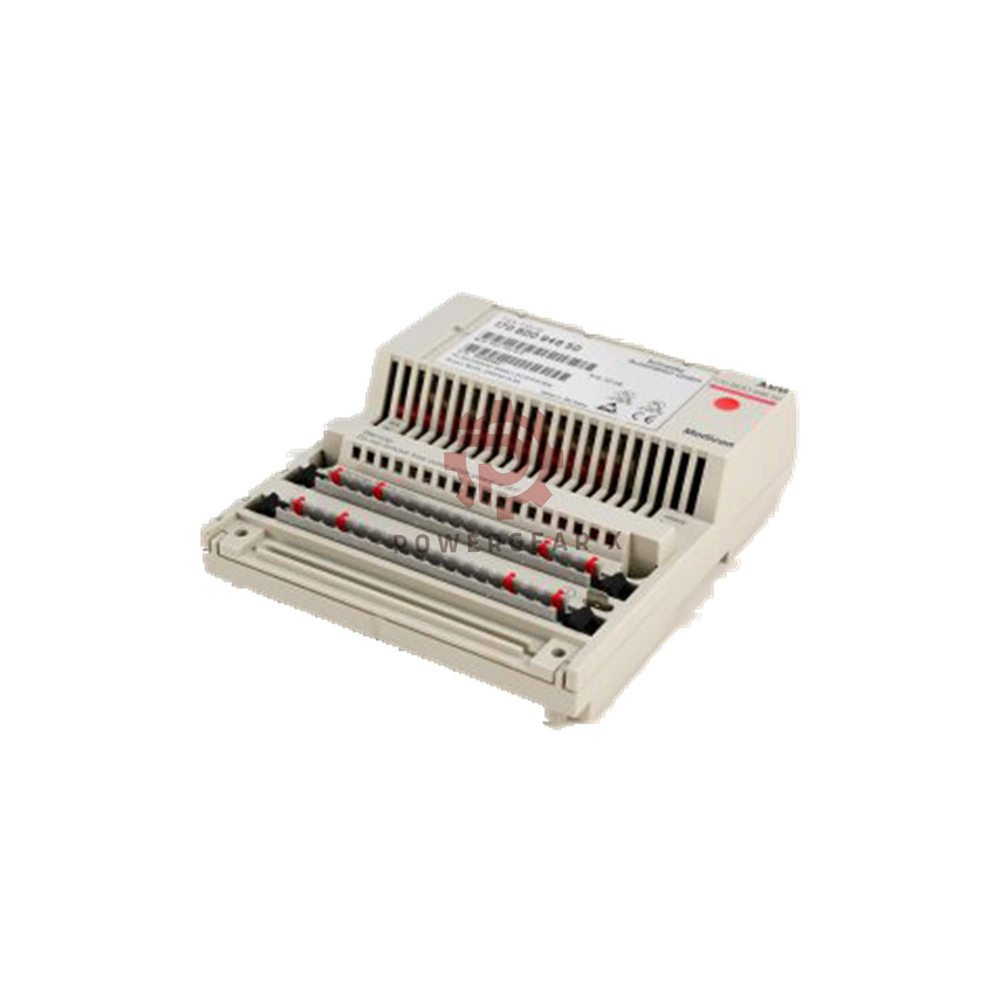

Schneider Electric 170BDO94650 is an output module from the Modicon Momentum series. It provides 16 AC output channels for industrial control systems. This module operates at 115..230 V AC with 50 or 60 Hz frequency. Furthermore, it carries CE marking for safety compliance.
Key Features
- 16 output channels in one group
- Voltage range: 115..230 V AC
- Frequency: 50/60 Hz
- CE marked for safety compliance
- Temperature range: 0..+40°C
- Humidity tolerance: 80% (non-condensing)
- Altitude rating: 1000 m without derating
Technical Specifications (Hierarchical)
- General
- Brand: Schneider Electric
- Model: 170BDO94650
- Series: Modicon Momentum
- Type: Output Module
- Outputs
- Number of outputs: 16
- Output grouping: 1 group
- Voltage type: AC
- Voltage rating: 115..230 V AC
- Frequency: 50/60 Hz
- Environmental
- Operating temp: 0..+40°C
- Max operating humidity: 80% RH (non-condensing)
- Max storage humidity: 80% RH (non-condensing)
- Max altitude: 1000 m (without derating)
- Compliance
- CE marked: Yes
Expert Review
“170BDO94650 delivers reliable AC output control for Modicon Momentum systems. The 16 channels handle multiple devices simultaneously. Meanwhile, the 115..230 V range covers global power standards. We recommend it for valve control, motor starters, and indicator applications.”
Manager’s Insight
“This module provides excellent value with 16 outputs in one group. The wide voltage range suits various industrial loads. Furthermore, CE marking ensures global acceptance. With 12-month warranty and fast shipping, it is a dependable choice for automation upgrades.”
Applications & Compatible Devices
- Compatible with: Modicon Momentum automation platform
- AC loads: Solenoids, contactors, relays, indicators
- Industries: Packaging, material handling, conveyor systems
- Use cases: On/off control of AC-powered field devices
Installation & Maintenance
- Mounting: Directly onto Modicon Momentum base
- Wiring: Use appropriate gauge for AC loads
- Grouping: All 16 outputs share one common group
- Maintenance: Periodic inspection of terminal connections
- Replacement: Hot-swappable (check system compatibility)
Frequently Asked Questions
- Q: How many outputs does this module have?
16 outputs. All are in one group. - Q: What voltage range does it support?
115..230 V AC at 50 or 60 Hz. - Q: Is this module CE certified?
Yes. It carries CE marking for safety compliance. - Q: What is the maximum operating temperature?
40°C. Minimum is 0°C. - Q: Can I use this module at high altitude?
Yes. Up to 1000 m without derating.
Experience-based Q&A
- Q: One output does not work. What should I check?
Verify the load wiring and fuse. Also, check the output configuration. - Q: Can I connect different voltages to different outputs?
No. All outputs share the same group voltage. - Q: The module feels warm. Is that normal?
Yes. Passive cooling is sufficient within the temperature range.
Selection Guide
- For AC load control, this module is the standard choice.
- For high-density applications, 16 outputs save rack space.
- For global projects, 115..230 V covers most regions.
- For indoor use, 0..40°C fits typical factory conditions.
- For cost-effective solutions, this module offers good value.
Comparison with Similar Models
- 170BDO94650 – 16 AC outputs, 115-230V, Momentum series.
- 170BDO94600 – 16 DC outputs (24V).
- 170BMO94650 – 16 AC outputs with diagnostic features.
Package Contents
- 170BDO94650 output module (1 unit)
- Quick start guide
- Warranty card (12 months)
Shipping & Delivery
- Dispatch: 12–24 hours after order
- Carriers: FedEx, UPS, DHL (express worldwide)
- Tracking: Provided within 24 hours
