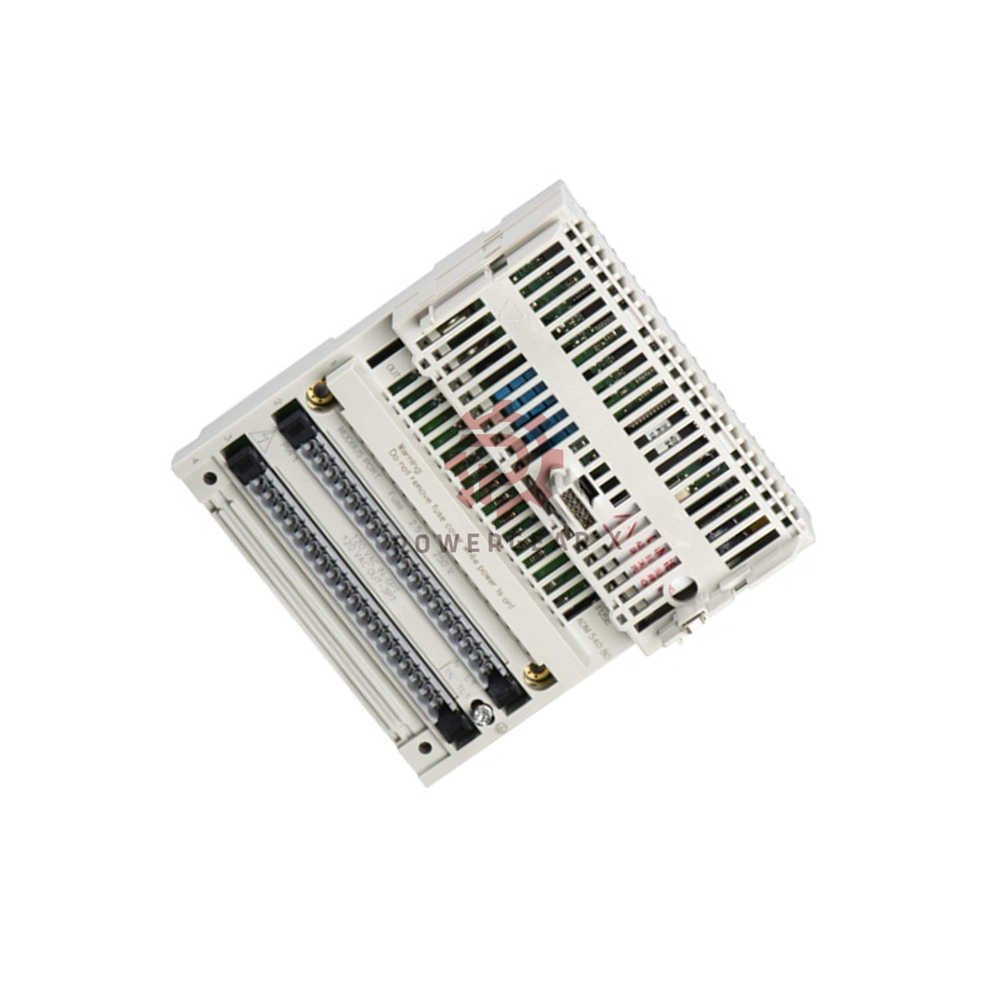

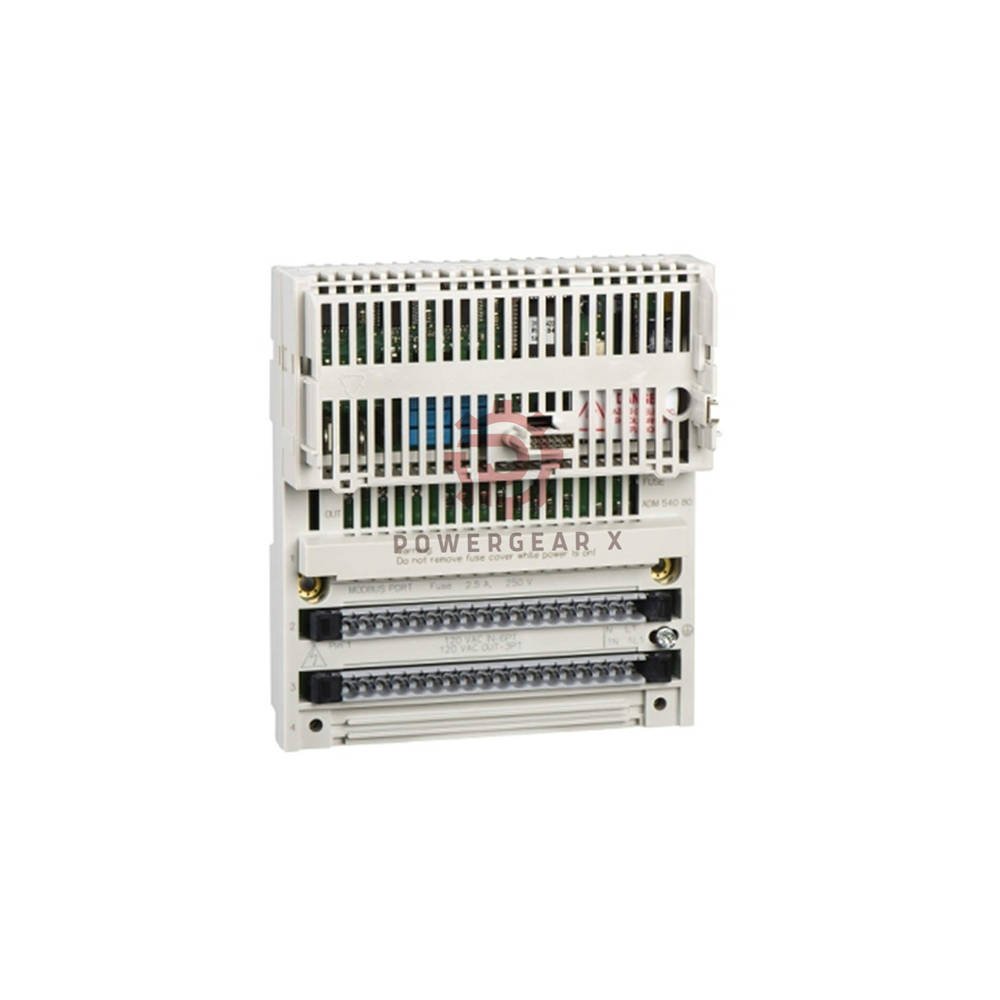

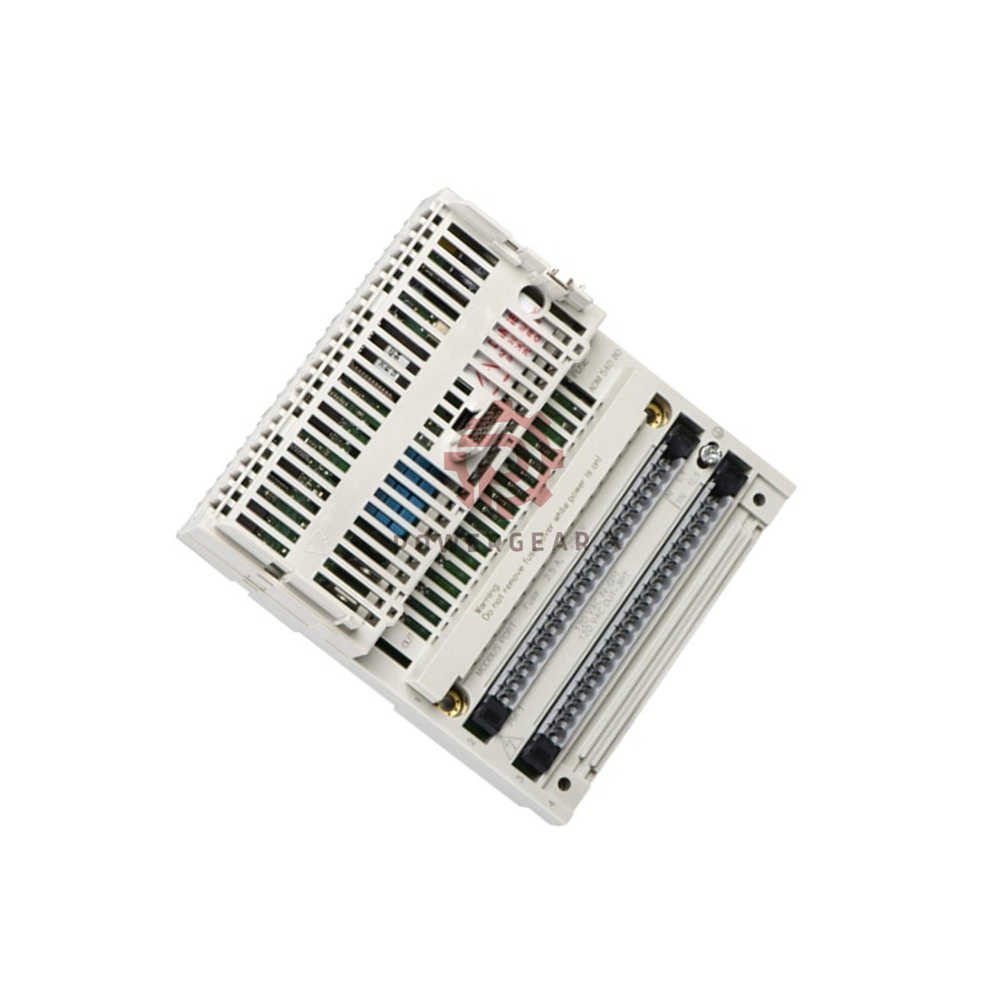

170ADM54080 Schneider Electric Modicon Momentum Modbus I/O Base Module

Product Overview

• 170ADM54080 is a Modbus I/O module base from the Modicon Momentum series by Schneider Electric.
• Designed for 120 V AC input voltage (47–63 Hz) with a tolerance of 0 to 132 V AC.
• Provides 6 discrete inputs and 3 discrete outputs for flexible industrial control.
• Communicates via Modbus protocol over an RS485 port, supporting 2- or 4-wire wiring.
• Operates reliably in ambient temperatures from 0 °C to 60 °C, and stores from -40 °C to 85 °C.
• Addressable range: 0–247, suitable for large networked systems.
• Compact design, net weight 0.24 kg (0.53 lb).

Key Technical Specifications

• Manufacturer: Schneider Electric
• Model: 170ADM54080
• Product Line: Modicon Momentum
• Input Voltage Rating: 120 V AC (47–63 Hz)
• Input Voltage Limit: 0 to 132 V AC
• Discrete Inputs: 6 (positive logic)
• Discrete Outputs: 3 (positive logic)
• Communication Protocol: Modbus (RS485)
• Wiring Mode: 2 or 4 wires
• Current Consumption: 125 mA at 120 V AC
• Surge Current: 30 mA
• Max Leakage Current: 1.9 mA at 120 V AC
• Response Time (60 Hz): <12.3 ms (1→0), <12.5 ms (0→1)
• Data Formats: 8-bit RTU, 7-bit ASCII
• Baud Rates: 9600 or 19200 bit/s
• Port Timeout: 150 ms
• Input Overvoltage Protection: 200 V
• Voltage State 1 Guaranteed: ≥79 V
• Voltage State 0 Guaranteed: ≤20 V
• Current State 1 Guaranteed: ≥5.5 mA
• Current State 0 Guaranteed: ≤1.9 mA
• Output Voltage: 120 V AC (47–63 Hz)
• Output Current: 0.5 A per point, 1.5 A per module
• Voltage Drop (On State): <1.5 V at 0.5 A
• Ambient Operating Temp: 0 to 60 °C (non-condensing)
• Storage Temp: -40 to 85 °C (non-condensing)
• Relative Humidity: 95% (non-condensing)
• Operating Altitude: ≤5000 m
• Certifications: CSA, UL, CE
• Protective Treatment: TC
• ESD Immunity: 4 kV contact, 8 kV air (IEC 801-2)
• RF Immunity: 10 V/m (80–1000 MHz, IEC 801-3)

Installation & Wiring

• Uses two removable terminal block connectors for easy wiring.
• Supports both 2-wire and 4-wire configurations for flexibility.
• Positive logic for inputs and outputs simplifies integration.
• Mounts directly onto a DIN rail or panel (standard Momentum form factor).

Commissioning & Maintenance

• Quick setup with automatic baud rate detection (9600/19200).
• LED indicators for status and diagnostics simplify troubleshooting.
• No special software required; configure via DIP switches or Modbus commands.
• Rugged design reduces maintenance needs in harsh environments.

Compatibility

• Fully compatible with Modicon Momentum PLCs and third-party Modbus masters.
• Works with RS485 networks; supports up to 247 addresses per segment.
• Integrates seamlessly into existing Modbus RTU networks.

Certifications & Quality

• CSA and UL listed for safety and reliability.
• CE marked for European compliance.
• Resistant to electrostatic discharge and electromagnetic fields per IEC standards.

Package Contents

• 1 x 170ADM54080 Modbus I/O Module Base
• 2 x Removable terminal block connectors
• User manual (digital download available)

Warranty & Shipping

• 12-month warranty against manufacturing defects.
• 24-hour dispatch on business days.
• Shipped via FedEx, UPS, or DHL (tracking provided).

Expert Review – Manager’s Insight

• “The 170ADM54080 delivers proven performance for discrete control in manufacturing and utilities.”
• “Its wide voltage tolerance and robust RS485 communication make it a top choice for system integrators.”
• “We recommend this module for applications requiring reliable I/O with minimal configuration effort.”

Applications & Suitable Devices

• Ideal for PLC systems, automation panels, and remote I/O installations.
• Perfect for material handling, packaging machinery, and HVAC controls.
• Works with Schneider Electric, Modbus compatible controllers, and SCADA systems.

Frequently Asked Questions (FAQ)

• What is the input voltage range?
  0 to 132 V AC (rated at 120 V AC, 47–63 Hz).
• How many inputs and outputs does it have?
  6 discrete inputs and 3 discrete outputs.
• What communication protocol does it use?
  Modbus RTU over RS485.
• Can I use 2-wire or 4-wire wiring?
  Yes, both modes are supported.
• What is the operating temperature range?
  0 to 60 °C (non-condensing).
• Is it compatible with third-party PLCs?
  Yes, any Modbus master can communicate with it.
• What is the maximum number of addresses?
  247 addresses (0–247).
• Does it have surge protection?
  Yes, rated surge current is 30 mA.

Selection Guide – Experienced Advice

• Choose this module if you need a reliable, compact I/O base for Modbus networks.
• For high-density applications, consider adding multiple units (up to 247 addresses).
• Ensure your controller supports Modbus RTU and RS485 for seamless integration.
• Select 2-wire for simple connections or 4-wire for longer distances and noise immunity.
