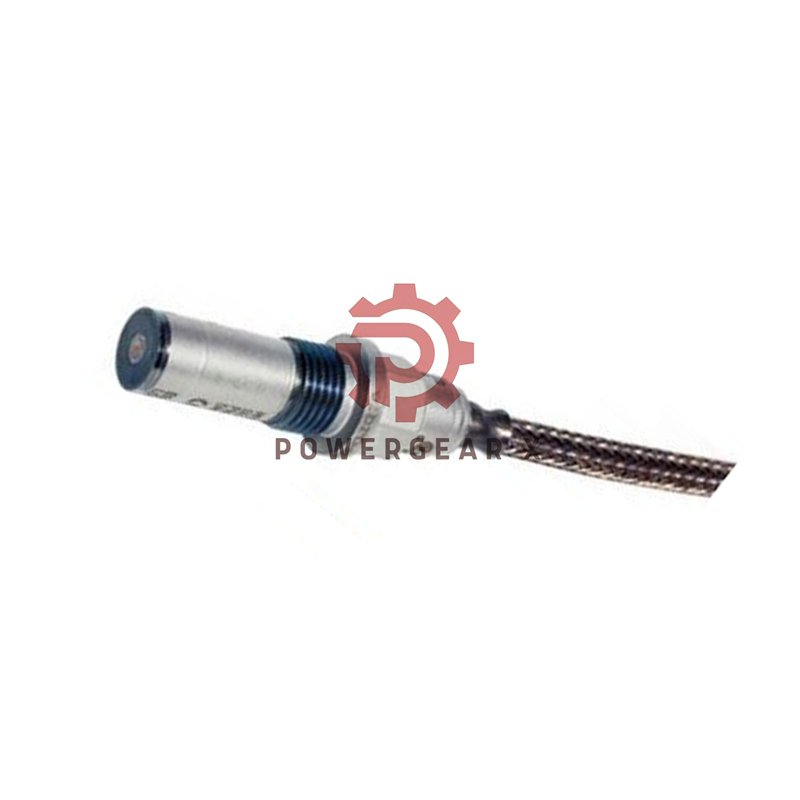

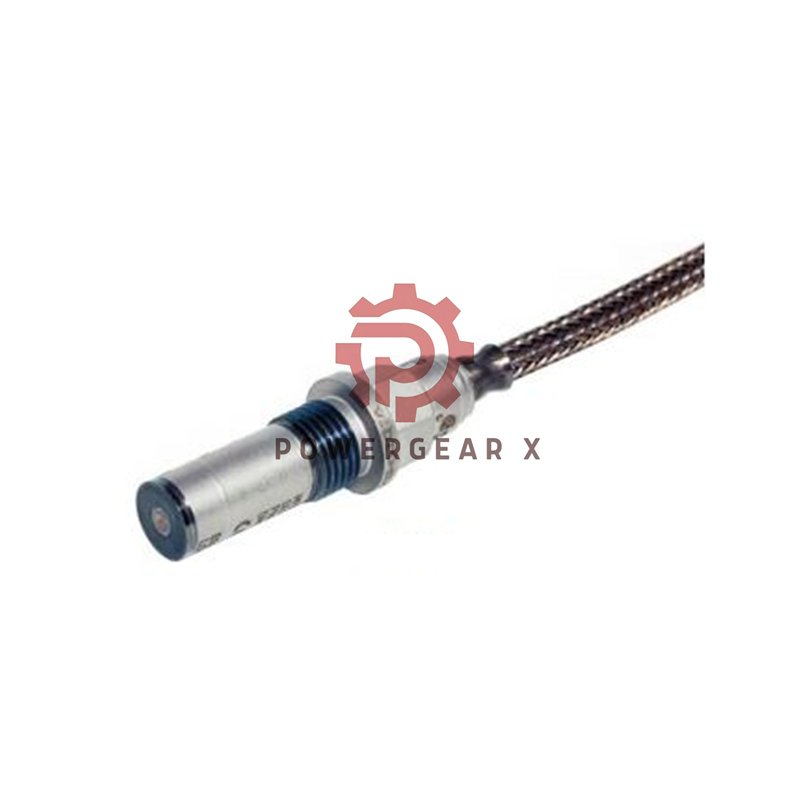

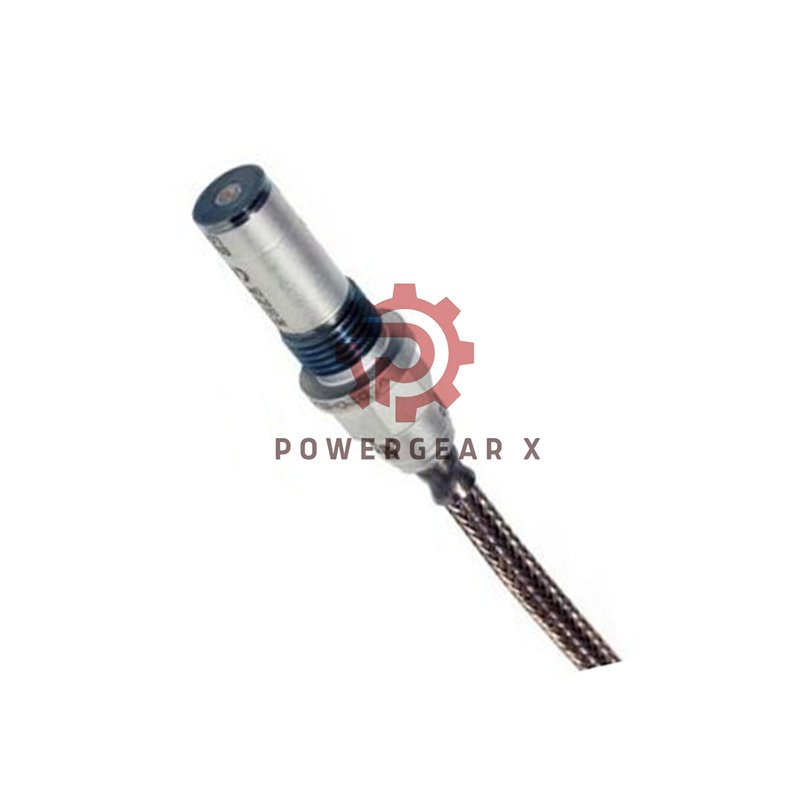

143-216-000-051 Vibro-Meter CP 216 Piezo Pressure Transducer High-Temp Sensor

Overview — Vibro‑Meter CP 216

The Vibro‑Meter CP 216 is a compact piezoelectric pressure sensor for high-temperature and high-pressure monitoring in turbines and harsh environments.

Main Features

• Sensitivity: 200 pC/bar
• Range: 0.0005–250 bar
• Overload: 350 bar
• Frequency: 2–15 kHz
• Linearity: ±1%
• Acceleration Sensitivity: ≤0.5 pC/g
• Resonant Frequency: >80 kHz

Temperature & Environment

• Operating: −54 to 470°C
• Extreme: −70 to 520°C
• Connector Temp: up to 650°C
• Shock: <2000 g
• Material: NIMONIC® 90, hermetically sealed

Electrical Data

• Output: Two-pole charge signal
• Insulation: >10⁹ Ω
• Cable: MI twin-core, 25 g/m
• Calibration: 1 bar peak, 2 Hz factory set

Mechanical

• Weight: 12 g
• Cable Length: 3 m
• Connector: LEMO or high-temp type

Installation

• Mount on a clean, flat surface
• Keep cable away from sharp edges
• Use IPC 704 signal conditioner

Package Includes

• 1 × CP 216 transducer with MI cable
• 1 × Connector (LEMO or high-temp)
• 1 × Calibration sheet

Shipping

• Shipped via FedEx, UPS, or DHL
• Expedited delivery available on request

FAQ

• Which connectors are available?
  LEMO or high-temperature connectors.
• How to connect the sensor?
  Use a charge converter such as IPC 704.
• Is calibration included?
  Yes, factory calibration is provided.

Ordering Info

• Type: CP 216
  • Description: Piezo pressure transducer with LEMO connector
  • Cable: 3 m
  • Order No.: 143-216-000-051
