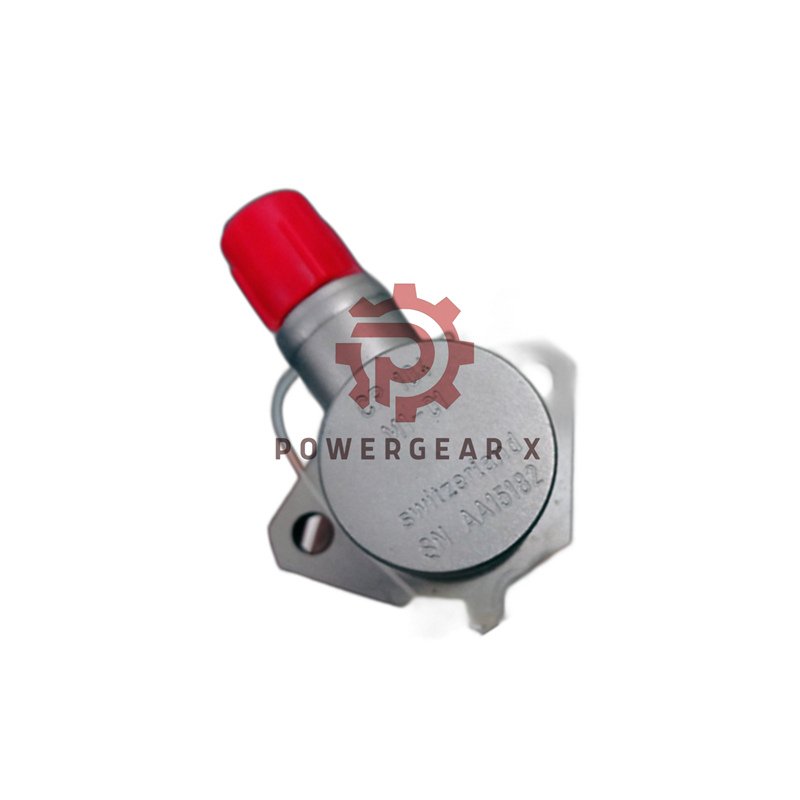

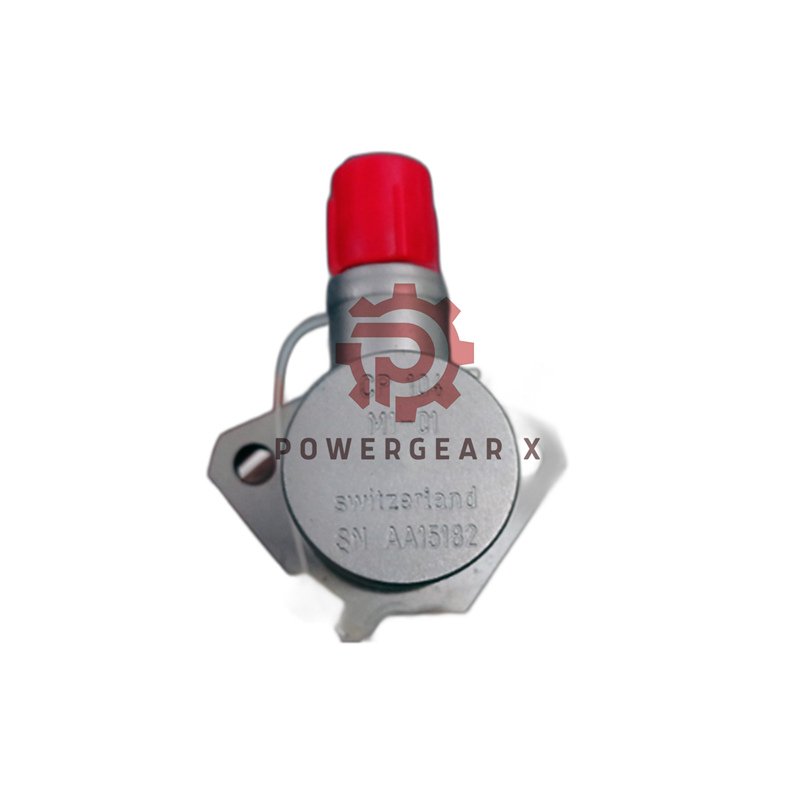

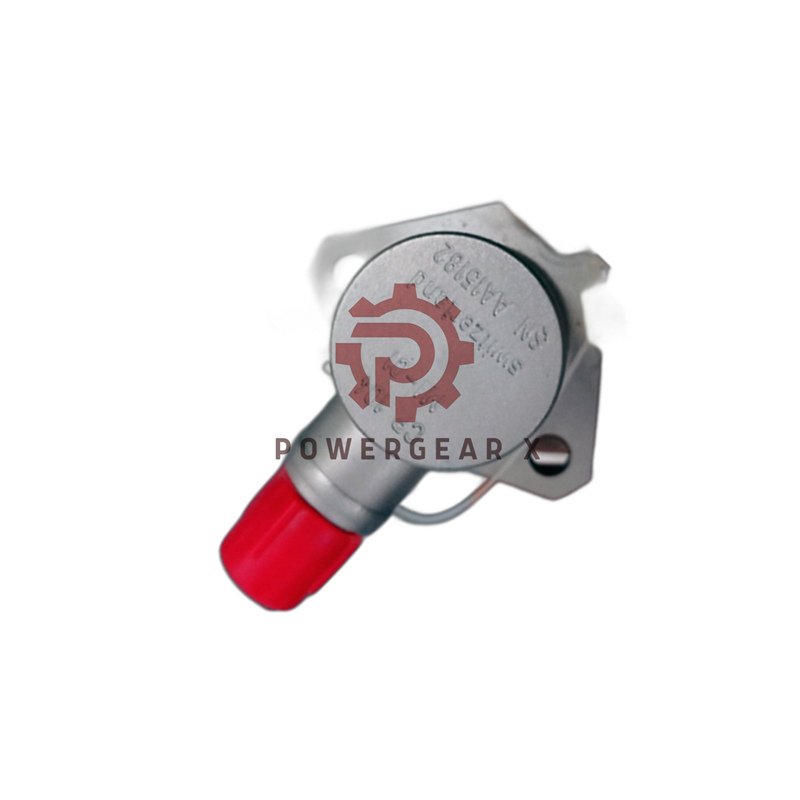

CP 104 Piezoelectric Pressure Transducer: Extreme Environment Performance
The CP 104 piezoelectric pressure transducer delivers exceptional stability for demanding applications. It uses advanced VC2 single crystal technology for reliable performance. This transducer works in extreme temperatures from cryogenic to high heat. It is ideal for long-term monitoring and development testing. The design features acceleration compensation for accurate readings.
Critical Performance Features
- Wide Temperature Range: Operates from -196°C to +350°C
- High Sensitivity: 190 pC/bar output at 2 Hz
- Broad Frequency Response: 2 Hz to 6000 Hz ±5%
- Acceleration Compensated: ≤0.0005 bar/g acceleration sensitivity
- Robust Construction: Hermetically welded Inconel 600 housing
- Radiation Resistant: No effect from gamma or neutron flux
Technical Specifications
- Pressure Range: 0.00005 bar to 20 bar (dynamic)
- Overload Capacity: Handles spikes up to 100 bar
- Linearity: ±1% across full measuring range
- Resonant Frequency: Greater than 30 kHz
- Internal Insulation: Minimum 10^9 Ω at room temperature
- Capacitance Values: 85 pF pole/pole, 30 pF pole/ground
- Shock Resistance: 2000 g peak (1 ms half sine)
- Weight: Only 150 grams
Environmental Capabilities
- Works in primary circuit of ABWR systems
- Meets IEEE 323-1974 standards for nuclear applications
- Hermetically sealed against corrosion and humidity
- No external power supply required for operation
- Uses standard charge converter for signal processing
- Compatible with both softline and hardline cables

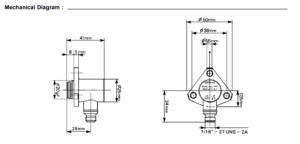

Installation & Mounting
- Simple installation with 3 x M5 Allen screws
- Fastening torque: 10 Nm for secure mounting
- Two-pole charge output system
- Factory calibrated at 1 bar peak and 2 Hz
- No field recalibration needed
- Ready for immediate use after installation
Ordering & Shipping Information
- Product Type: CP 104 Pressure Transducer
- Part Number: 143-104-000-101
- Configuration Options:
- Standard version with basic cable
- High-temperature hardline cable option
- Custom cable lengths available
- Warranty Coverage: 12 months warranty
- Shipping Methods: FedEx, UPS, DHL express delivery
