Product details

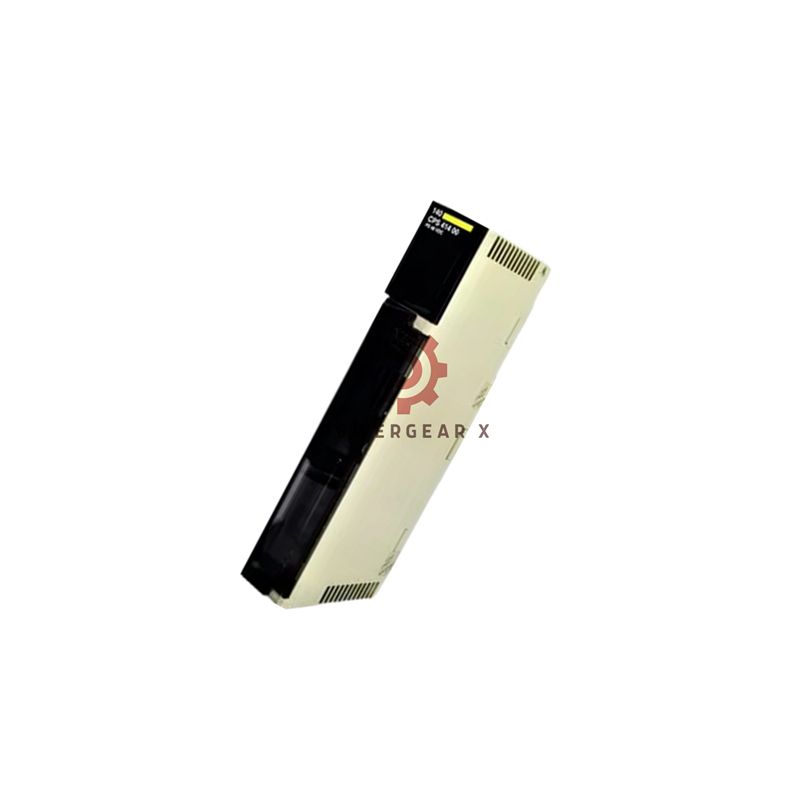

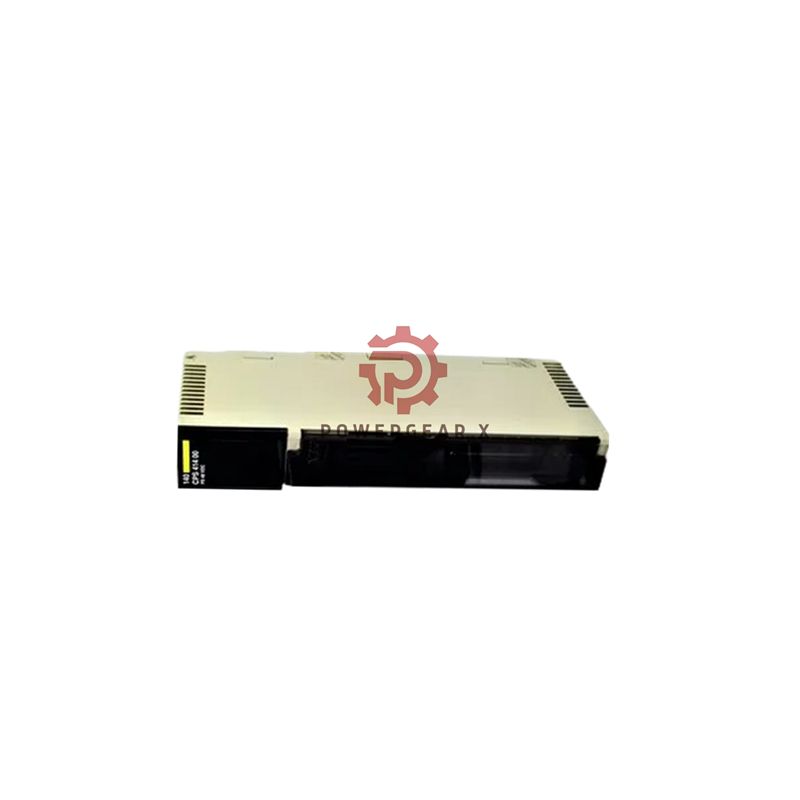

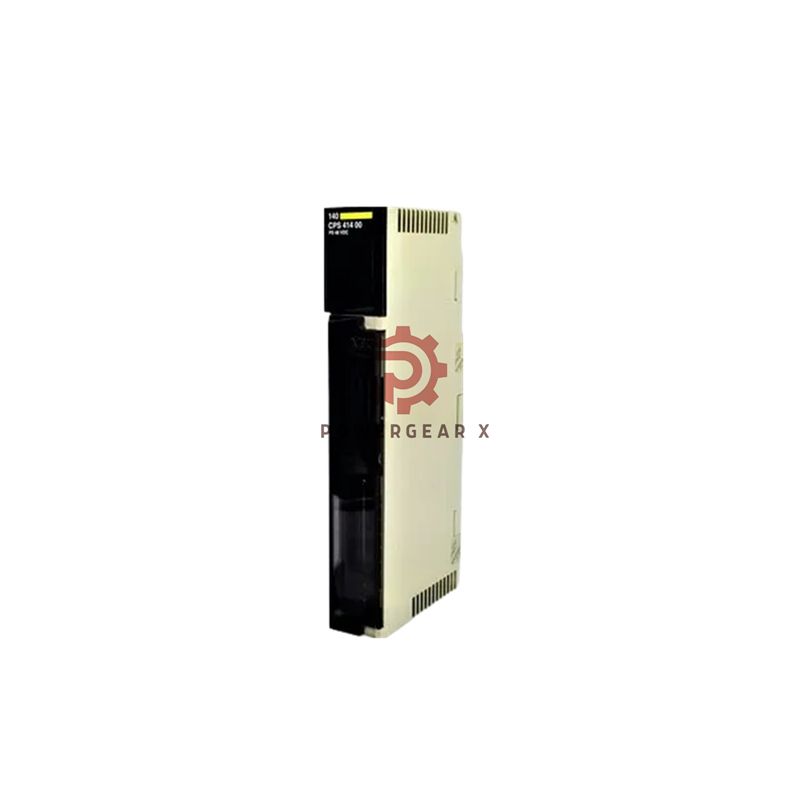

Schneider Electric 140CPS41400 – DC Input Summable Power
The 140CPS41400 summable power supply delivers reliable 5.1V DC power from 48-60V DC inputs. It supports parallel operation for higher current applications in Quantum systems.
Technical Specifications
- Brand: Schneider Electric
- Model: 140CPS41400
- Product Line: Modicon Quantum
- Type: Summable DC Power Supply
- Input Voltage: 48-60V DC (42-66V range)
- Input Current: 3800 mA maximum
- Output Voltage: 5.1V DC ±0.5%
- Output Current: 8A summable configuration
- Power Dissipation: 15.6W typical
- Efficiency: >90% at nominal load
- Ripple & Noise: <40 mV peak-to-peak
- Hold-up Time: 13 ms at 48V input
- Inrush Current: 14A at 40V
- Alarm Contact: 1 NC, 6A 220V fault signal
- Fuse Rating: 2A time-lag
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Safety Standards: UL 508, CSA C22.2 No 142
- Certifications: cUL recognized
- Warranty: 12 months against defects
Protection & Monitoring
- Output overvoltage protection
- Output overload protection
- Input undervoltage lockout
- Thermal shutdown protection
- Fault alarm relay contact
- Green LED power status indicator
Packaging & Shipping
- Package Type: Individual unit (PCE)
- Dimensions: 12.28″ × 6.42″ × 1.77″
- Weight: 28.7 oz (815 g)
- Shipping Methods: FedEx, UPS, DHL Express
- Delivery Time: 3-7 business days worldwide
Frequently Asked Questions
- What does “summable” mean for this power supply?
Multiple units can be connected in parallel to increase total output current capacity. - What type of input power does it require?
It operates from 48-60V DC input, typical for industrial DC systems. - How is a power failure detected?
A normally-closed alarm contact opens when a fault occurs, signaling the system. - What safety certifications does it have?
It is cUL recognized and meets UL 508 and CSA C22.2 No 142 standards. - Can it handle input voltage interruptions?
Yes, it maintains output for up to 13ms during input power interruptions.
