Product details
Product Status Notice

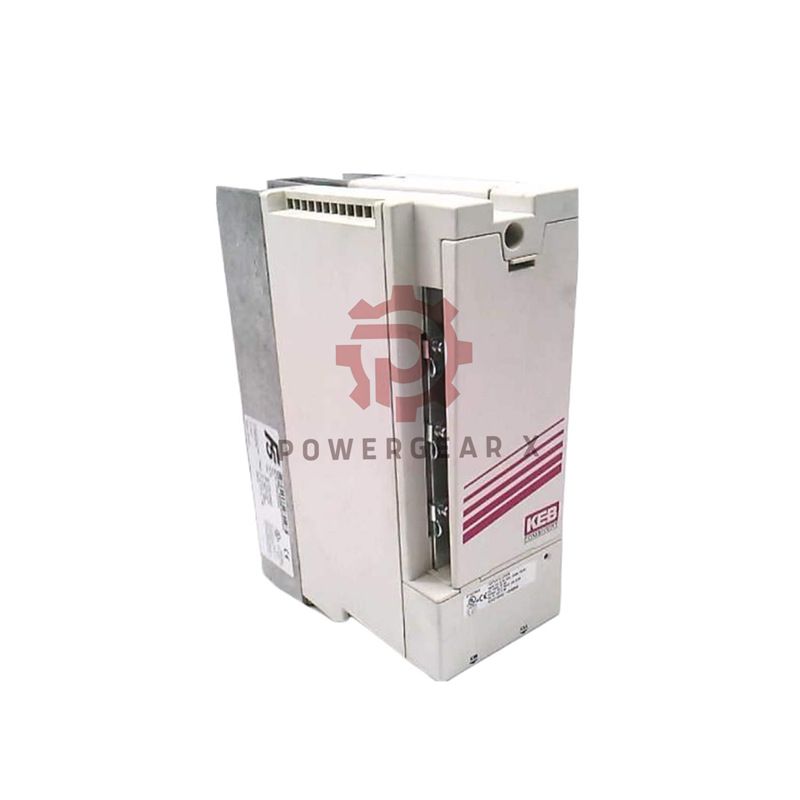

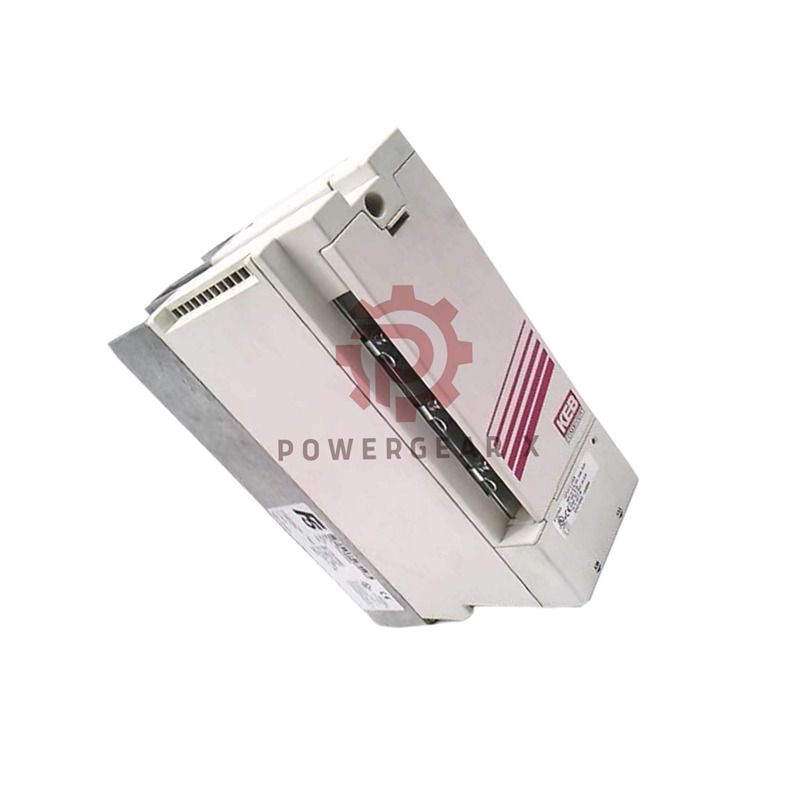

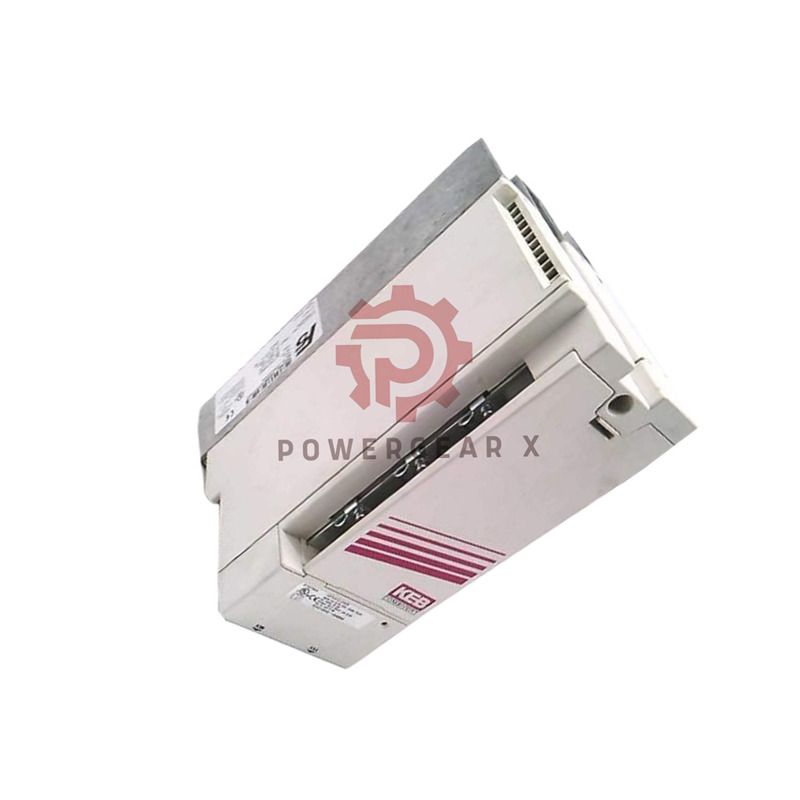

Please note: The KEB 12F5A1D-3A0A drive has been discontinued by the manufacturer. This page provides reference information for existing users or for sourcing remaining stock. Author: Powergear X Automation.
Key Specifications At A Glance
- Model: KEB 12F5A1D-3A0A
- Series: F5 Combivert Axis Drive
- Status: Discontinued
- Output Power: 4 Kilowatts (KW) / 6.6 KVA
- Voltage: 400 VAC, 3-Phase
- Current: 13.3 / 10.6 Amps
- Switching Frequency: 8 kHz
- Control Type: PID (Proportional-Integral-Derivative)
- Communication: RS485 Modbus RTU
- Display: 4-digit LED
- Power Supply: 24V DC
- Efficiency: Up to 98%
Extended Technical Details & Features
- Advanced Control: Dedicated PID control for precise process regulation.
- Sensor Flexibility: Accepts Thermocouple and RTD inputs directly.
- High Resolution: Temperature control resolution of 0.1°C.
- Broad Range: Supports processes from -50°C to +150°C.
- Dual Outputs: Provides both Relay and 4-20 mA analog output signals.
- Robust Cooling: Maximum heatsink temperature of 90°C (194°F).
- Mounting: Designed for standard panel mounting.
- Network Ready: Modbus RTU protocol for easy system integration.
Support, Warranty & Shipping
- Legacy Support: Technical documentation and support advice available.
- Warranty on Stock: Remaining units come with a 12-month warranty.
- Global Shipping: We ship worldwide via FedEx, UPS, and DHL.
- Secure Packaging: Each unit is packed to prevent damage in transit.
Expert FAQs for the 12F5A1D-3A0A
- What was a typical application for this drive?
It was commonly used in applications requiring precise temperature control, such as in small ovens, environmental chambers, or specialized packaging machinery where speed and temperature are linked.
- This model is discontinued. What are my options?
Contact us with your application requirements. We can help identify a current equivalent model from KEB or a compatible drive from another quality manufacturer.
- How should I handle installation for a panel-mounted drive?
Ensure adequate space around the drive for airflow. Follow the specified torque settings for power terminals. Proper grounding is critical for stable operation and noise immunity.
- The drive faults frequently. What should I check first?
First, verify the sensor (RTD/thermocouple) wiring and health. Then, check the PID tuning parameters. Overly aggressive gains can cause oscillation and faults.
- Can I still integrate this with a modern PLC using Modbus?
Yes. The Modbus RTU protocol is widely supported. You will need the specific register map for the 12F5A1D-3A0A to read temperature and status or write setpoints.
Contact Us for Support or Alternatives
- Need a replacement for the KEB 12F5A1D-3A0A or have technical questions?
- Email: sales@powergearx.com
- Phone/WhatsApp: +86 18030005825
