Understanding Proximity Probe Technology

Proximity probes like the Bently Nevada 3300 XL 8 mm system are crucial for industrial automation. They use eddy current technology to measure both static position and dynamic vibration on rotating machinery. This allows for proactive condition monitoring, preventing costly failures in equipment like turbines, pumps, and compressors. The system consists of three parts: a probe, an extension cable, and a Proximitor sensor. They work together to provide a linear voltage output that directly corresponds to the distance between the probe tip and the target.

Physical Damage and Installation Mistakes

One of the most frequent failure modes involves physical damage. Mishandling the probe, extension cable, or sensor during installation or maintenance can lead to issues. For example, a sharp bend in the cable can break the internal coaxial wire. Similarly, if you do not properly secure the probe, it may shift, causing a false reading or even contacting the shaft. We have seen this happen often during routine maintenance. Therefore, always handle these components with care and follow manufacturer installation guidelines precisely. Properly secure all cables and probes to avoid movement or contact with moving parts.

Environmental and Temperature-Related Issues

Proximity probes operate within specific environmental parameters. High temperatures, corrosive atmospheres, or excessive moisture can seriously degrade their performance. Over time, heat can damage the cable insulation, leading to short circuits. Moreover, moisture can enter the connector points, causing signal interference or complete failure. While the 3300 XL system is robust, it is not impervious to these conditions. You should choose the correct probe type for your application. For example, use an extended temperature range (ETR) probe in high-heat environments to ensure long-term reliability.

Improper System Matching and Calibration

The 3300 XL system is known for its interchangeability. However, you must use components with consistent electrical lengths. A common mistake is mixing components from different manufacturers or using mismatched cable lengths. This creates a “Frankenstein” system, causing non-linear output and inaccurate readings. Moreover, it can violate certifications like the API 670 standard. You should always check the total electrical length of the probe and extension cable to ensure it matches the Proximitor sensor’s calibration. This simple step prevents major issues in your monitoring system.

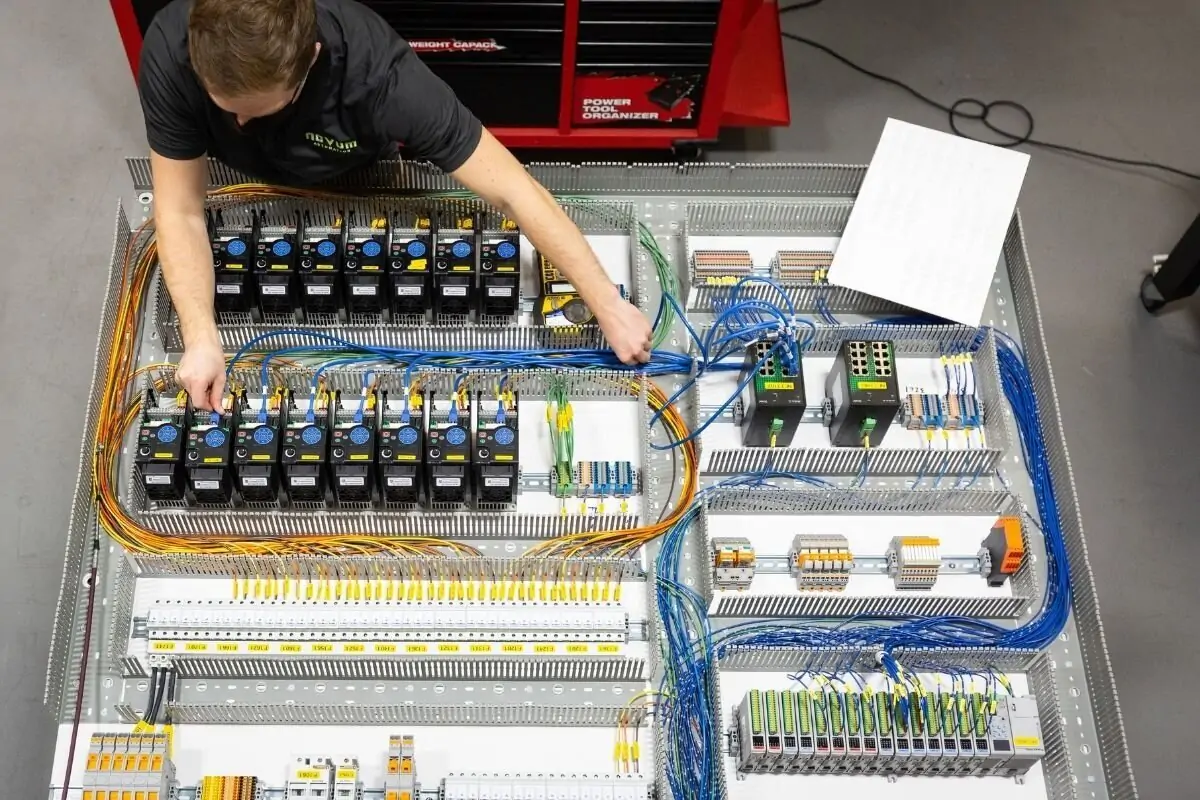

Electrical Interference and Cabling Faults

Electrical noise and poor cabling practices can also lead to failure. Sources of noise include nearby variable frequency drives (VFDs) or power cables. While the 3300 XL Proximitor sensor has high immunity to radio frequency interference (RFI), poor grounding or unshielded cables can still introduce errors. An intermittent connection at the connector can cause a temporary signal loss, which may result in a false alarm or trip. To avoid this, always use proper shielded cabling and ground the system correctly. A simple ohm check of the cable can often diagnose these issues before they become critical.

My Personal Take: A Holistic Approach to Reliability

In my experience working with control systems, I find that many problems with probes stem from a lack of attention to detail during the design and commissioning phases. We cannot just install these sensors and forget about them. Reliability comes from a holistic approach. It requires a solid understanding of the technology, careful installation, and regular preventative maintenance. A good factory automation strategy includes routine checks of all sensor components. This proactive approach saves thousands of dollars in unplanned downtime and repair costs.

Application Scenarios and Solutions

Consider a scenario in a large petrochemical plant. A pump’s vibration monitoring system, tied to a DCS (Distributed Control System), begins to show erratic readings. A quick check reveals a damaged probe cable. The high-heat environment caused the insulation to degrade. The solution? We replace the standard probe with an ETR version. This ensures the system remains reliable under harsh conditions. For similar challenges, Powergear X Automation Limited offers a range of high-quality industrial automation products and solutions.
