Yokogawa SDV541-S63 16-Channel Digital Output Module | 24V DC

Yokogawa SDV541-S63 16-Channel Digital Output Module

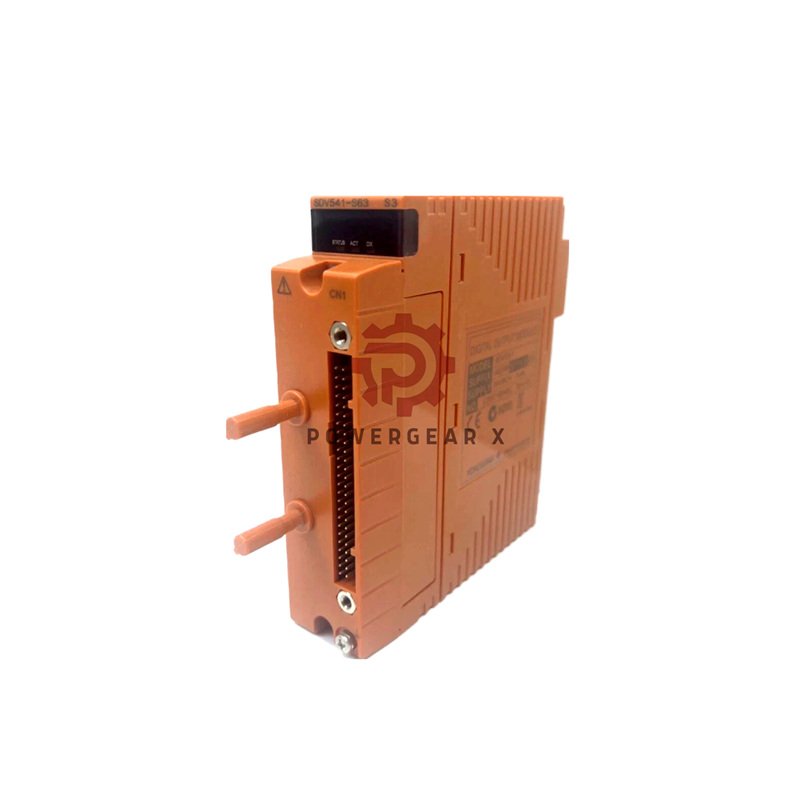

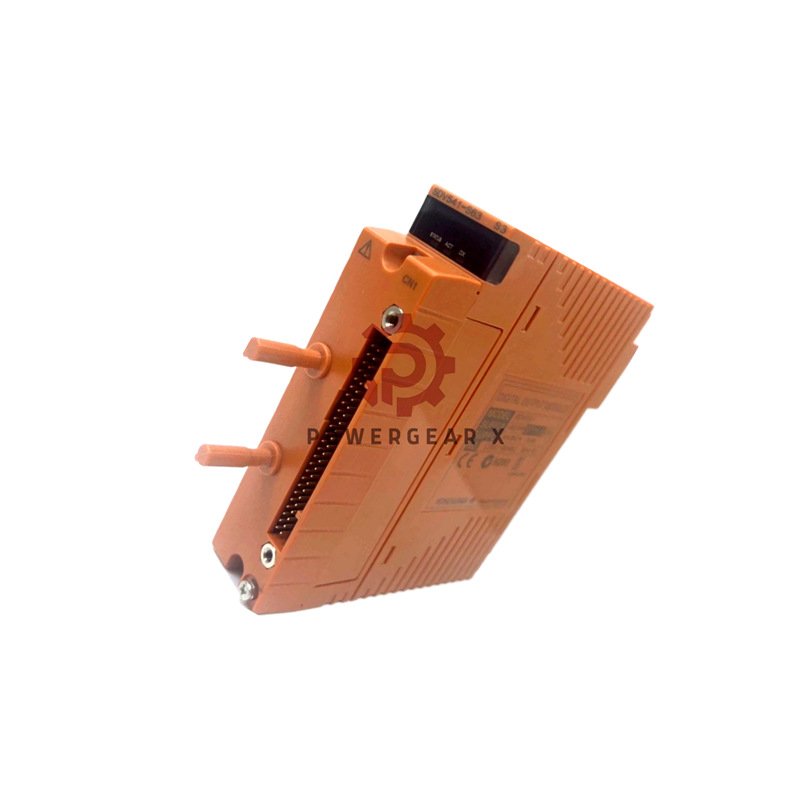

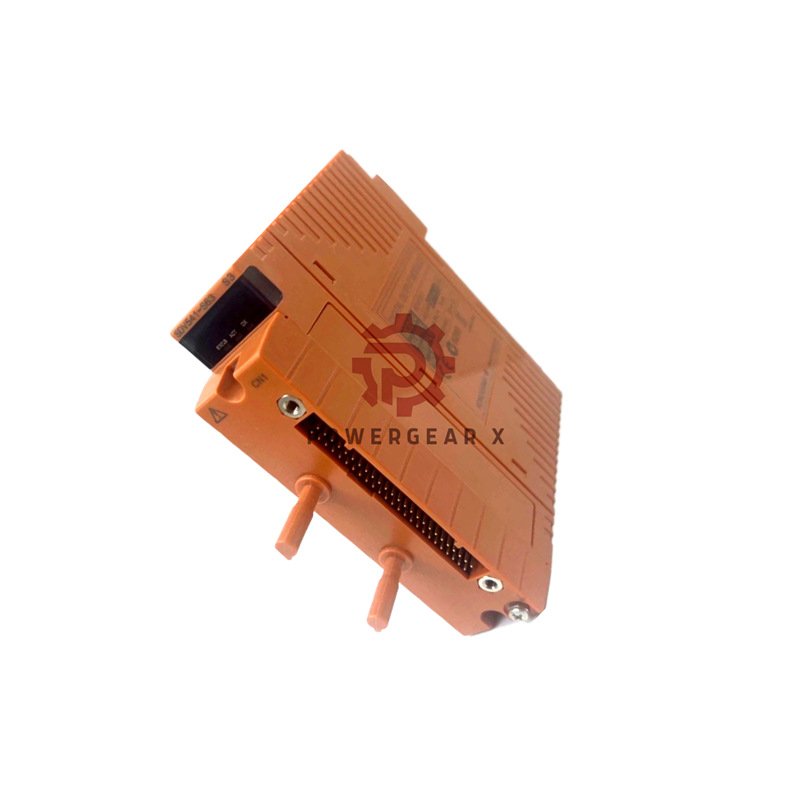

The Yokogawa SDV541-S63 Digital Output Module delivers stable 24V DC output across 16 channels.
It supports isolated circuits, ensuring reliable signal transmission in industrial automation.
Built for harsh conditions under ISA G3 standard, this lightweight 0.3 kg module fits compact control cabinets perfectly.
For inquiries, contact sales@powergearx.com or message us via WhatsApp at
+86 18030005825.

Key Highlights

• 16-channel isolated 24V DC digital output for stable control
• Compact and lightweight design — 0.3 kg average weight
• Operates in wide temperature range from -20°C to 70°C
• Fast output response — 30 ms maximum
• Compliant with ISA Standard G3 for harsh industrial environments
• 12-month factory warranty included

Suffix & Option Structure

• Suffix Code 1: S = Standard Type
• Suffix Code 2: 6 = With signal cable interface adapter, no explosion protection
• Suffix Code 3: 3 = ISA Standard G3, -20°C to 70°C operation

Technical Specifications

• Model: SDV541-S63
• Manufacturer: Yokogawa
• Output Type: 16-channel isolated digital output
• Output Voltage: 24 V DC ±20% / -10%
• External Power: 24 V DC, minimum 3.4 A
• Current Capacity: 0.2 A per channel, 3.2 A total
• Leak Current (Off): 1.6 mA maximum
• Output Format: Current source
• Voltage Drop: 1 V maximum per output
• Load Resistance: 120–685 Ω
• Current Consumption: 300 mA (5V DC), 150 mA (24V DC)
• Withstand Voltage: 2 kV AC between output lines and system (1 minute)
• Response Time: 30 ms maximum
• External Connection: Pressure clamp terminal / MIL cable / Dedicated signal cable (AKB331, AKB651)

Performance Advantages

• Fast 30 ms switching for precise control loops
• Module isolation minimizes interference and improves safety
• Wide temperature tolerance ensures stability under extreme environments
• Low voltage drop (1V max) improves efficiency
• Durable G3 coating resists moisture, dust, and corrosion
• Compact form factor simplifies dense cabinet integration

Package Contents

• 1 × Yokogawa SDV541-S63 Digital Output Module
• 1 × Signal Cable Interface Adapter (Suffix 6 option)
• 1 × Pressure clamp terminal block set
• Installation and configuration guide
• Ships securely via FedEx,
  UPS, or
  DHL

FAQ

• Q: What is the main function of the SDV541-S63 module?
• A: It outputs digital signals to control field devices in 24V DC systems.
• Q: Can this module operate in extreme temperatures?
• A: Yes, it functions reliably between -20°C and 70°C under the G3 standard.
• Q: How many amps can each channel handle?
• A: Each output supports up to 0.2 A, with a total of 3.2 A combined.
• Q: What cable connection options are available?
• A: You can use pressure clamp terminals, MIL cables, or dedicated cables like AKB331 or AKB651.
• Q: Is the SDV541-S63 suitable for high-vibration environments?
• A: Yes, its rugged design and ISA G3 compliance make it reliable in tough conditions.

For orders and technical support, reach us at
sales@powergearx.com or via WhatsApp at
+86 18030005825.
