Product details

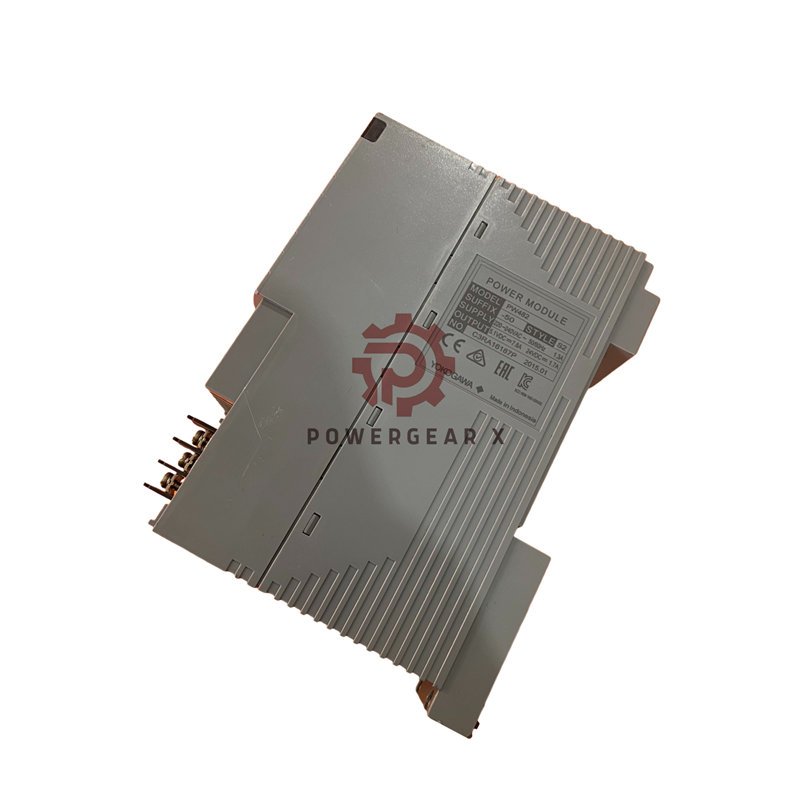

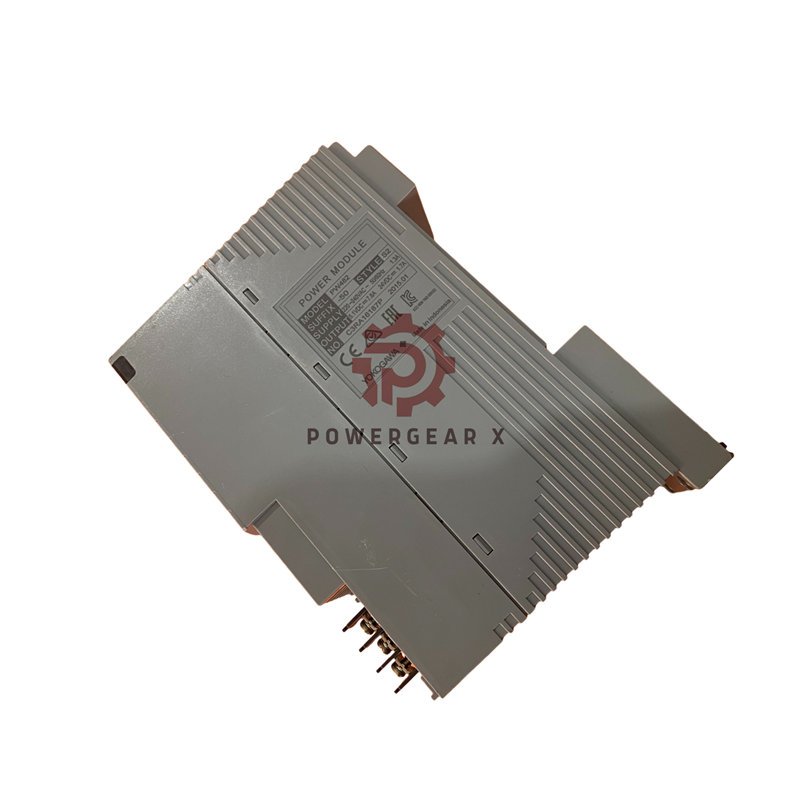

Yokogawa PW482-50 Power Supply Module
The Yokogawa PW482-50 delivers stable 220–240V AC power for automation systems. Compact, efficient, and durable, it performs well under extreme temperatures. Every unit comes factory-packed and includes a 12-month warranty.
Essential Information
- Manufacturer: Yokogawa
- Product No.: PW482-50
- Type: Power Supply Module
- Condition: New & Original
- Warranty: 12 Months
- Delivery: FedEx / UPS / DHL
Suffix Code Tree
- Model: PW482
- 5 = Standard type (no explosion protection)
- 0 = Basic type
Main Technical Data
- Input Voltage: 220–240 V AC ±10%
- Frequency: 50/60 Hz ±3 Hz
- Max Power Consumption: 230 VA
- Operating Temperature: -20°C to +70°C
- Weight: Approx. 1 kg
- I/O Interface: Exclusive connector
Additional Technical Highlights
- Input Surge Tolerance: Up to 270 V AC for 5 seconds
- Output Ripple: Less than 50 mV RMS
- Efficiency: ≥88% at full load
- Insulation Resistance: ≥100 MΩ at 500 V DC
- Cooling: Natural air convection, fanless design
- Noise Level: Under 35 dB in operation
- Storage Temperature: -40°C to +85°C
- Vibration Resistance: 5–57 Hz, 0.075 mm amplitude
- Shock Resistance: 300 m/s², 11 ms
Product Advantages
- Reliable power for critical automation equipment
- Wide operating temperature from -20°C to +70°C
- Compact and light (1 kg) for easy mounting
- High efficiency for lower energy costs
- Low noise and long service life
Application Areas
- Factory automation and process control
- Power plants and substations
- Marine and oil & gas monitoring systems
- Building automation control cabinets
Shipping & Service
- Worldwide express by FedEx, UPS, or DHL
- Factory-sealed packing for safe delivery
- Technical support and warranty within 12 months
FAQ
- Q: What voltage does the PW482-50 support?
A: It accepts 220–240 V AC input with ±10% tolerance. - Q: Can it operate in hot or cold environments?
A: Yes, it runs from -20°C to +70°C without derating. - Q: Is it suitable for continuous industrial use?
A: Yes, it’s built for 24/7 operation in harsh conditions. - Q: Does it include explosion protection?
A: No, this model (suffix 5) is the standard non-explosion type. - Q: How can I order replacement units?
A: Contact us by email or WhatsApp for a quote and lead time.
