Overciew

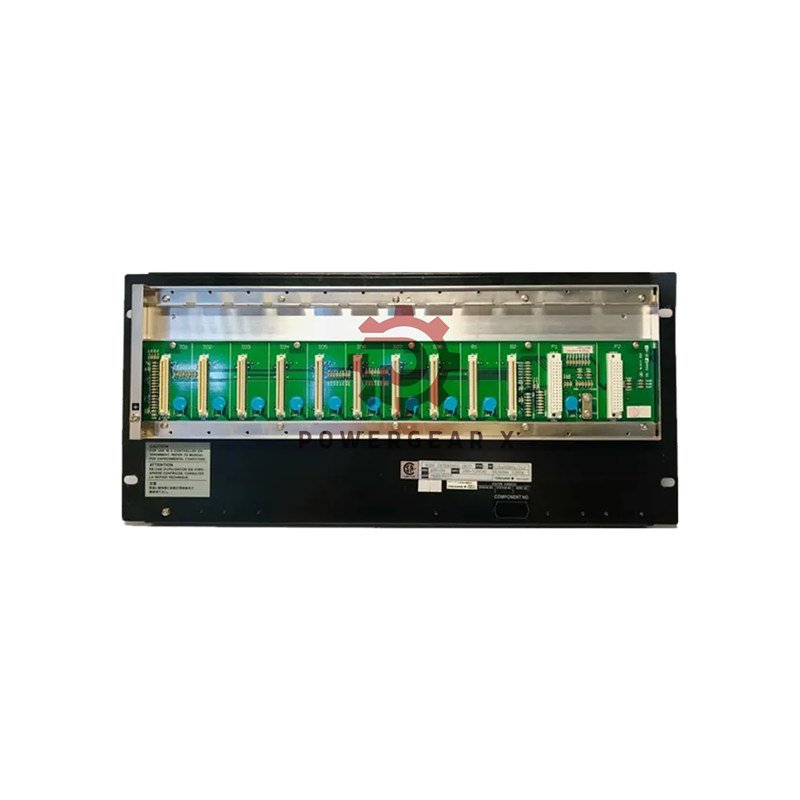

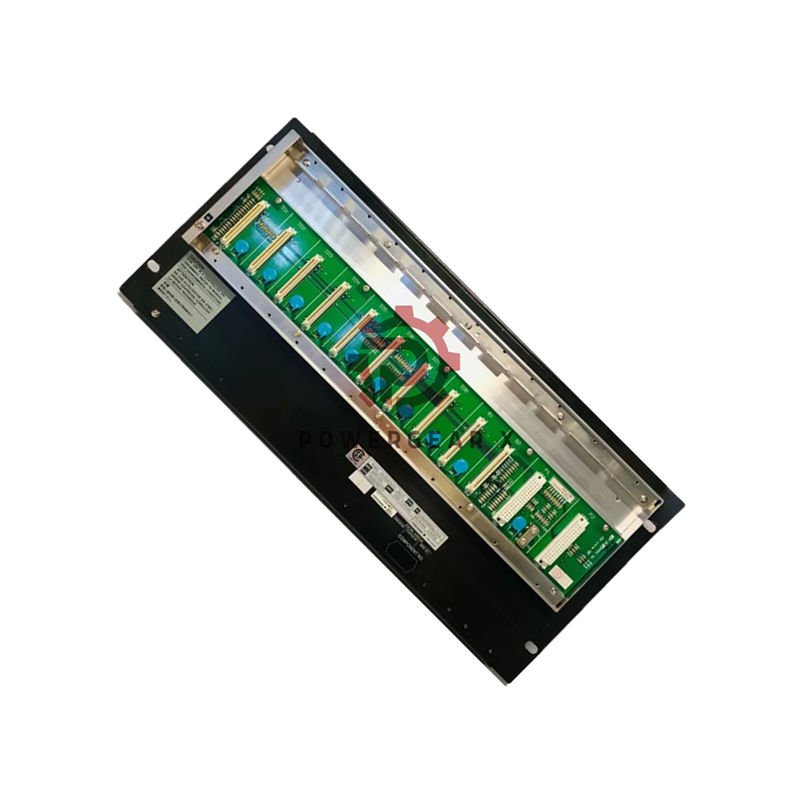

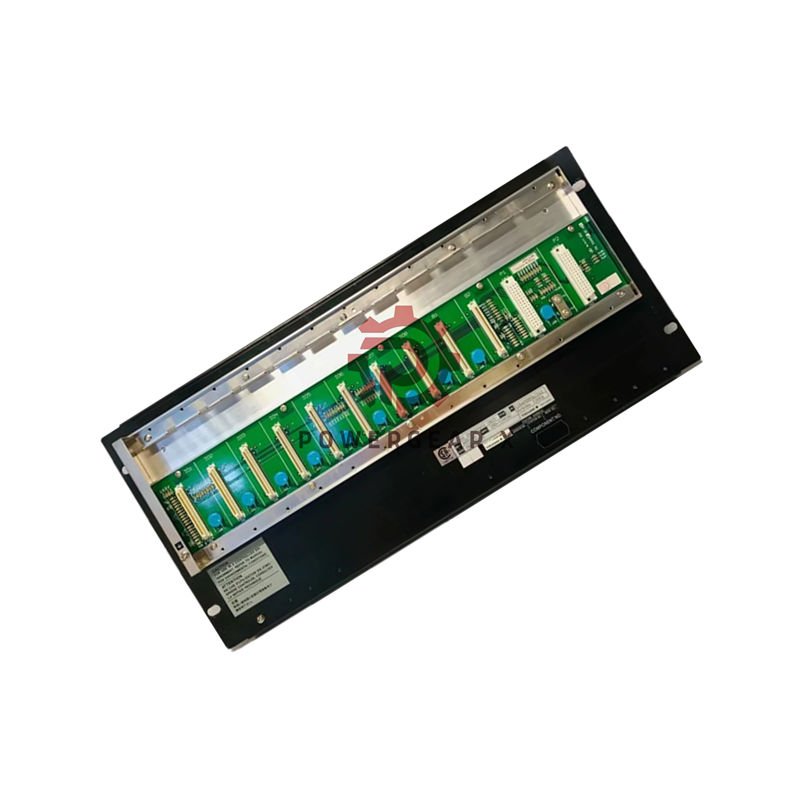

Yokogawa ANB10D-425/CU2T is a high-performance ESB Bus Node Unit designed for reliable industrial communication. It offers dual-redundant architecture, flexible power input, and compact 19-inch rack installation for control systems.
Technical Specifications
- Brand: Yokogawa
- Model: ANB10D-425/CU2T
- Product Type: ESB Bus Node Unit
- Power Supply Options: 100–120 V AC, 220–240 V AC, or 24 V DC
- Power Consumption: 200 VA (100–120 V AC), 230 VA (220–240 V AC), 5.5 A (24 V DC)
- Weight: Approx. 10 kg including 8 I/O modules
- Mounting: 19-inch rack mount with M5 screws and insulation bushings
- Frequency: 50/60 Hz
- Environment: High EMI resistance and stable performance in industrial sites
Suffix Information — Tree Structure
- ANB10D – Node Unit for Dual-Redundant ESB Bus
- -4 : Dual-redundant power supply
- 2 : 220–240 V AC power input
- 5 : Basic type without explosion protection
- /CU2T : Connector Unit with Terminator for ESB Bus
Installation Guidelines
- Mount securely in a 19-inch rack using M5 x 4 screws.
- Ensure proper grounding and ventilation for continuous operation.
- Separate power and signal cabling to reduce electromagnetic interference.
- Use provided insulation bushings for secure electrical isolation.
Packaging List
- ANB10D-425/CU2T Main Unit
- Connector Unit with Terminator
- Insulation Bushings and Mounting Screws
- Installation Manual and Packing Foam
Shipping & Delivery
- Ships via FedEx, UPS, or DHL worldwide with secure packaging.
- Express delivery available upon request for urgent orders.
- All shipments include tracking information and export documentation.
FAQ
- Q: What power supplies are supported?
A: The ANB10D-425/CU2T supports 100–120 V AC, 220–240 V AC, and 24 V DC. - Q: How can I identify suffix meanings?
A: Refer to suffix details: -4 (dual power), 2 (220–240 V), 5 (basic type), /CU2T (connector unit). - Q: Is the unit compatible with standard racks?
A: Yes, it fits standard 19-inch industrial rack mounting.
