Product details
Overview

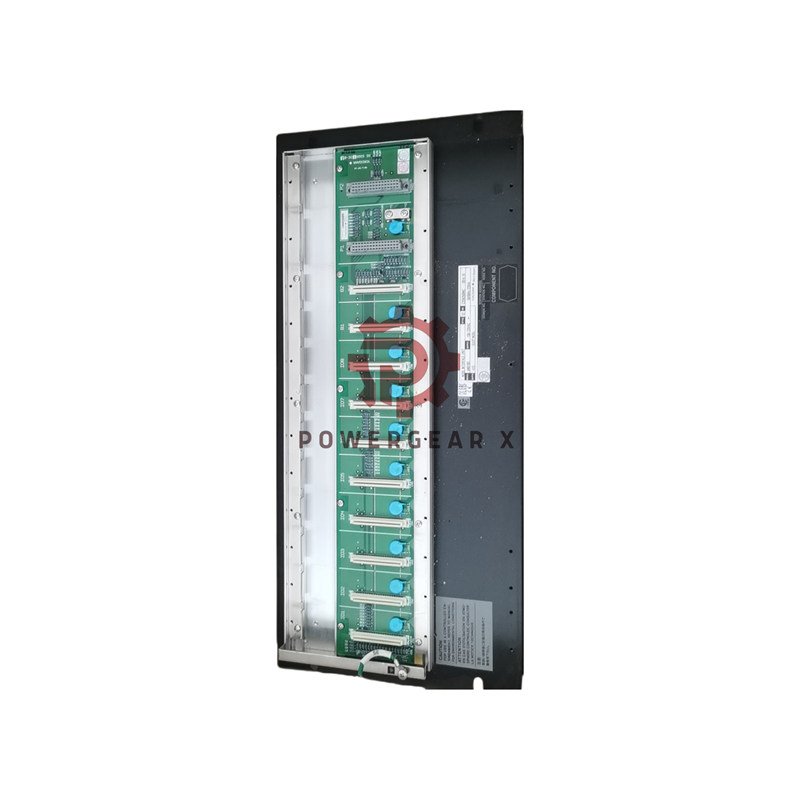

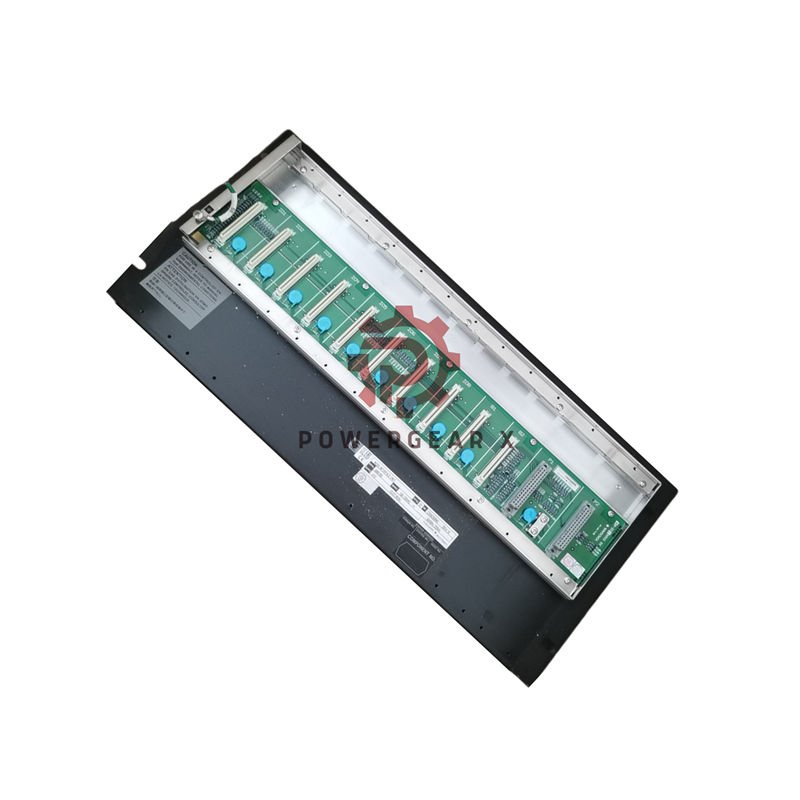

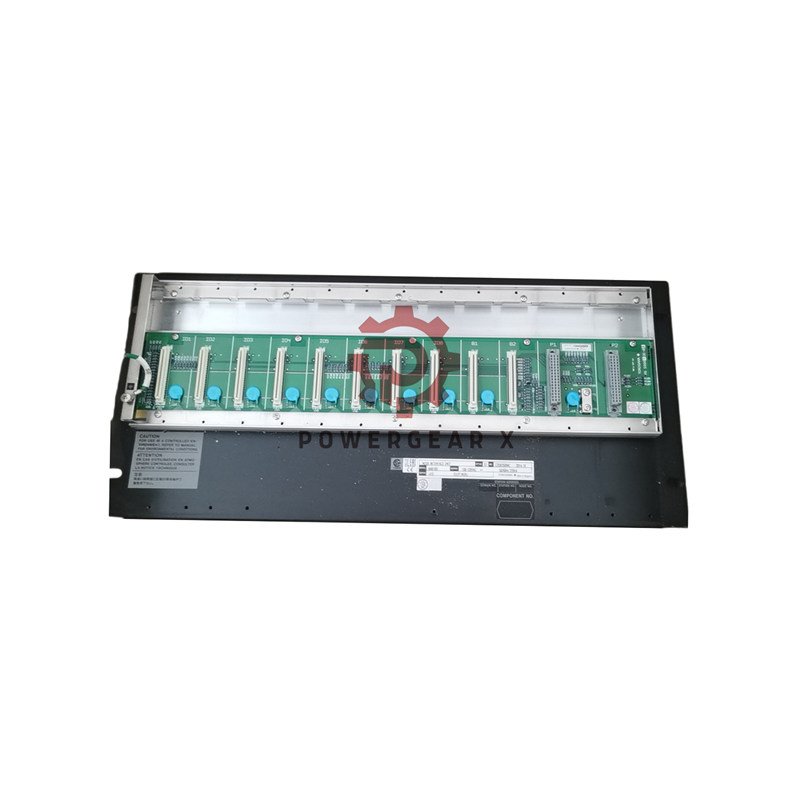

Yokogawa ANB10D-425/CU2N delivers a reliable and compact ESB Bus Node Unit designed for dual-redundant operation in industrial automation systems. It ensures high availability, flexible power options, and simple rack integration.
Technical Specifications
- Manufacturer: Yokogawa
- Product Model: ANB10D-425/CU2N
- Product Type: ESB Bus Node Unit
- Power Supply Options: 100–120 V AC, 220–240 V AC, or 24 V DC
- Power Consumption: 100–120 V AC: 200 VA / 120 W
- Power Consumption: 220–240 V AC: 230 VA / 120 W
- DC Consumption: 24 V DC: 5.5 A
- Weight: Approx. 10 kg (including 8 I/O modules)
- Mounting: 19-inch rack mount with M5 × 4 screws
- Design Features: Built for industrial noise resistance and stable bus communication
Suffix & Option Tree
- Model Base: ANB10D
- -4 : Dual-redundant power supply
- 2 : 220–240 V AC power supply
- 5 : Basic type, no explosion protection
- Option:
- /CU2N : Connector Unit for ESB Bus
Installation & Mounting Guide
- Install in a standard 19-inch rack using the provided M5 screws and insulation bushings.
- Follow the redundant power connection sequence for suffix -4 configurations.
- Connect the ESB Bus using the /CU2N connector for quick field setup.
- Ensure sufficient ventilation to maintain thermal stability and long-term performance.
Packaging Contents
- Main Unit: Yokogawa ANB10D-425/CU2N ESB Bus Node Unit
- Accessories: M5 mounting screws and insulation bushings
- Documentation: Quick installation guide and wiring diagram
Shipping & Delivery Options
- Worldwide express delivery via FedEx, UPS, and DHL.
- Tracking and estimated delivery time provided after shipment.
FAQ
- How many I/O modules can this unit support?
- It supports up to eight I/O modules in a single rack configuration.
- What power sources can I use?
- You can use 100–120 V AC, 220–240 V AC, or 24 V DC depending on site requirements.
- Does this unit support redundancy?
- Yes. The -4 suffix version supports dual-redundant power input.
- Can I add a connector unit later?
- Yes, the /CU2N connector unit can be installed as an option.
Quick Technical Notes
- Follow grounding best practices to reduce EMI interference.
- Confirm power sequencing before enabling redundancy mode.
- Use Yokogawa’s wiring diagram for safe ESB bus connection.
