Product details

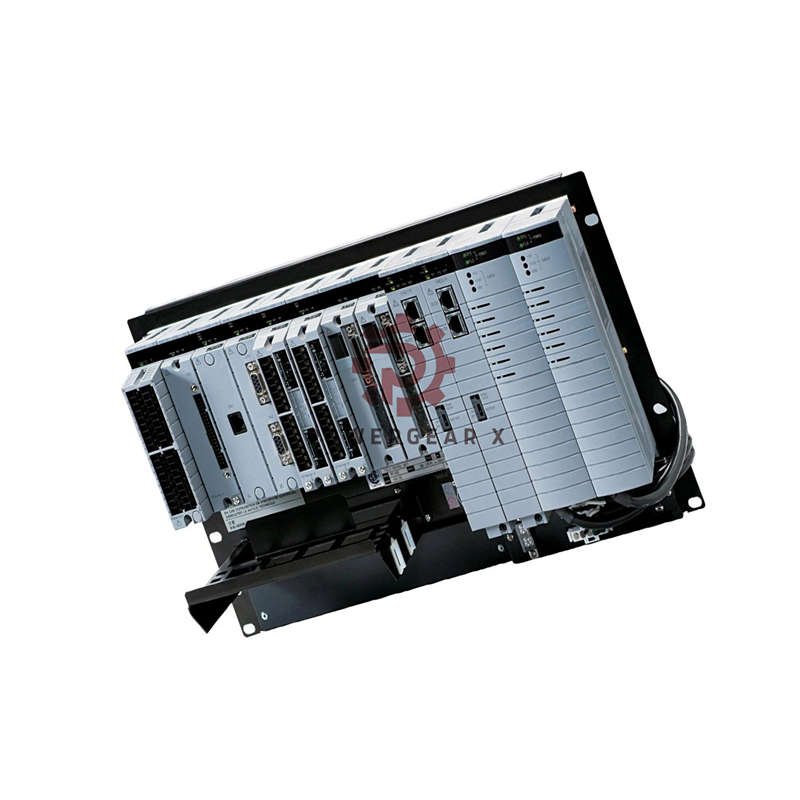

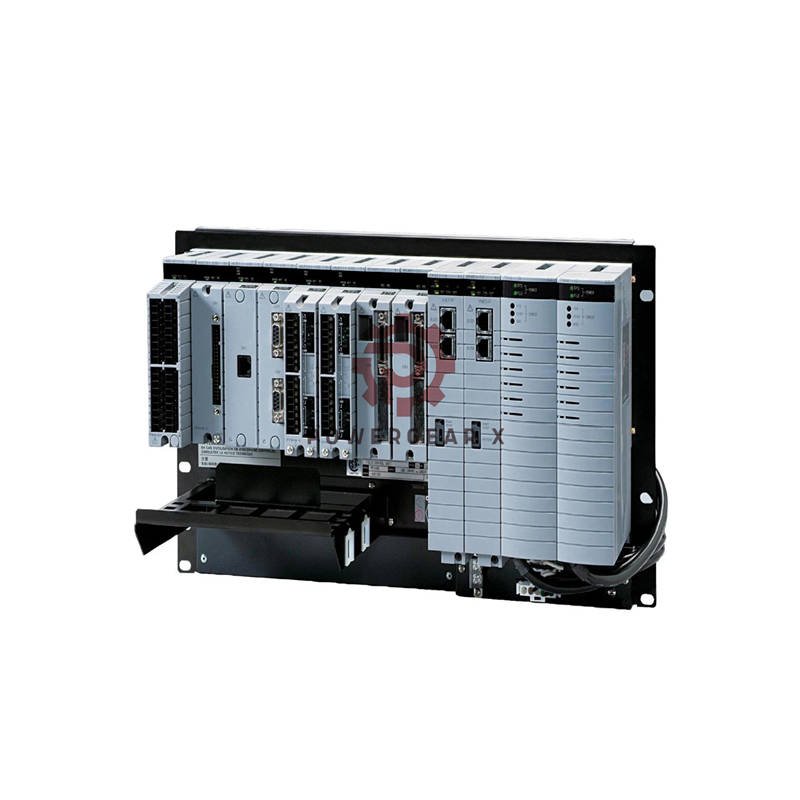

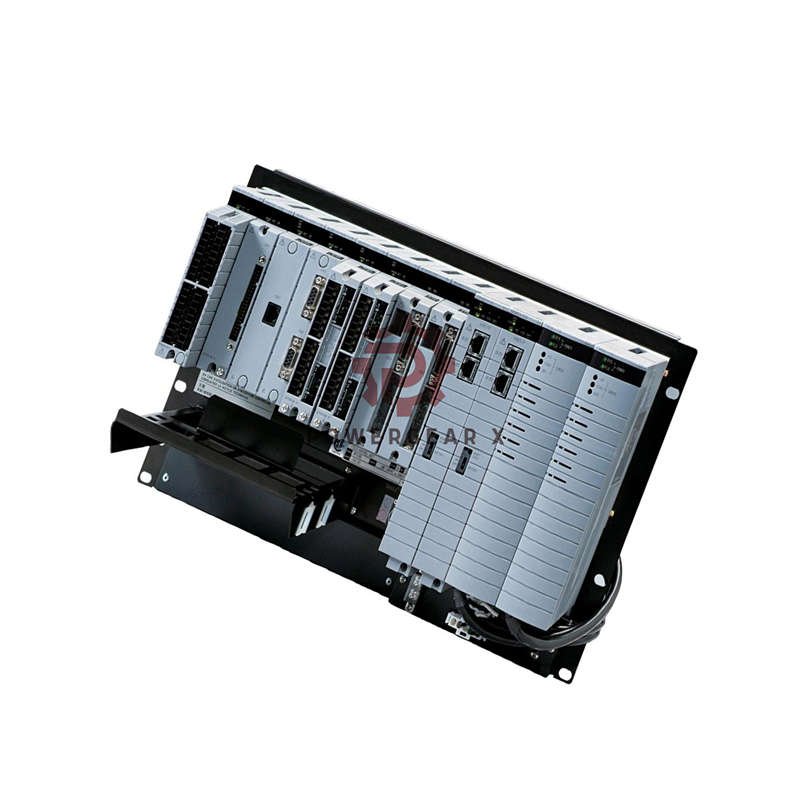

Yokogawa AGP813-S10 Turbomachinery I/O Module
Manufacturer: Yokogawa
Product No: AGP813-S10
Product Type: Turbomachinery I/O Module
Model: AGS813 = High-Speed Protection Module (Isolated)
Suffix Code Tree:
– -S: Standard Type
– 1: Always 1
– 0: Basic Type
Warranty: 12 Months
Voltage Inputs
- 4 high-speed isolated channels
- 6 basic-cycle isolated channels
- Input signal range: 1–5V
- Accuracy: ±4 mV
- Temp drift: ±4mV per 10°C
- Input impedance: 1MΩ powered / 100kΩ not powered
- Allowable voltage: 30V DC
- Filtering: Collective type
Digital Inputs
- 4 channels (high-speed) / 8 channels (basic)
- Rated voltage: 24V DC (Sink)
- Input ON: 18–26.4V DC / OFF: ≤5V DC
- Input current: 4.1 mA ±20%
- Max voltage: 30V DC
Digital Outputs
- 4 channels (high-speed) / 8 channels (basic)
- Output type: Current sinking
- Max load: 100 mA / channel, 30V DC
- On voltage: 0.3V DC / Leak current: 0.1mA
- Delay: 1 ms
- Scan cycle: 5 ms (HS) / 10 ms (basic)
Performance & Safety
- Withstand voltage: 500V AC for 1 min
- Connection: Dedicated cable (AKB337-M005/M007/M010)
- Power use: 900 mA (5V DC)
- Weight: Approx. 0.28 kg
Key Features
- Fast signal response for turbine safety
- Isolated input/output channels
- Compact and lightweight design
- High voltage endurance
- Stable under temperature variations
Shipping Options
- FedEx
- UPS
- DHL
Contact Information
Inquiries: sales@powergearx.com
WhatsApp: +86 18030005825
FAQ
- Q: What is the main use of the AGP813-S10 module?
- A: It monitors and protects turbomachinery systems in real time.
- Q: Does it support high-speed input channels?
- A: Yes, it supports 4 isolated high-speed channels.
- Q: What is the power consumption?
- A: Maximum 900 mA at 5V DC.
- Q: What is the operating voltage range?
- A: Rated at 24V DC, supports up to 30V DC.
- Q: What shipping options are available?
- A: We offer global delivery via FedEx, UPS, and DHL.
