Product details
Overview

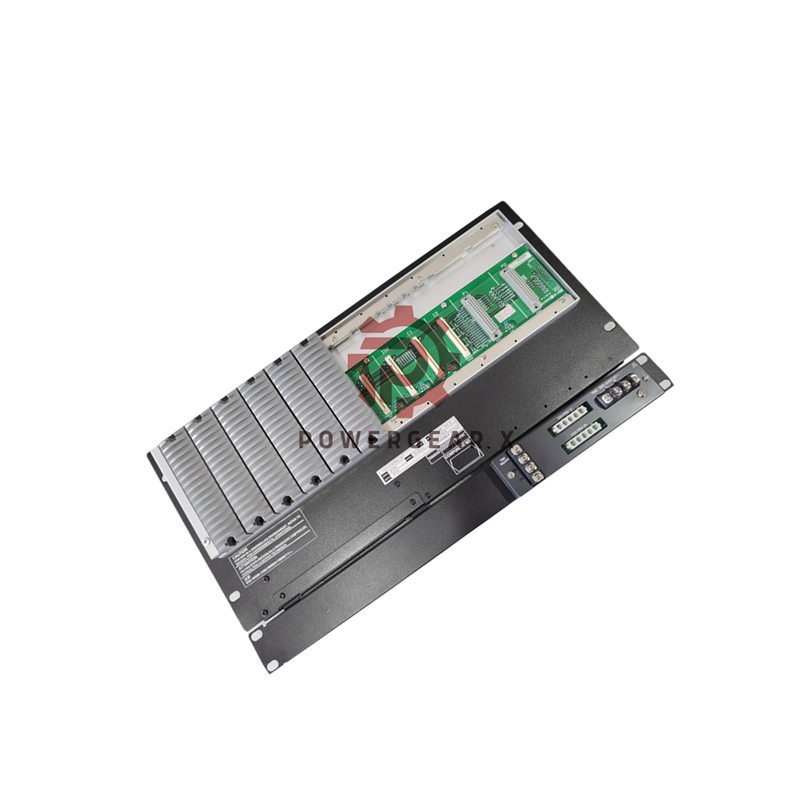

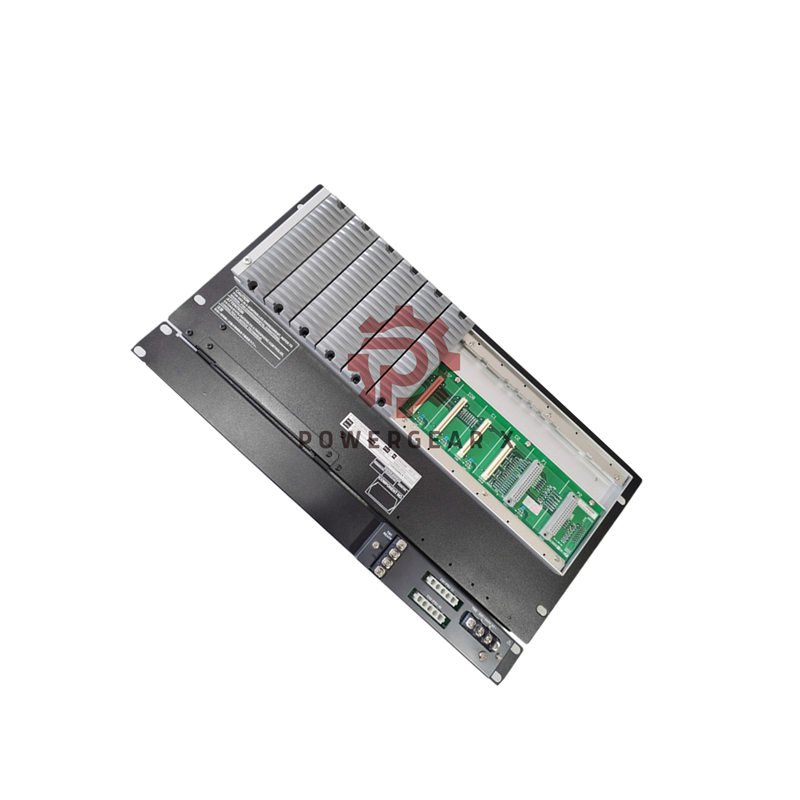

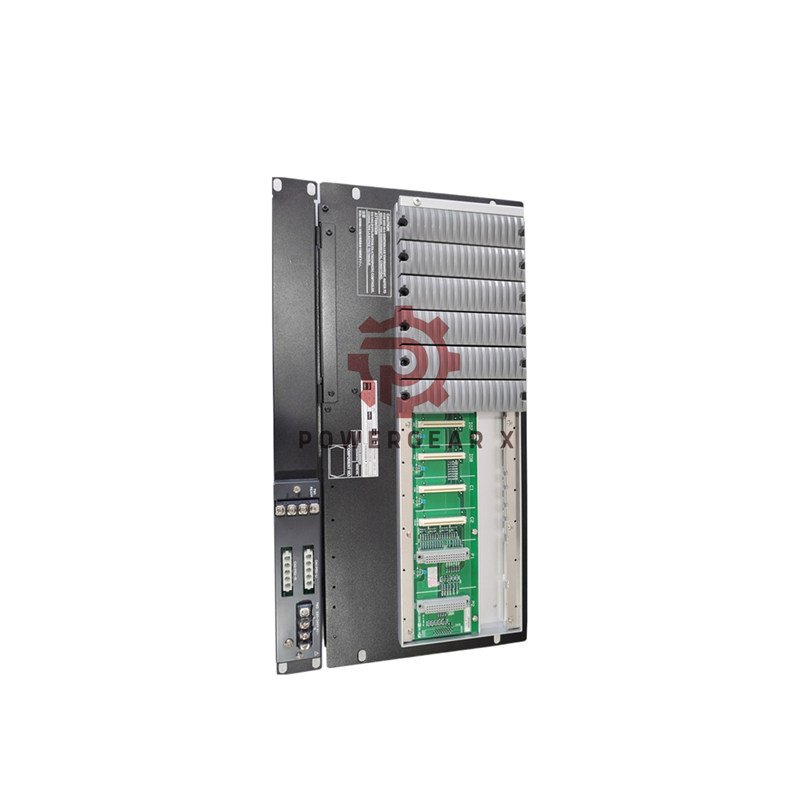

The Yokogawa AFV30D-A41252 field control unit provides duplexed control and industrial redundancy.
Technical Specifications (Brand: Yokogawa, Model: AFV30D-A41252)
- Manufacturer: Yokogawa. Model: AFV30D-A41252. Category: Field Control Unit.
- Configuration: Duplexed field control unit supporting Vnet/IP and FIO deterministic networking protocols.
- Power consumption: 100–120 V AC at 200 VA and 220–240 V AC at 230 VA.
- DC option: 24 V DC at 5.5 A for installations requiring DC supply.
- Weight: Approx. 8.0 kg for duplex unit; AFV30S approx. 7.0 kg.
- Mounting: 19-inch rack mounting using M5x8 screws and supplied insulation bushings for safety.
- Connections: Power, grounding, and READY contact use M4 screw terminals for secure wiring.
- Network cabling: Use UTP CAT5e or better and connect to a Layer 2 switch for Vnet/IP links.
- Environmental tolerance: Designed for industrial conditions with robust EMC resistance and thermal control.
- Redundancy details: Dual Vnet/IP links and dual power supplies maximize system availability.
Suffix Tree — Model Breakdown
- AFV30D-A41252
- AFV30D — Duplexed Field Control Unit series name for high-availability systems.
- A — Standard type for CP471 compatibility in this product family.
- 4 — Dual-redundant Vnet/IP and dual-redundant power supply configuration.
- 1 — Fixed digit used in the model nomenclature.
- 2 — Indicates 220–240 V AC power supply selection for the unit.
- 5 — Basic variant without explosion-protection options for standard applications.
- 2 — Revision marker indicating R6.01 or later hardware/firmware status.
Packaging List
- One Yokogawa AFV30D-A41252 duplexed field control unit in protective foam packaging.
- Accessory kit containing M5x8 rack screws and insulation bushings for safe rack installation.
- Quick-start guide and connection diagrams for power, ground, and network cabling details.
- Basic spare parts list and a technical contact card for spare ordering and support requests.
- Shipping options available via FedEx, UPS, or DHL according to customer preference.
FAQ
- Question: How do I select the correct power option for my system?Answer: Choose 100–120 V AC or 220–240 V AC depending on your local supply and redundancy needs.
- Question: Can I mount the unit in a standard control cabinet rack?Answer: Yes. The unit fits standard 19-inch racks and uses supplied M5x8 screws with insulation bushings.
- Question: What cabling do you recommend for Vnet/IP connections?Answer: Use UTP CAT5e or better and connect to a Layer 2 switch for deterministic networking performance.
- Question: Does this model include explosion protection options?Answer: The basic AFV30D-A41252 model does not include explosion protection features.
