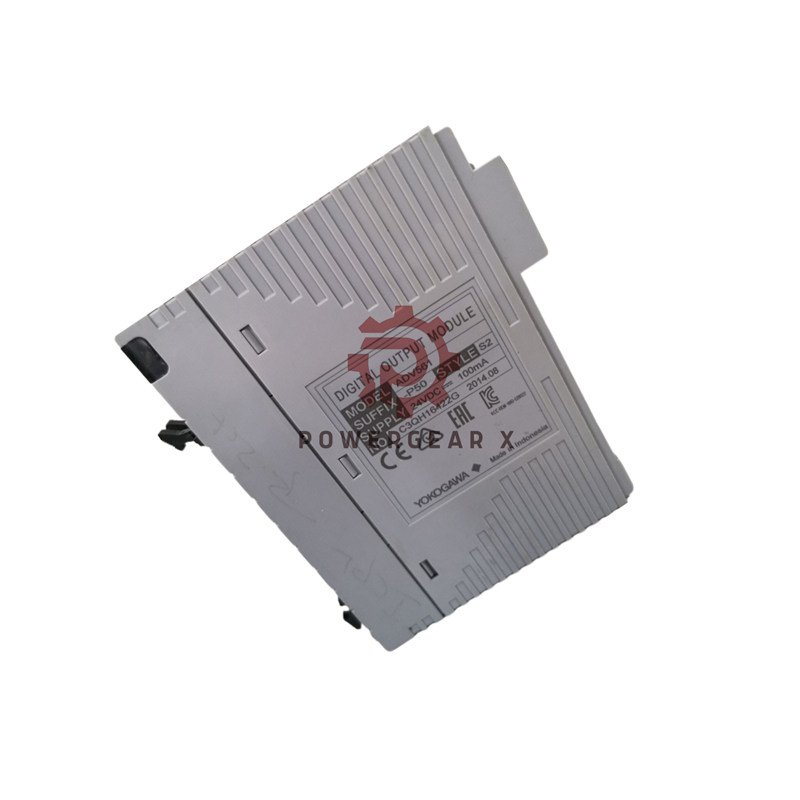

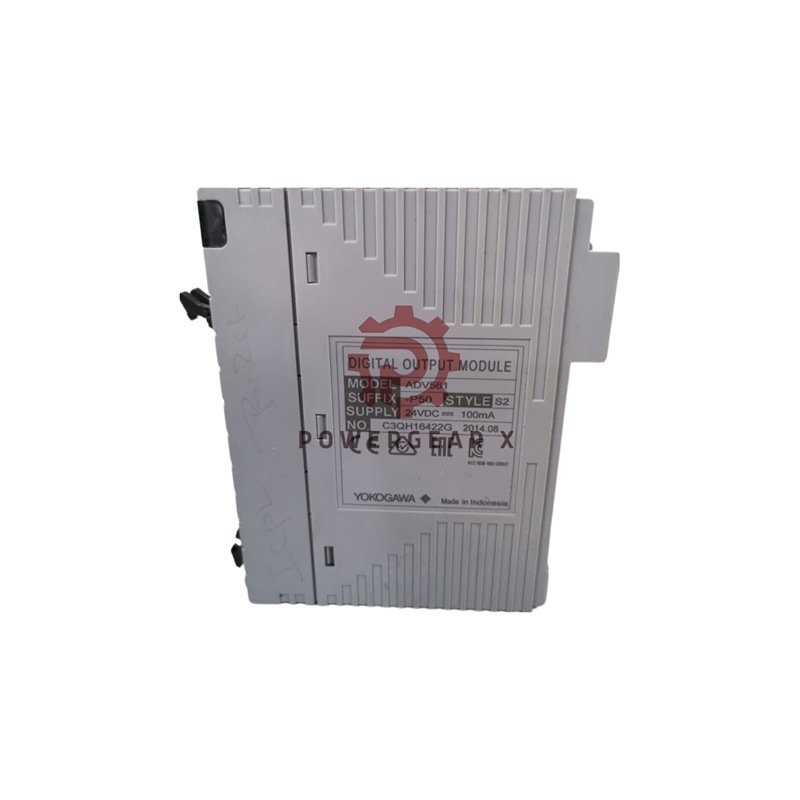

Yokogawa ADV561-P50 Digital Output Module
The ADV561 digital output module controls 64 channels with precision. This high-density module handles 24V DC outputs and pulse width functions. It delivers reliable performance for industrial automation systems.
Product Details
- Brand: Yokogawa
- Full Model: ADV561-P50
- Category: Digital Output Module
- Warranty: 12 Month Coverage
Model Configuration
- ADV561 – Base Unit
- P – Pulse Width Output
- 5 – No Status Display
- 0 – Standard Version
Technical Performance
- Output Channels: 64 Isolated
- Operating Voltage: 24V DC
- Voltage Range: 20.4-26.4V DC
- Max Load Current: 100mA per channel
- Leakage Current: 0.1mA maximum
- Response Time: ≤3ms status output
- Pulse Width: 8ms to 7200 seconds
- Power Consumption: 700mA @5V DC
- Isolation Voltage: 2kV AC protection
- Unit Weight: 0.3 kilograms
Advanced Capabilities
- 64 output channels in compact design
- Ultra-fast 3ms response time
- Programmable pulse width output
- Time-proportioning control function
- Low 0.1mA leakage current
- High 2kV electrical isolation
- Multiple output modes available
- Easy system integration
Package Contents
- Yokogawa ADV561-P50 Module
- Installation Manual
- Quality Certificate
Delivery Services
- Global shipping available
- Express options: FedEx, UPS, DHL
- Online tracking number
- Professional packaging
Expert Answers
What is time-proportioning output?
It controls the ON/OFF ratio over time. This provides precise analog-like control using digital outputs.
How many commons does this module have?
The module has four commons. Each common serves 16 output channels for flexible wiring.
Can I generate short pulses?
Yes, the minimum pulse width is 8ms. The module handles both short pulses and long durations.
What cables are compatible?
Use dedicated AKB337 cable or MIL connector. Both options ensure reliable connections.
Is external power required?
Yes, you need 24V DC external power. The module handles 100mA maximum current.
