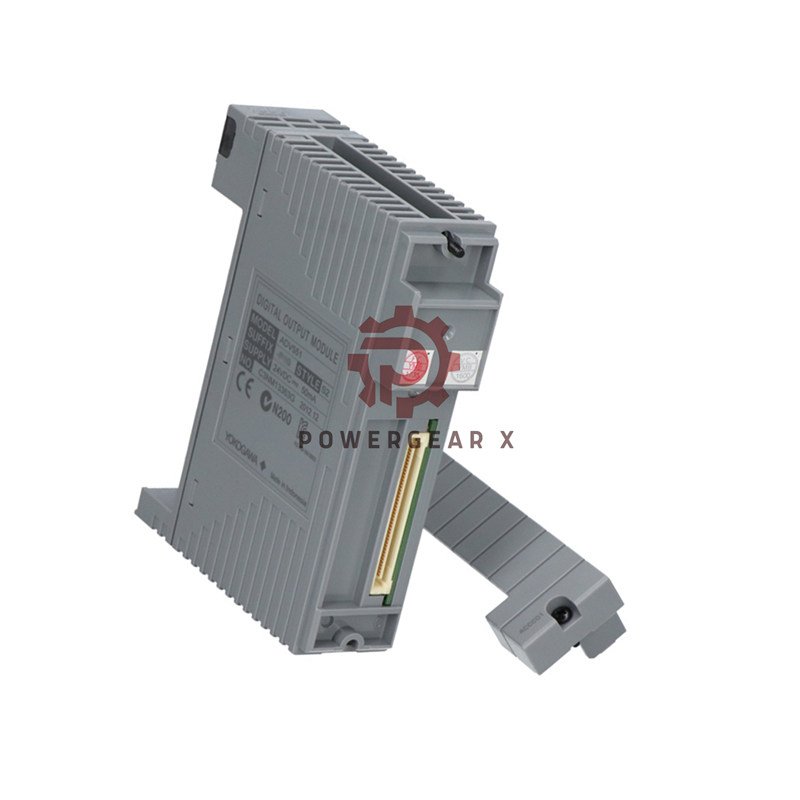

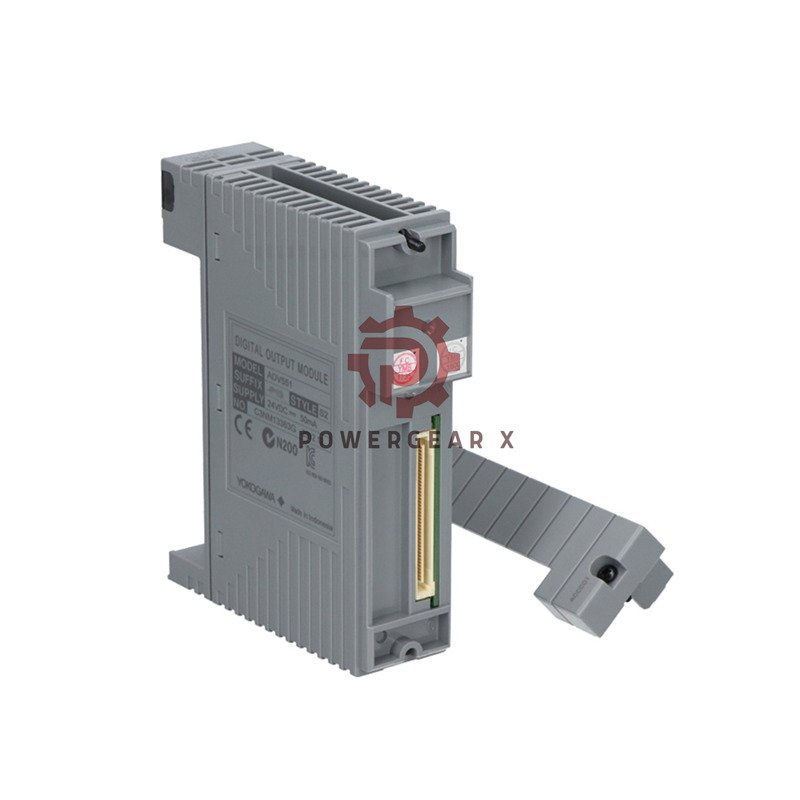

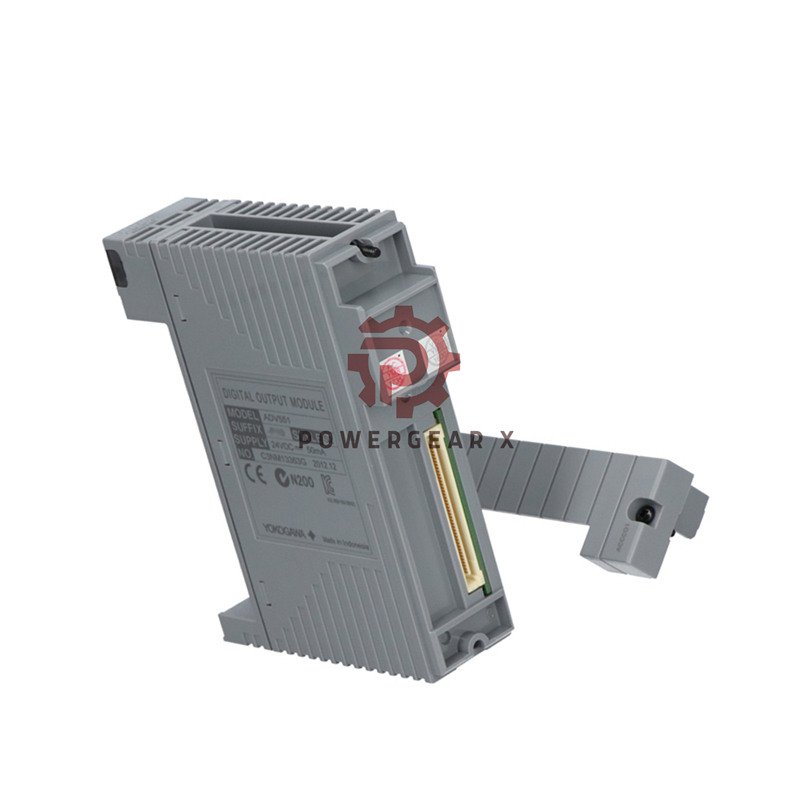

Yokogawa ADV551-P50/D5A00 Digital Output Module

The Yokogawa ADV551-P50/D5A00 is a 32-channel digital output module that supports precise pulse width control and fast signal switching. Designed for industrial automation systems, it delivers stable 24 V DC performance and high electrical isolation for demanding control applications.

Core Highlights

• 32-channel high-density digital output for space-efficient installation.
• Fast output response under 3 ms ensures real-time performance.
• Supports pulse width and time-proportioning output for advanced control logic.
• Wide voltage tolerance from 20.4 to 26.4 V DC for stable operation.
• Compact design, weighing only 0.2 kg for flexible panel mounting.
• Durable isolation of 2 kV AC between outputs and system for safety.
• 12-month warranty under normal operation from shipment date.

Technical Data

• Brand: Yokogawa
• Model: ADV551-P50/D5A00
• Output Channels: 32 independent current sink outputs
• Rated Voltage: 24 V DC nominal
• Voltage Range: 20.4 to 26.4 V DC
• Load Current: 50 mA per channel (max 100 mA @ 26.4 V)
• Leakage Current (OFF): ≤ 0.1 mA
• ON Voltage Drop: ≤ 2 V DC
• Withstanding Voltage: 2 kV AC (output to system), 500 V AC (between commons)
• Pulse Width Range: 8 ms to 7200 s
• Resolution: 8 ms, ON/OFF delay within 1 ms
• Response Time: ≤ 3 ms (status), ≤ 10 ms (pulse mixed)
• Power Consumption: 700 mA (5 V DC internal), 60 mA (external)
• Connection Type: Pressure clamp terminal or dedicated cable (AKB331, MIL connector)

Suffix Code Tree — Model Breakdown

• ADV551-P50/D5A00
  • ADV551 — 32-channel digital output base module.
  • P — Pulse width and time-proportioning output functions included.
  • 5 — Without status display; no explosion protection.
  • 0 — Basic standard model type.
  • /D5A00 — With KS cable interface adapter (Model: ATD5A-00).

Product Benefits

• Reliable 24V DC digital output designed for industrial control signals.
• Supports high-speed logic control with precise timing and pulse shaping.
• Compact and lightweight build for flexible cabinet mounting.
• Ensures high noise immunity and stable output in harsh industrial environments.
• Compatible with Yokogawa DCS systems, offering seamless integration.

Installation and Usage

• Mount directly in compatible rack or chassis slot with secure terminal connection.
• Use pressure clamp or dedicated cables (AKB331 or MIL type) for wiring.
• Check load voltage and channel assignment before commissioning.
• Perform system test to confirm output timing and pulse control accuracy.
• Contact sales@powergearx.com or WhatsApp +86 18030005825 for setup assistance.

Shipping & Warranty

• All items tested before dispatch to ensure performance and reliability.
• Worldwide express shipping via FedEx, UPS, and DHL with protective packing.
• 12-month product warranty covers defects under normal usage conditions.

FAQ

• Question: How many outputs can operate at once?Answer: All 32 channels can operate simultaneously without degradation.
• Question: What type of output format is used?Answer: The ADV551-P50/D5A00 uses a current sink output format for standard industrial loads.
• Question: Can the pulse width be adjusted manually?Answer: Yes, the module allows pulse width settings from 8 ms to 7200 s via software control.
• Question: Is it suitable for mixed output applications?Answer: Yes, it supports mixed status and pulse outputs with up to 10 ms response time.
• Question: What safety isolation is provided?Answer: It offers 2 kV AC isolation between output and system, and 500 V AC between channel groups.
