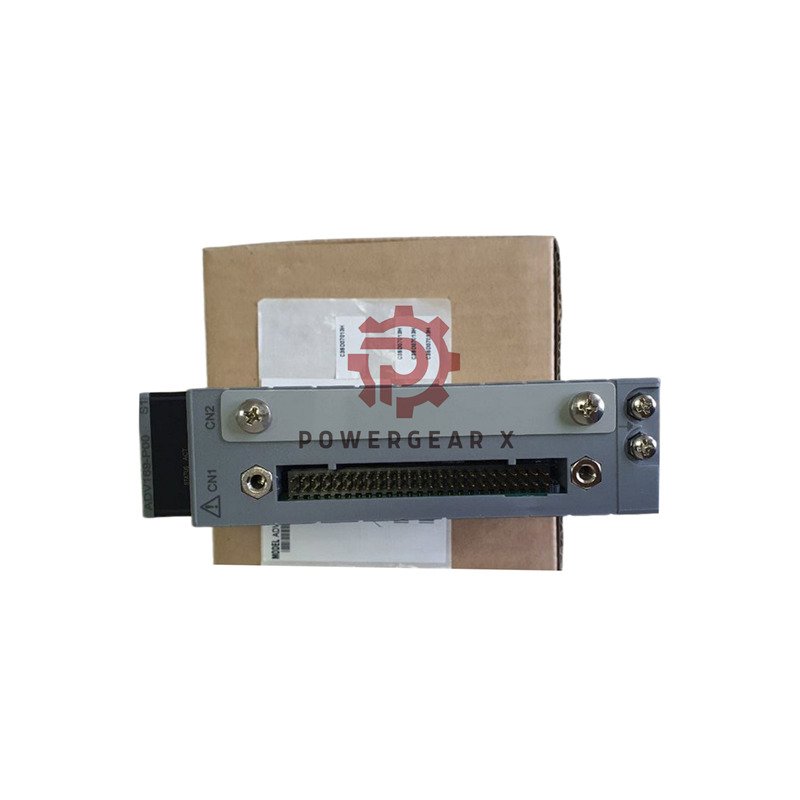

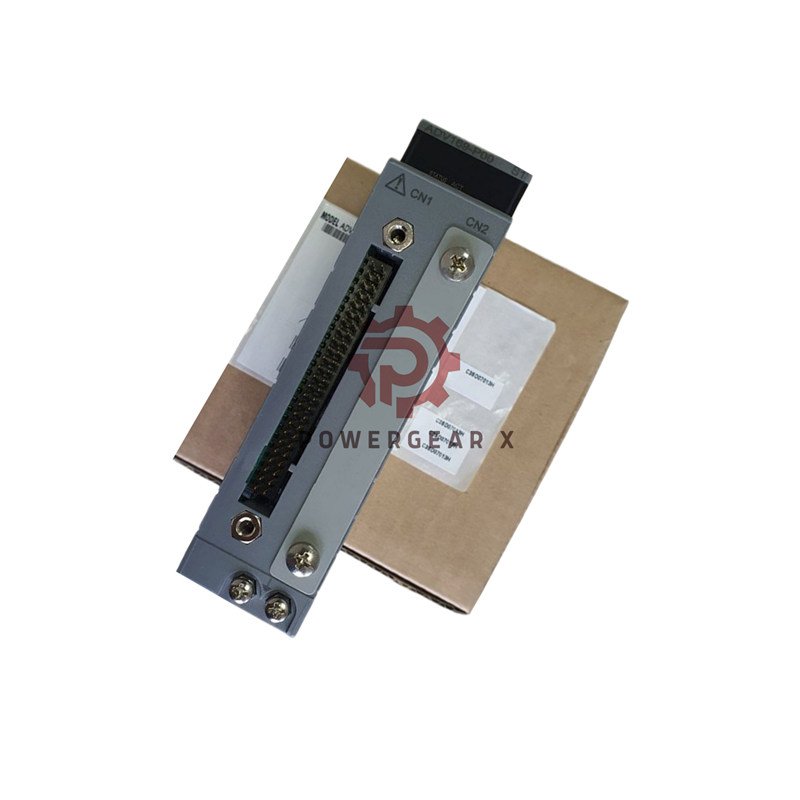

Yokogawa ADV169-P00 Digital I/O Module
The Yokogawa ADV169-P00 is a 64-channel isolated digital input module designed for precision and reliability. It delivers fast signal detection, solid isolation, and long-term durability, ideal for Yokogawa ST6 compatible systems.
Key Product Features
- 64 isolated digital input channels for complex system integration.
- Each 16 channels share a common ground for stable input performance.
- Fast 8 ms input response ensures reliable signal capture.
- Durable structure with 12-month warranty for peace of mind.
- Supports both voltage and contact input signals.
- Lightweight at 0.3 kg for easy installation and maintenance.
- Designed for Yokogawa ST6 system compatibility.
Detailed Technical Information
- Manufacturer: Yokogawa
- Product No.: ADV169-P00
- Product Type: Digital I/O Module
- Number of Channels: 64 isolated input channels
- Isolation: Common every 16-channel
- Rated Input Voltage: 5 V DC
- Input Current: 20 mA or more
- Response Time: 8 ms (status input)
- Input Resistance (OFF): 100 kΩ or more
- Input Resistance (ON): 200 Ω or less
- Voltage Input Range: 4.5–25 V DC (OFF), ±1 V DC (ON)
- Current (Short Circuit): 1.25 mA minimum
- Maximum Current Consumption: 800 mA (5 V DC)
- External Connection: Dedicated cable (KS9)
- Weight: Approx. 0.30 kg
- Compatibility: ST6 compatible systems
Suffix Code Tree — Model Breakdown
- ADV169-P00
- ADV169 — 64-channel digital input base model.
- P — Standard type version.
- 0 — Always 0 (reserved code).
- 0 — Basic type configuration.
Performance & Reliability
- Ensures accurate detection of on/off signal changes with low noise.
- Built for stable operation in industrial automation environments.
- Isolated input channels minimize signal interference.
- Robust electrical design provides safe, continuous operation.
- Each module passes Yokogawa’s strict quality inspection before shipping.
Installation & Operation Tips
- Use dedicated KS9 cables for safe connection.
- Ensure correct voltage input (5 V DC typical).
- Keep channel isolation groups consistent across wiring layouts.
- Check system compatibility before integration.
- For assistance, contact sales@powergearx.com or WhatsApp +86 18030005825.
Shipping & Warranty
- 12-month warranty covers manufacturing and performance defects.
- Fast and secure global delivery via FedEx, UPS, and DHL.
- All products tested and verified before shipment.
Frequently Asked Questions (FAQ)
- Question: Can the ADV169-P00 handle mixed voltage inputs?Answer: It supports voltage input signals between 4.5 V and 25 V DC for OFF states and ±1 V DC for ON states.
- Question: How is signal isolation implemented?Answer: The module isolates every 16-channel group to reduce electrical noise and protect system integrity.
- Question: What is the module’s current draw?Answer: Maximum current consumption is 800 mA at 5 V DC under full operation.
- Question: Does it support pushbutton input functions?Answer: No, this model does not include pushbutton input features.
- Question: Which systems are compatible with this module?Answer: It is designed for ST6-compatible systems within Yokogawa DCS environments.
