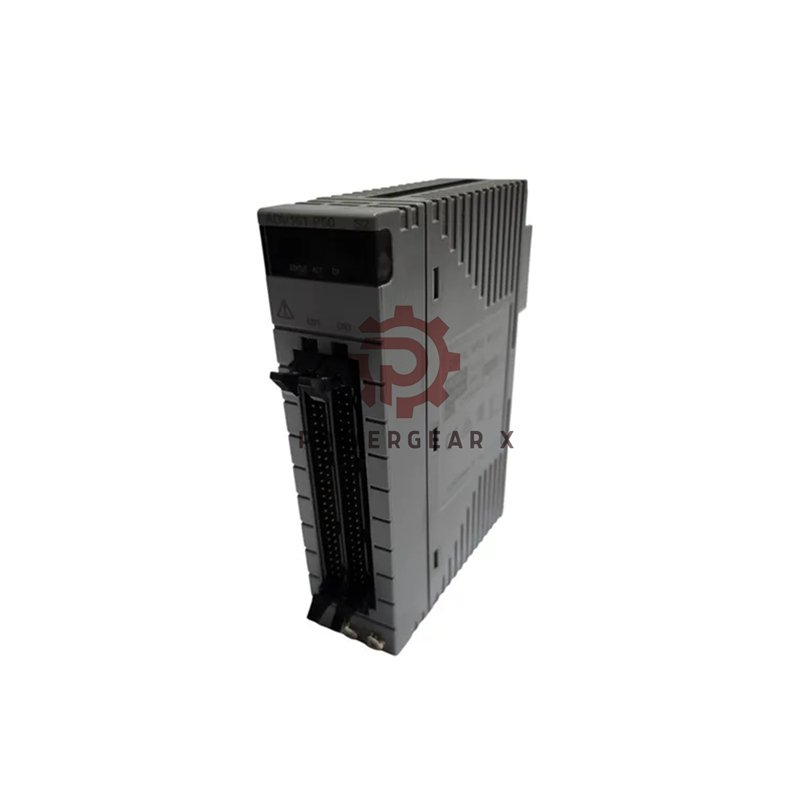

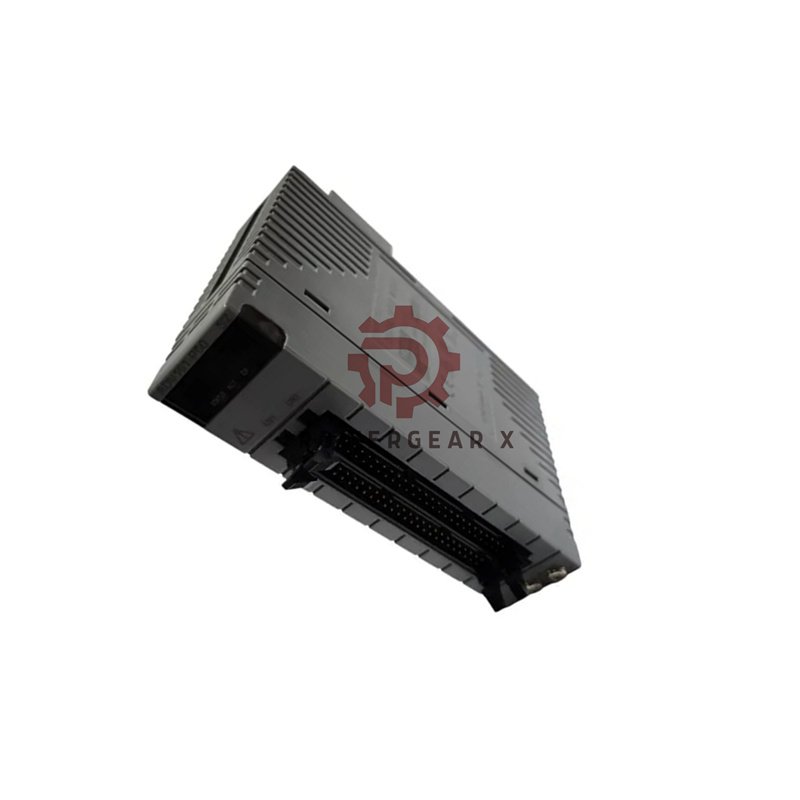

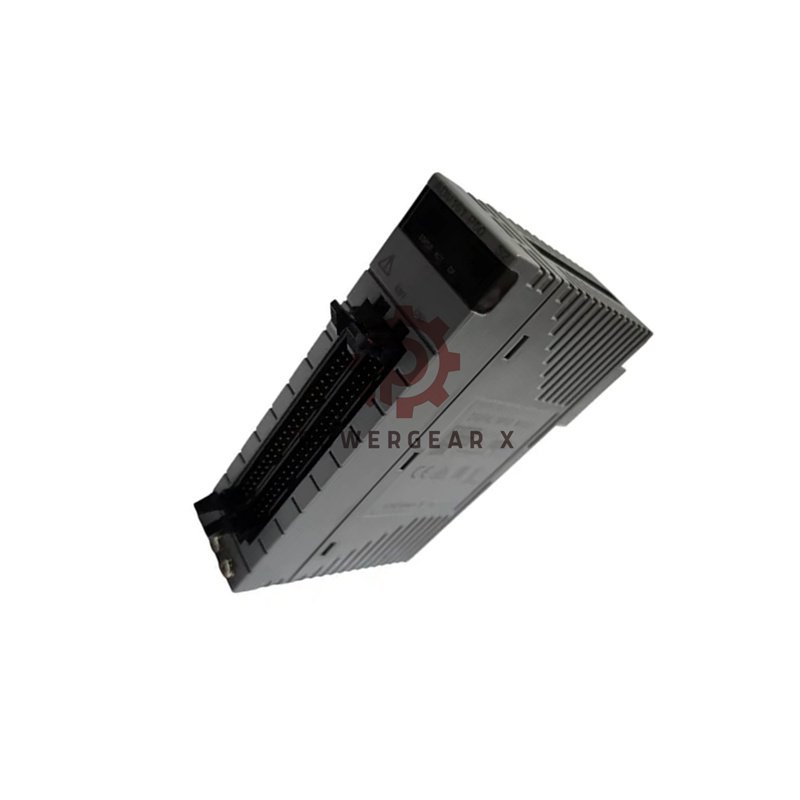

Yokogawa ADV161-P50 Digital I/O Module
The Yokogawa ADV161-P50 provides 64 digital input channels. It supports both status monitoring and pushbutton functions. This reliable module ensures fast response for industrial control applications.
Technical Specifications
- Manufacturer: Yokogawa
- Model Number: ADV161-P50
- Input Channels: 64 channels
- Input Voltage: 24 V DC rated
- ON Voltage Range: 20-26.4 V DC
- OFF Voltage: ≤5.0 V DC
- Input Current: 2.5 mA ±20% per channel
- Max Input Voltage: 30.0 V DC
- Withstanding Voltage: 2 kV AC (input to system)
- Response Time: ≤8 ms (status input)
- Pushbutton Detection: 20 ms minimum
- Max Cycle Rate: 25 Hz pushbutton
- Power Consumption: 550 mA at 5V DC
- Weight: 0.30 kg
- Warranty: 12 months
Product Features
- High-density 64 input channels
- Dual function: status and pushbutton input
- Fast 8ms response time for status monitoring
- Robust 2kV AC isolation protection
- Flexible sink/source input configuration
- Compact design saves panel space
- Reliable MIL connector interface
Model Suffix Details
- ADV161 – Digital I/O Module Base
- P – Pushbutton Input Capability
- 5 – No Status Display
- 0 – Basic Type Version
Package Contents & Delivery
- 1 × Yokogawa ADV161-P50 Module
- Installation Documentation
- Technical Specifications Sheet
- Express Shipping: FedEx, UPS, DHL Available
Frequently Asked Questions
- How many input channels does this module have?
The ADV161-P50 provides 64 digital input channels.
- What types of input does it support?
It handles both status monitoring and pushbutton inputs.
- What is the response time for status inputs?
Status inputs respond within 8 milliseconds maximum.
- What voltage range does it accept for ON state?
The module recognizes 20-26.4 V DC as ON state.
- What connectors are used for external wiring?
It uses MIL connector cables or dedicated AKB337 cables.
