Yokogawa ADV151-P53/D5A00 | 32-Channel Digital Input Module 24VDC

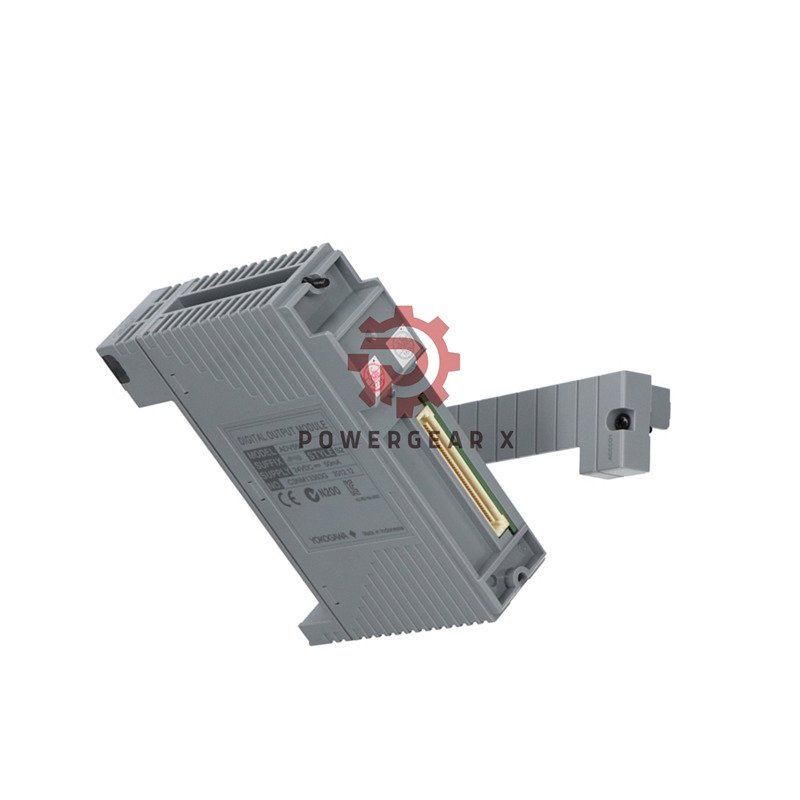

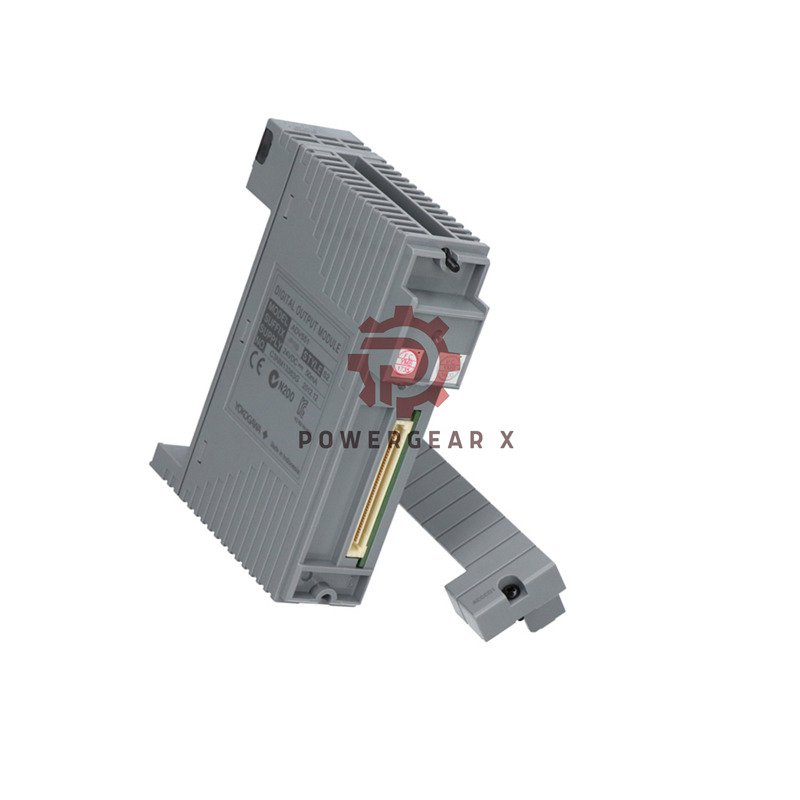

Yokogawa ADV151-P53/D5A00 Digital Input Module

Yokogawa ADV151-P53/D5A00 is a high-performance 32-channel digital input module built for reliable signal monitoring in control systems. It handles 24 V DC inputs with isolation, ensuring stable and safe operations under industrial conditions.

• Manufacturer: Yokogawa
• Model: ADV151-P53/D5A00
• Product Type: Digital Input Module, 32 channels
• Rated Input Voltage: 24 V DC (sink/source)
• Input ON Voltage: 18–26.4 V DC
• Input OFF Voltage: 5 V DC or less
• Input Current: 4.1 mA ±20% per channel
• Max Allowable Input Voltage: 30 V DC
• Withstand Voltage: 2 kV AC between signal and system (1 minute)
• Input Response Time: ≤8 ms for status input
• Minimum ON Detection Time: 20 ms for pushbutton input
• Max ON/OFF Cycle: 25 Hz (pushbutton mode)
• Current Consumption: 500 mA (5 V DC)
• Weight: Approx. 0.30 kg
• Operating Temperature: -20°C to +70°C (G3 compliant)
• Warranty: 12 months from delivery date

Suffix and Option Structure

• Base Model: ADV151 – 32-channel 24 V DC digital input module (isolated)
  • -P : Includes pushbutton input function
  • 5 : No status display; no explosion protection
  • 3 : With G3 and -20°C to +70°C operation option
  • Option Code:
    • /D5A00 : KS Cable Interface Adapter (32-channel, Model ATD5A-00)

Main Features and Benefits

• 32 isolated input channels for flexible signal handling.
• Supports pushbutton and SOE (Sequence of Events) input modes.
• Fast response time of less than 8 ms ensures real-time monitoring.
• Operates in harsh environments from -20°C to +70°C.
• Supports multiple connectors: pressure clamp, AKB331 cable, or MIL connector.
• Lightweight 0.3 kg module for compact rack installations.
• Low 5 V DC power consumption reduces heat and energy cost.
• High dielectric strength with 2 kV AC isolation protection.

Installation Guide

• Install in Yokogawa rack system with proper grounding.
• Use the dedicated KS or MIL connector cables for wiring.
• Verify 24 V DC signal polarity before connecting input channels.
• Check module orientation and ventilation clearance.
• Perform input test to confirm channel operation before commissioning.

Shipping and Delivery

• Ships globally via FedEx, UPS, or DHL express.
• Each unit packaged with antistatic protection and cushioning.
• Tracking information provided upon dispatch.

Included in the Package

• Main Unit: Yokogawa ADV151-P53/D5A00 Digital Input Module
• KS Cable Interface Adapter (optional)
• Quick Start Installation Sheet
• Mounting Accessories

Additional Technical Highlights

• SOE capture function enhances event traceability.
• Supports sink and source input wiring schemes.
• Noise-immune design reduces false triggers in industrial fields.
• High reliability in vibration-prone or humid environments.
• Complies with ISA G3 environmental standards.

FAQ

• What type of input voltage does it support?
• The module accepts 24 V DC sink or source inputs.
• Can I connect mechanical pushbuttons directly?
• Yes, the “-P” suffix version supports pushbutton edge counting.
• Does it capture sequence of events (SOE)?
• Yes, it includes SOE input for event time logging.
• Is it suitable for high-temperature operation?
• Yes, the “3” suffix allows operation up to +70°C.
• What is the warranty period?
• It includes a 12-month standard manufacturer warranty.
