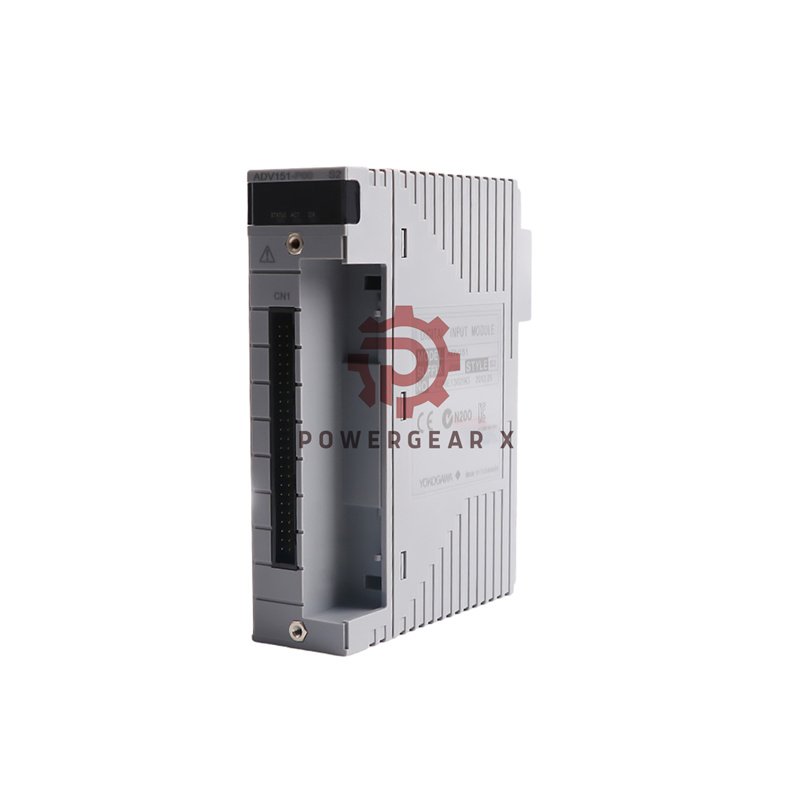

Yokogawa ADV151-P50/D5A00 Digital Input Module
The ADV151 digital input module handles 32 channels with fast response. This industrial module works with 24V DC signals and pushbutton inputs. It provides reliable performance for factory automation systems.
Product Identification
- Manufacturer: Yokogawa
- Model Number: ADV151-P50/D5A00
- Product Type: Digital Input Module
- Warranty Period: 12 Months
Model Code Breakdown
- ADV151 – Digital Input Module
- P – Pushbutton Input Function
- 5 – No Status Display
- 0 – Basic Configuration
- /D5A00 – KS Cable Adapter for 32 Channels
Technical Specifications
- Input Channels: 32 Channels
- Voltage Rating: 24V DC
- ON Voltage: 18-26.4V DC
- OFF Voltage: ≤5V DC
- Input Current: 4.1mA ±20% per channel
- Max Voltage: 30V DC
- Response Time: ≤8ms
- Power Consumption: 500mA @5V DC
- Weight: 0.3 kg
- Withstanding Voltage: 2kV AC (Input to System)
Key Features
- 32 input channels in compact design
- Fast 8ms response time
- Pushbutton input counting function
- High 2kV isolation protection
- Works with sink/source signals
- Includes KS cable adapter
- Multiple connection options
- SOE data capture capability
What’s Included
- Yokogawa ADV151-P50/D5A00 Module
- KS Cable Interface Adapter
- Installation Documentation
Shipping Options
- International shipping available
- Express carriers: FedEx, UPS, DHL
- Real-time tracking
- Secure packaging
Frequently Asked Questions
What is SOE input function?
SOE means Sequence of Events. It records status changes with precise timing for analysis.
Can I use this for pushbutton inputs?
Yes, the module counts pushbutton edges. It handles up to 25 Hz switching frequency.
What cable types work with this module?
Use pressure clamp terminals, MIL connector cable, or dedicated AKB331 cable.
How many channels share a common?
Every 16 channels share one common. The module has two commons for 32 channels.
Is this module suitable for safety systems?
It provides reliable input monitoring. Always check your specific safety requirements.
