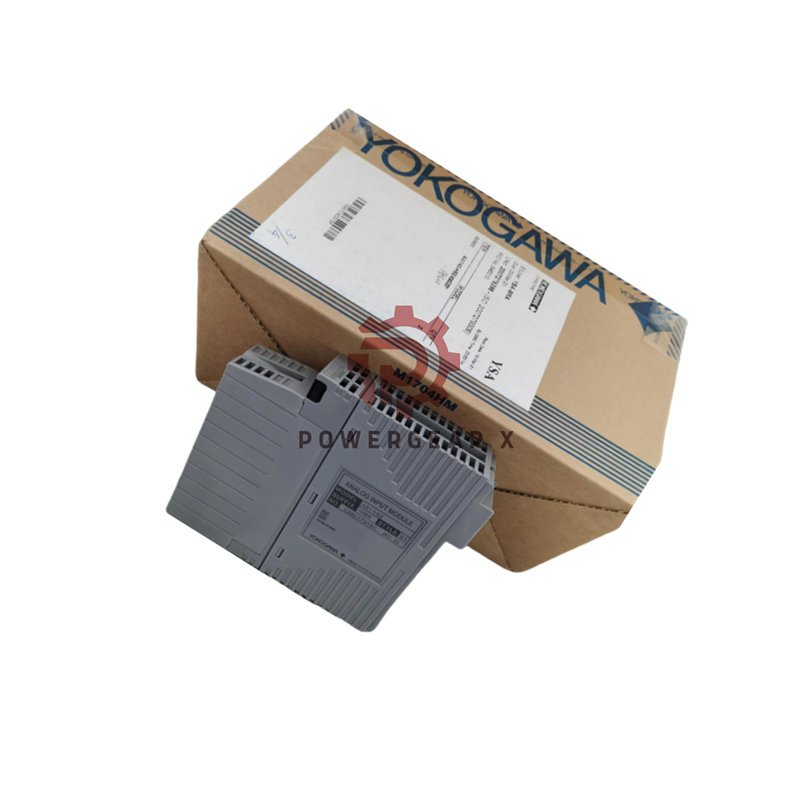

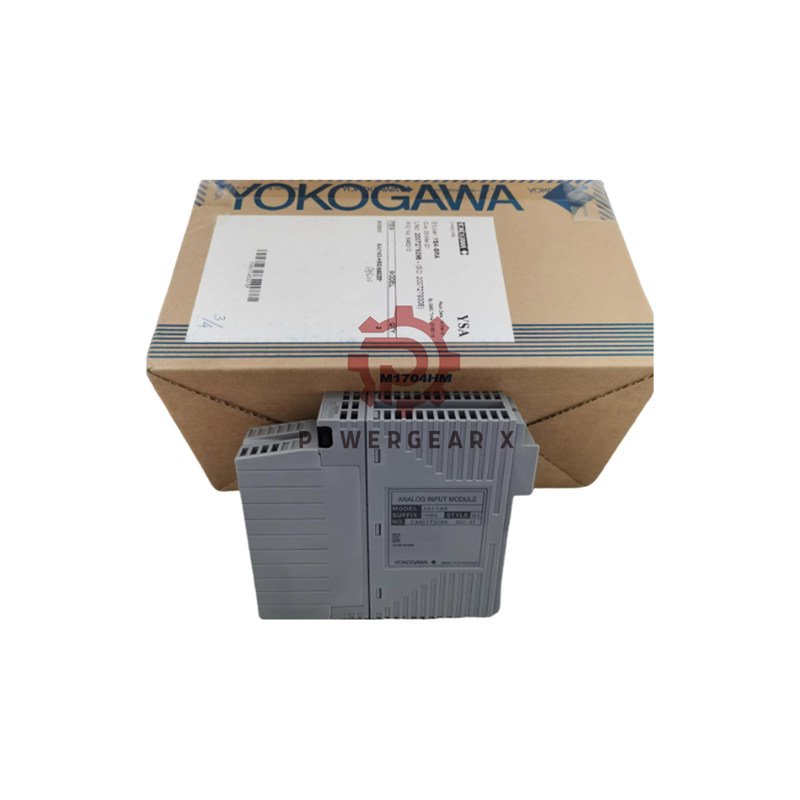

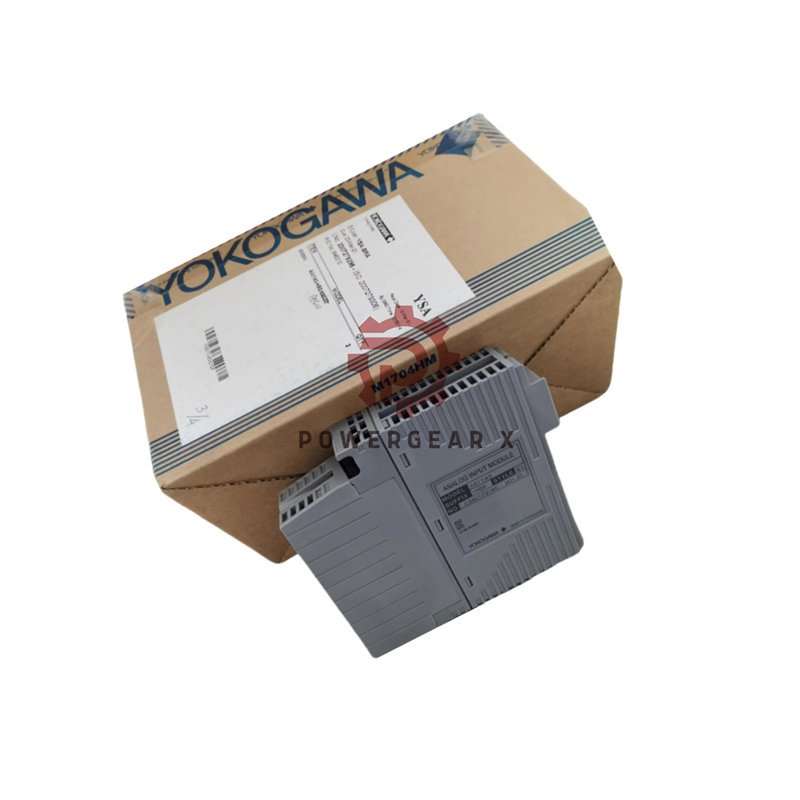

Yokogawa AAI543-H50/K4A00 Analog Output Module
The Yokogawa AAI543-H50/K4A00 delivers precise 16-channel analog output. This advanced module supports HART communication for smart device integration. It offers reliable performance in industrial automation systems with fast data updates.
Product Specifications
- Brand: Yokogawa
- Model: AAI543-H50/K4A00
- Channels: 16 isolated outputs
- Signal: 4-20 mA DC
- Accuracy: ±48 µA
- Update Speed: 10 ms period
- Load Resistance: 0-750 Ω
- Withstanding Voltage: 1500V AC
- Open Circuit Detection: < 0.65 mA
- Temperature Drift: ±16 µA/10°C
- Power Consumption: 230 mA (5V), 540 mA (24V)
- Communication: HART protocol
- Weight: 0.4 kg
- Warranty: 12 months
Model Code Breakdown
- AAI543 – Analog Output Module Base
- H – With HART Digital Communication
- 5 – Standard Redundant Response
- 0 – Basic Type Configuration
- K4A00 – KS Cable Interface Adapter Included
Key Features
- 16 fully isolated output channels
- HART protocol communication support
- Fast 10ms data update period
- High 1500V AC isolation voltage
- Redundant configuration capability
- Open circuit detection feature
- KS cable interface adapter included
Shipping & Package
- 1 × Yokogawa AAI543-H50/K4A00 Module
- KS Cable Interface Adapter
- Documentation and manuals
- Fast delivery via FedEx, UPS, DHL
Technical Questions
- What communication protocols does this module support?
The module supports HART protocol for smart device communication.
- How many output channels are available?
This AAI543-H50/K4A00 module provides 16 isolated output channels.
- What is the module’s output signal range?
It delivers 4-20 mA DC analog output signals.
- What power supplies does the module require?
It needs both 5V DC and 24V DC power inputs.
- What is the data update speed?
The module updates output data every 10 milliseconds.
Order Information
- Contact us for pricing and stock details
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
