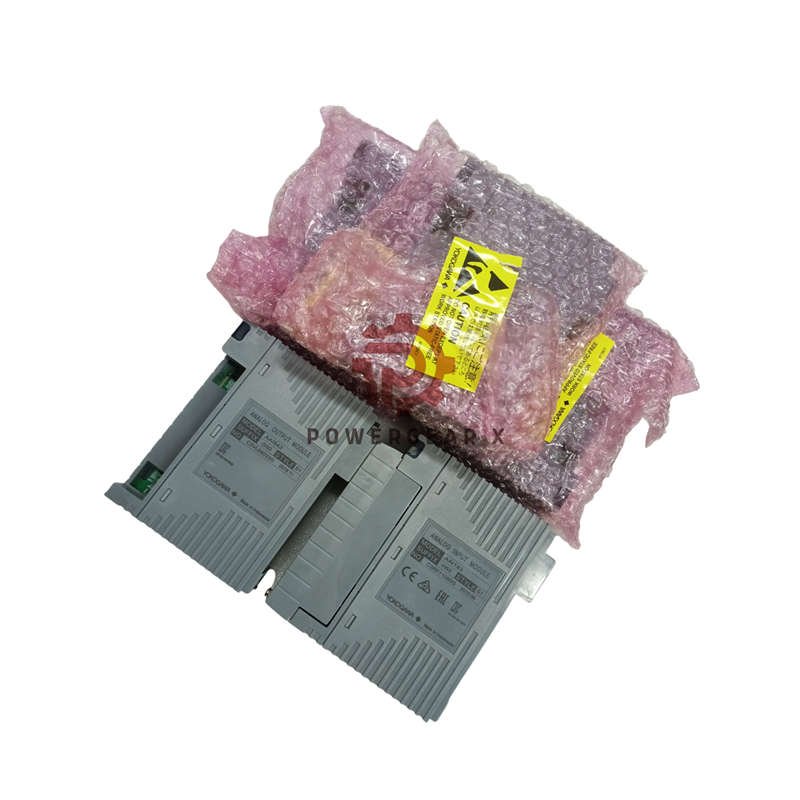

Yokogawa AAI143-H53 Analog Input Module

The Yokogawa AAI143-H53 handles 16-channel analog input with HART protocol support. This industrial module provides accurate 4-20 mA signal measurement. It features channel isolation and fast 10 ms data updates. Perfect for process control and monitoring applications.

Main Product Advantages

• 16 isolated channels for multiple sensor inputs
• HART protocol support for digital communication
• High accuracy ±16 µA for precise measurements
• Fast 10 ms update period for real-time control
• Wide temperature range from -20 to 70 °C
• 1500 V AC withstand voltage for safety
• Supports both 2-wire and 4-wire transmitters
• KS cable interface adapter included

Complete Technical Details

• Manufacturer: Yokogawa
• Product Number: AAI143-H53
• Type: Analog Input Module
• Input Channels: 16 isolated channels
• Input Signal: 4 to 20 mA DC
• Maximum Input Current: 24 mA
• Input Resistance: 270-350 Ω (power on)
• Accuracy: ±16 µA typical
• Data Update: 10 ms period
• Transmitter Power: 19-25.5 V DC
• Current Consumption: 230 mA (5V), 540 mA (24V)
• Weight: 0.3 kg
• Warranty: 12 months

Model Suffix Explanation

• Base Model: AAI143 Analog Input Module
• First Character H: With HART digital communication
• Second Character 5: No explosion protection
• Third Character 3: ISA G3 standard, -20 to 70°C
• K4A00 Option: KS cable interface adapter included

Installation & Connection Options

• Pressure clamp terminal for easy wiring
• MIL connector cable for robust connections
• Dedicated KS1 cable available
• KS cable interface adapter included
• Simple 2-wire or 4-wire transmitter selection
• Channel-by-channel configuration

Package Includes

• Yokogawa AAI143-H53/K4A00 module
• KS cable interface adapter
• Mounting hardware and documentation
• Fast shipping via FedEx, UPS, DHL

Common Questions

• What is the HART protocol used for?

HART allows digital communication with smart field devices. It enables device configuration and diagnostics.

• How many input channels does this module have?

The module provides 16 fully isolated input channels. Each channel works independently.

• What is the measurement accuracy?

Accuracy is ±16 microamps across the entire 4-20 mA range. This ensures reliable data.

• Can I use 2-wire and 4-wire transmitters together?

Yes, you can mix transmitter types. Set each channel individually using configuration pins.

• What power supplies does the module need?

It requires both 5V DC (230 mA) and 24V DC (540 mA) power supplies for operation.
