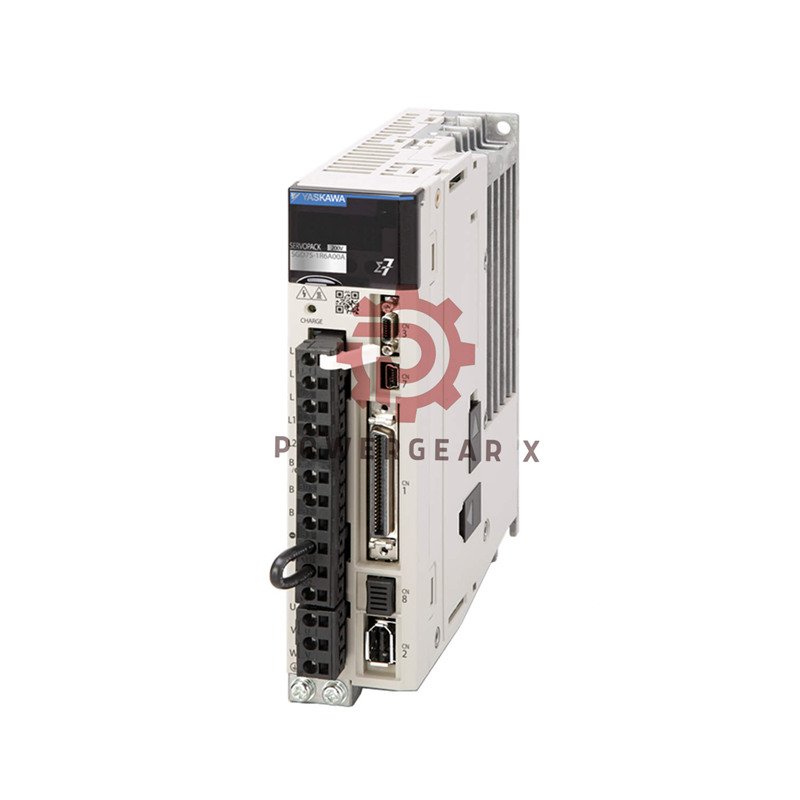

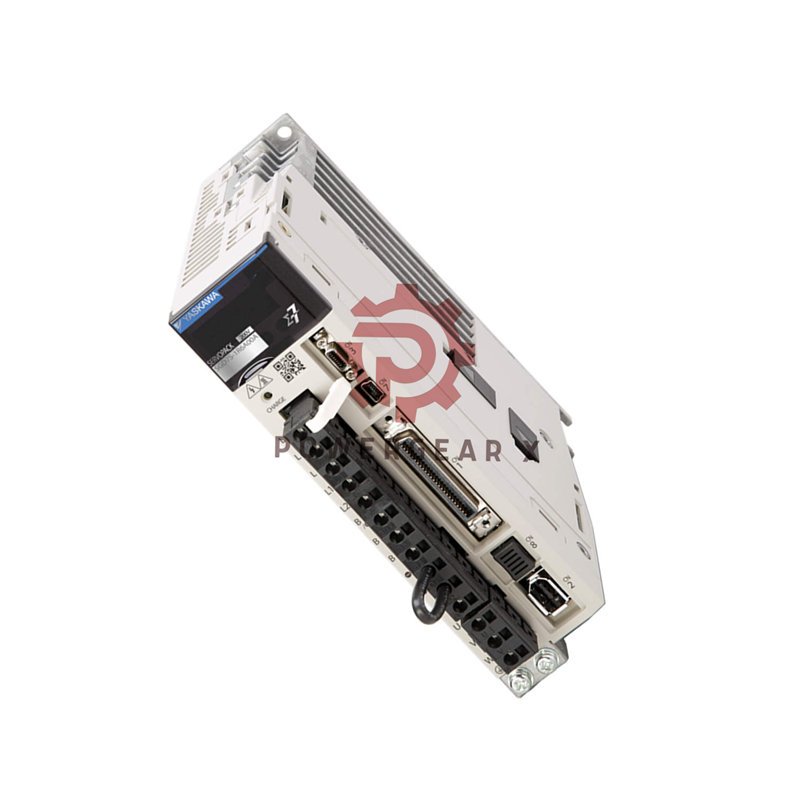

Yaskawa SGDV-7R6A01A Servo Drive: Power Your Precision Machines
This is a 1 kW Sigma 5 servo drive. It controls motors with great accuracy. Use it in robots, CNC machines, and automated systems. It is strong, reliable, and easy to connect. It makes your machines move smoothly and correctly.
Where To Use This Drive
- Precision robotics and pick-and-place arms.
- CNC machine tools for milling or cutting.
- Automatic packaging and assembly lines.
- Material handling systems like conveyors.
- Printing and textile manufacturing equipment.
Main Features You Will Appreciate
- High Power Density: 1 kW output in a compact unit.
- Strong Peak Power: Handles instant surges up to 17 Amps.
- Flexible Control: Accepts both analog and pulse command signals.
- Built-in Safety: Regenerative resistor option protects the drive.
- Easy to Talk To: RS-422 port for setup and monitoring.
- Wide Voltage Range: Works from 170V to 253V AC, good for unstable power.
Complete Technical Details
- Manufacturer & Series: Yaskawa Sigma 5
- Model: SGDV-7R6A01A
- Rated Output Power: 1.0 kW
- Continuous Output Current: 7.6 A
- Instantaneous Max Current: 17 A
- Main Input Power: 3-Phase, 200-230V AC
- Allowable Voltage Range: 170 – 253 V AC
- Input Frequency: 50/60 Hz
- Control Interface: Analog Voltage / Pulse Train
- Communication Port: RS-422
- Regenerative Braking: Supports built-in or external resistor.
- Protection Class: IP10 (for clean, indoor panels).
- Operating Temperature: 0°C to +40°C (non-condensing).
- Storage Temperature: -20°C to +85°C.
- Weight: 2.27 kg (5.00 lbs).
- Safety Certifications: Complies with global industrial standards.
Getting Started & Support
Mount the drive in a clean electrical cabinet. Ensure proper cooling. Connect motor and power cables as per the manual. Use Yaskawa’s software for easy setup and tuning. Our team can provide basic startup guidance.
What’s In The Box & Warranty
You will receive one new Yaskawa SGDV-7R6A01A drive unit. We include a 12-month warranty for peace of mind. We ship quickly worldwide via FedEx, UPS, and DHL.
Answers to Common Questions
Q: Can I use this drive with a single-phase power supply?
A: No. The SGDV-7R6A01A requires a three-phase 200-230V AC input power source.
Q: Does it include the regenerative resistor?
A> This model supports a resistor. You must check the exact package or order the external resistor separately if needed for your application.
Q: What software is needed to configure it?
A: Yaskawa’s SigmaWin+ software is typically used for parameter setup and tuning on a PC.
Q: From experience, what is a key installation tip?
A> Ensure the cabinet environment is clean and cool. Dust and heat are the most common causes of premature drive issues in the field.
Q: Can it communicate with a standard PLC over Ethernet?
A: Not directly. This model has an RS-422 port. For Ethernet/IP or PROFINET, you may need a separate network option module or a different drive model.
