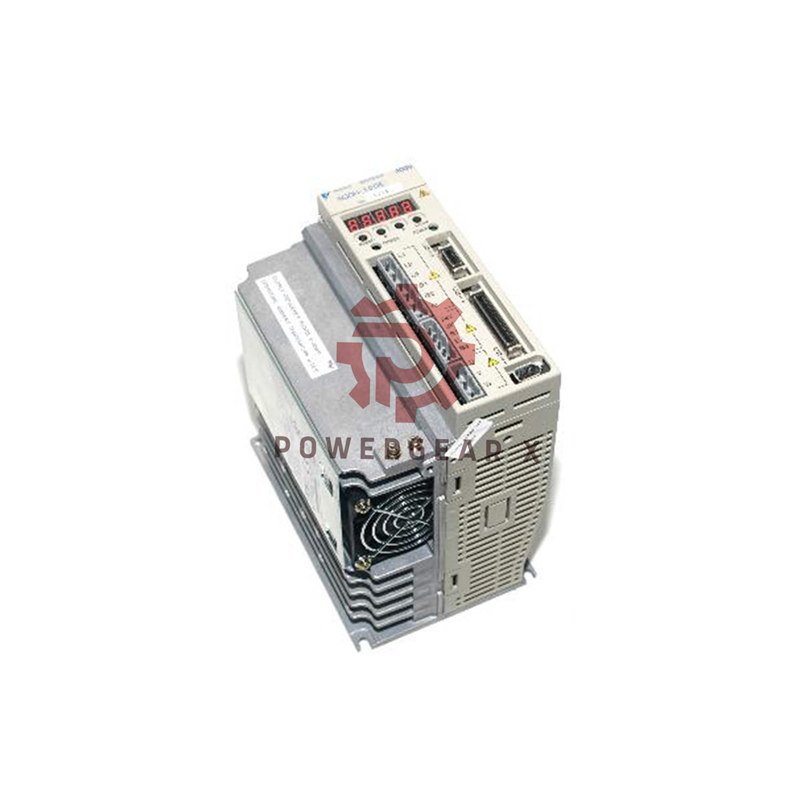

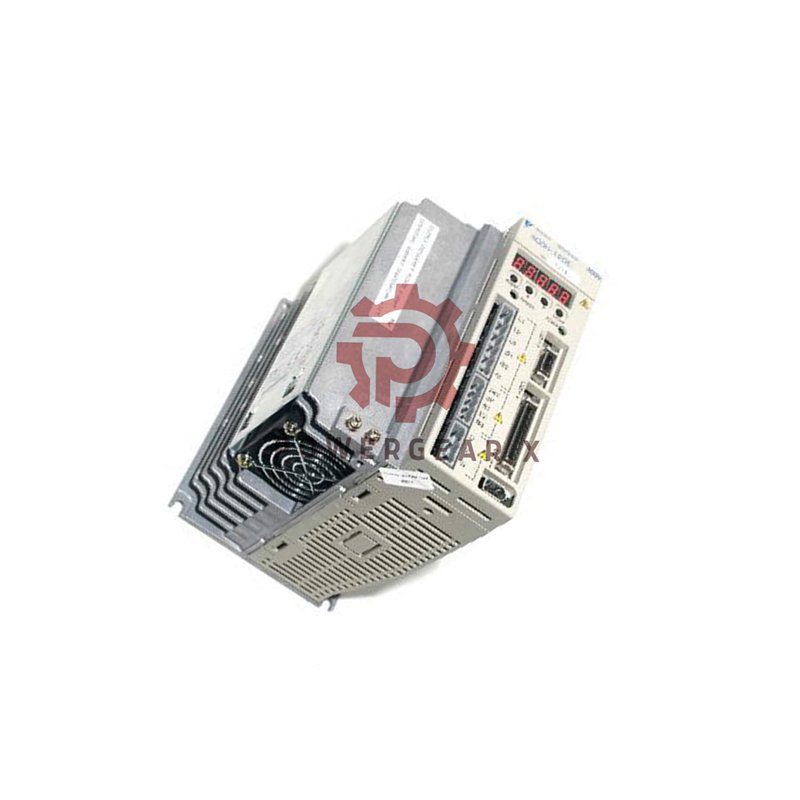

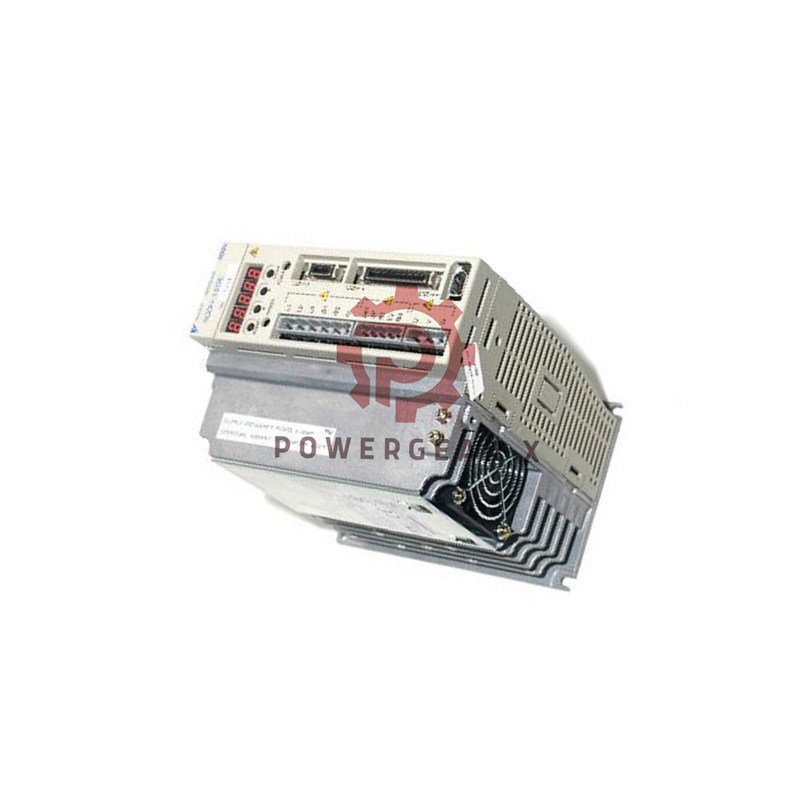

Yaskawa SGDH-10DE Servo Amplifier | Sigma II Series 1kW Drive
Power your precision motion. The Yaskawa SGDH-10DE is a robust servo amplifier. It delivers reliable control for Sigma II servo motors. This 1kW drive is built for industrial automation. It ensures smooth and accurate machine movement.
Why Choose This Servo Drive?
- Compact Power: 1kW output in a space-saving design.
- Wide Voltage Range: Works with 380-480V AC three-phase power.
- Natural Cooling: Efficient air cooling for reliable operation.
- Durable Design: Built for 24/7 use in industrial environments.
- Easy Integration: Designed for the Yaskawa Sigma II motor series.
- Global Standard: Compatible with 50/60 Hz power systems.
Detailed Technical Specifications
- Brand: Yaskawa
- Model: SGDH-10DE
- Series: Sigma II
- Type: Servo Amplifier (Drive)
- Rated Output Power: 1.0 kW
- Input Voltage: 380-480 V AC, 3 Phase
- Input Current: 3.5 A
- Input Frequency: 50 / 60 Hz
- Control Method: IGBT PWM Control
- Cooling Method: Natural Air Cooling
- Ambient Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -20°C to 65°C (-4°F to 149°F)
- Ambient Humidity: 20% to 80% (non-condensing)
- Vibration Resistance: 4.9 m/s² max (following IEC 60068-2-6)
- Protection Class: IP20 (for enclosure)
- Communication Interface: Standard digital I/O, compatible with various controllers
- Weight: 2.72 kg (6.00 lbs)
- Author: Powergear X Automation
Warranty & Shipping Information
- Condition: New or factory-tested unit (as specified in listing).
- Warranty: Full 12-month replacement warranty for peace of mind.
- Shipping: Fast global delivery via FedEx, UPS, or DHL.
- Packaging: Secure industrial packaging to prevent transit damage.
Expert FAQs for Installation & Use
Q: What is the main benefit of natural air cooling?
A: It eliminates the need for external cooling fans. This reduces maintenance points and potential failure. It also keeps the design compact and simple.
Q: Can I use this drive with a different brand of servo motor?
A: We do not recommend it. The SGDH-10DE is tuned for Yaskawa Sigma II motors. Using another brand may cause poor performance or damage.
Q: What is a common power wiring mistake?
A: Incorrectly connecting the three-phase power lines (L1, L2, L3). Always follow the wiring diagram in the manual. Also, ensure the ground wire is properly connected for safety.
Q: How do I reset a fault alarm on this drive?
A> Most faults can be reset by cycling control power. For persistent faults, use the drive’s digital input configured for “Alarm Reset” or refer to the fault code in the manual.
Q: The drive is installed in a hot environment. What should I check?
A: Ensure the ambient temperature does not exceed 55°C. Check that the drive’s heatsink fins are not blocked. Allow enough space around the drive for proper air circulation.
