Product details

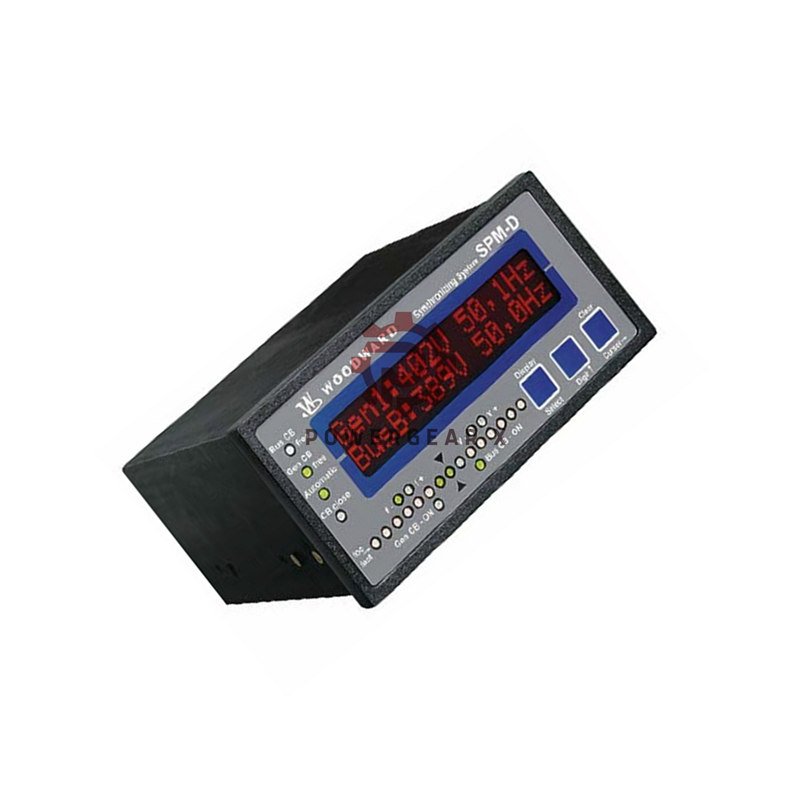

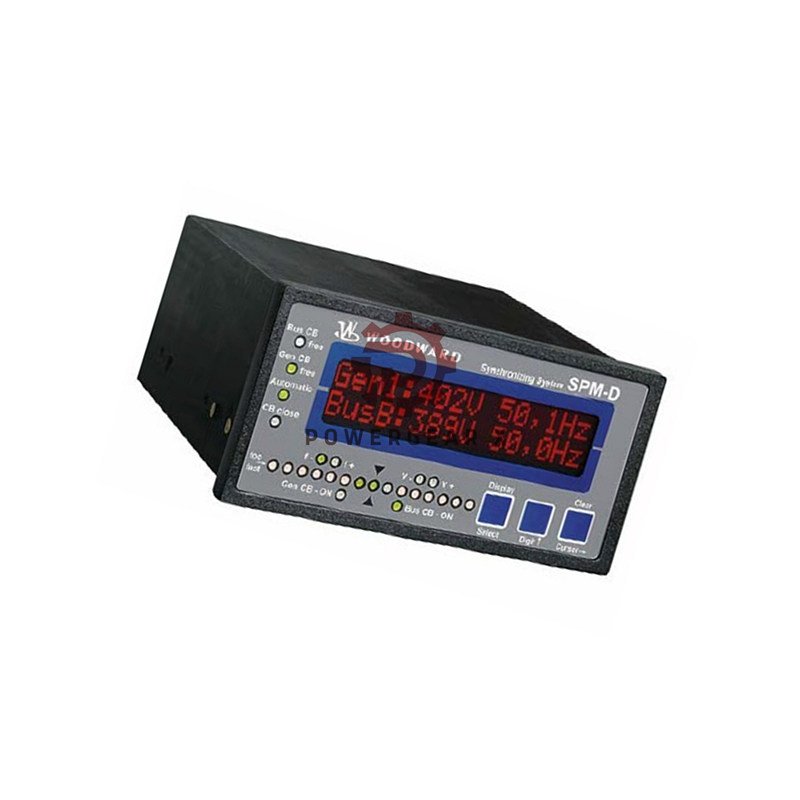

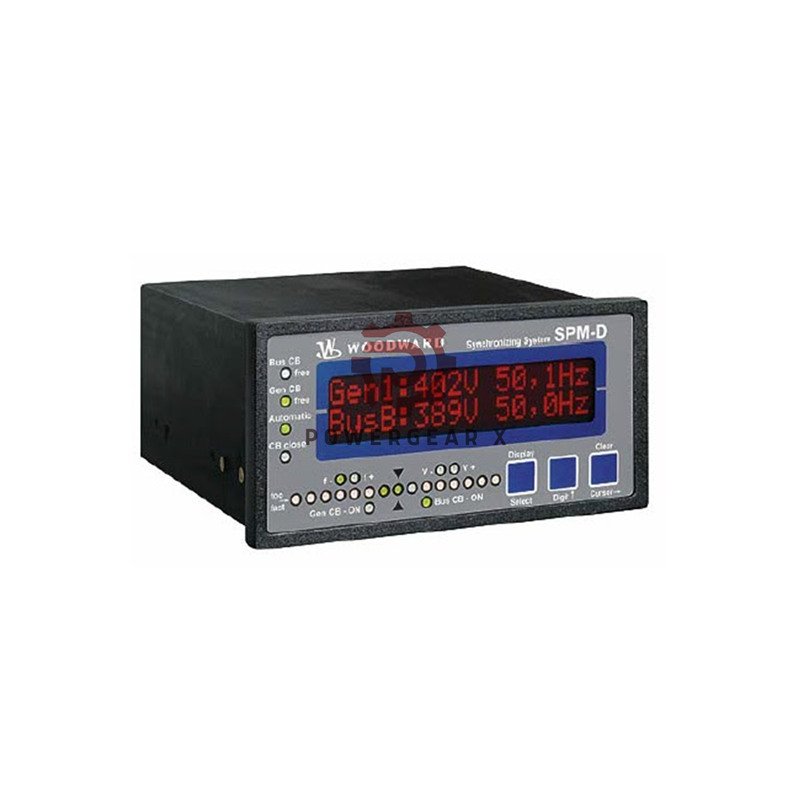

Woodward 8440-1706 Overview
- Model: 8440-1706
- Series: SPM-D11 Synchronizer
- Manufacturer: Woodward Inc.
- Type: Generator synchronizing and load control module
- Condition: New, unused surplus, or reconditioned
Main Highlights
- Automatic phase and slip-frequency synchronization
- Real power and power factor control
- True RMS measurement for accurate readings
- Isochronous load sharing with up to 32 generators
- Dead bus and isolated operation support
- Soft unload and generator protection functions
- 2-line LCD display with alarm and diagnostic info
- Compact design for easy panel integration
Technical Specifications
- Dimensions: 144 × 72 × 122 mm
- Weight: Approx. 0.8 kg (1.76 lbs)
- Display: Two-line LCD
- Voltage Sensing: True RMS for gen, bus, and mains
- Communication: Modbus RTU, CANopen, SAE J1939
- Power Supply: 18–36 Vdc typical, 10 W max
- Operating Temperature: –20 °C to +70 °C
- Storage Temperature: –30 °C to +80 °C
- Protection Class: IP20 (panel mounted)
- Compliance: CE, UL/cUL, CSA, BDEW, ABS, Lloyd’s Register
Key Benefits
- Flexible configuration for single or multi-generator systems
- Plug-and-play installation with Woodward ToolKit
- Supports automatic mains failure (AMF) mode
- Designed for continuous operation with long service life
- Reliable synchronizing even under dynamic load conditions
Applications
- Emergency power systems (data centers, hospitals)
- Distributed power and cogeneration plants
- Marine and offshore generator control
- Utility paralleling and peak shaving
- Microgrid and islanded prime power setups
Package & Warranty
- 1 × Woodward 8440-1706 module
- 1 × Installation guide and software manual
- Shipping: FedEx, UPS, or DHL (worldwide)
- Warranty: 12 months from delivery date
FAQ
- Question: What type of control does the 8440-1706 support?
Answer: It supports real power, reactive power, and power factor control. - Question: Can it synchronize multiple generators?
Answer: Yes, it can manage up to 32 generators in parallel mode. - Question: Does the module work with SCADA systems?
Answer: Yes, it supports Modbus RTU for SCADA communication. - Question: What protection functions are included?
Answer: It includes overload, overfrequency, undervoltage, and generator protection. - Question: How is configuration done?
Answer: Configuration is done via Woodward ToolKit software on a PC or RP-3500 remote panel.
