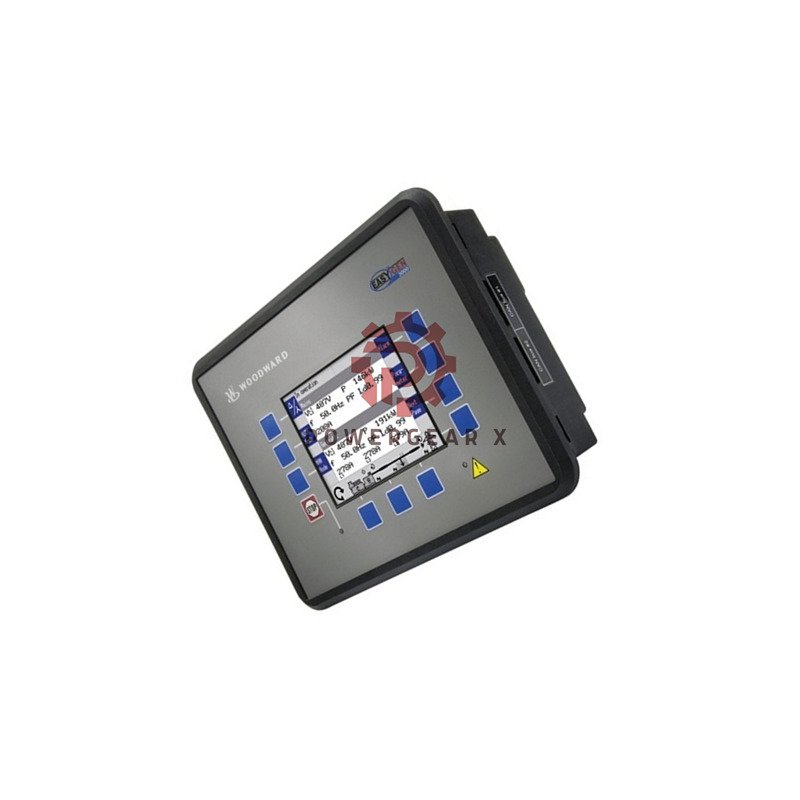

Woodward easYgen-3200-P2 Genset Controller Overview
The 8440-2052 controller delivers advanced generator set automation from Woodward’s easYgen-3000 series. This robust unit handles complex operations including load sharing and breaker control. It provides reliable auto mains failure (AMF) functionality. The controller efficiently manages single or multiple unit configurations for up to 32 generator sets.
Key Technical Specifications
- Brand & Model: Woodward 8440-2052 (easYgen-3200-P2)
- Power Supply: 12/24 VDC with wide 8 to 40 VDC operating range
- Measuring Frequency: 50/60Hz standard, 40 to 85 Hz operating range
- Analog Inputs: 3 configurable non-isolated freely scalable inputs
- Discrete I/Os: 12 configurable discrete inputs/outputs
- Current Transformer Input: 5A standard for precise power measurement
- Power Consumption: Maximum 17 W for efficient operation
- Contact Material: AgCdO for reliable switching performance
Advanced Control Features
- Built-in operator interface on front plastic housing
- Three freely configurable PID controllers included
- Magnetic/switching pickup for speed measurement
- Configurable setpoints for comprehensive protection
- 12 discrete alarm outputs with 10 configurable
- Complete generator, engine and mains protection
Input/Output Capabilities
- Measures 3-phase and 1-phase alternator windings
- 32 external discrete I/Os via CANopen network
- 16 external analog inputs through CANopen
- 4 external analog outputs via CANopen
- Supports multiple generator configurations
Physical Dimensions
- Front Panel: 282mm W × 216mm H × 96mm D
- Back Panel: 250mm W × 227mm H × 50mm D
- Front panel mounting design
- Compact form factor saves space
Frequently Asked Questions
- How many generator sets can the 8440-2052 control?
The controller manages operations for up to 32 generator units.
- What speed sensing method does this controller use?
It utilizes magnetic or switching pickup for speed input.
- Are the analog inputs configurable for different sensors?
Yes, all three analog inputs are freely configurable and scalable.
- What communication protocol supports external I/O?
CANopen protocol handles all external discrete and analog I/Os.
- What is the operating voltage range?
The unit operates on 8 to 40 VDC, supporting 12V or 24V systems.
