Product details
Product Overview

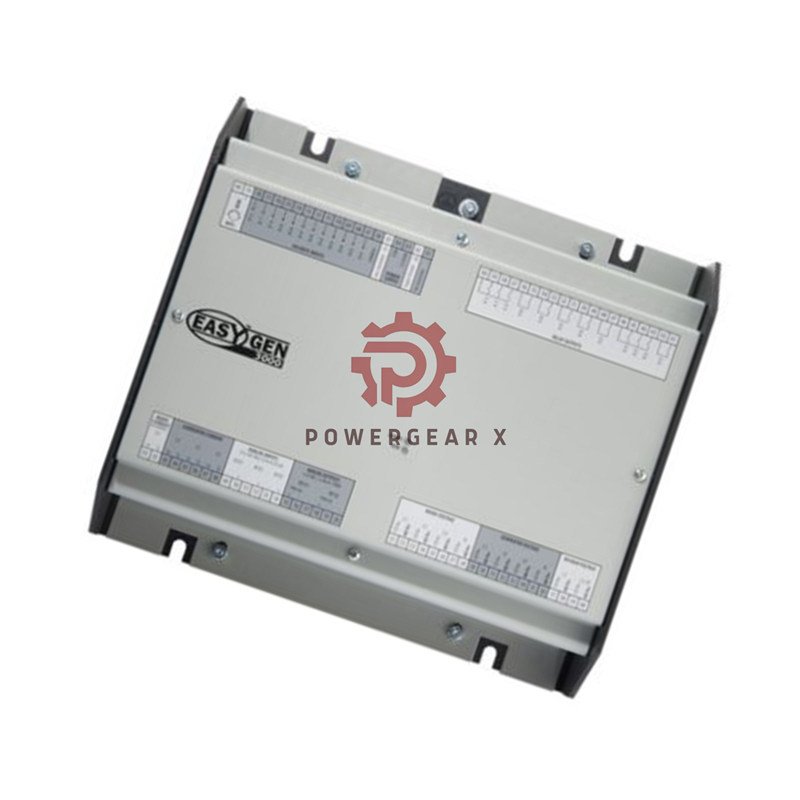

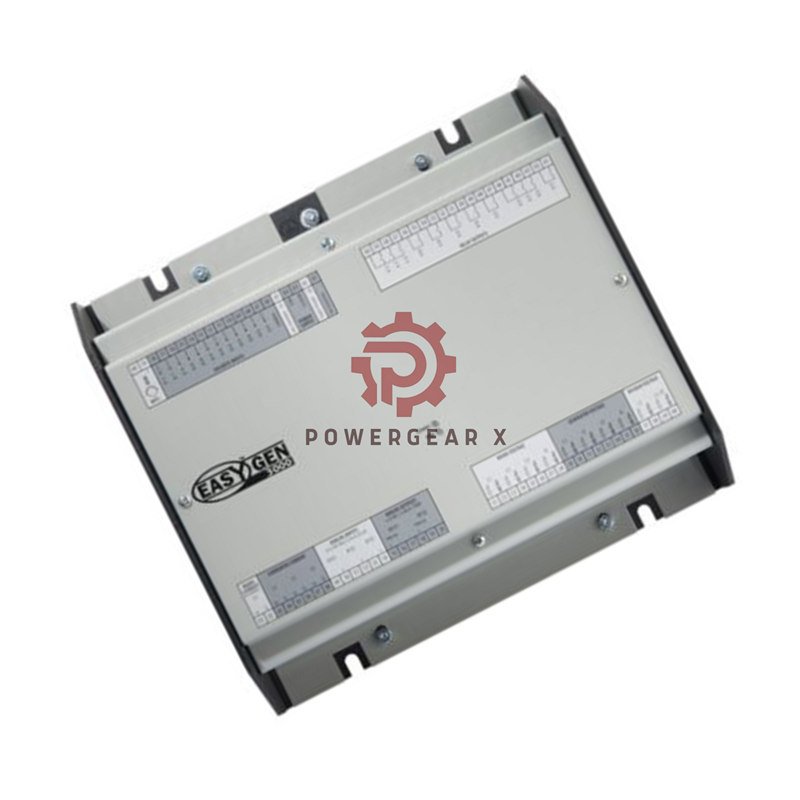

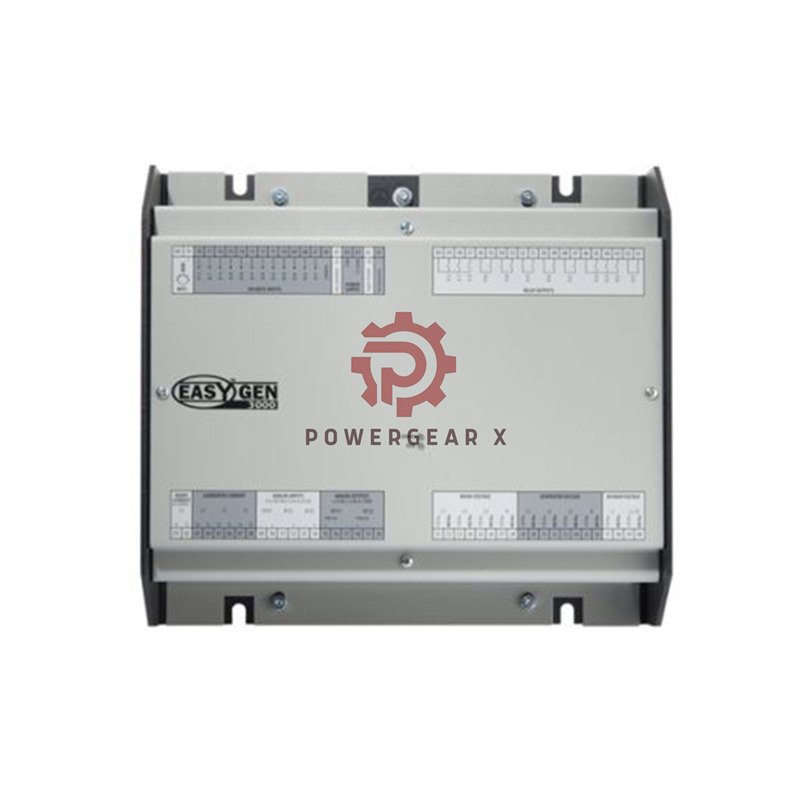

- Model: 8440-2056
- Manufacturer: Woodward
- Series: easYgen-3000 (3100 version)
- Mounting Type: Cabinet back panel installation
- Interface: Controlled via PC using ToolKit software
- CT Input: 5A, metal housing
- Power Supply: 12/24 V DC (8–40 V DC range)
- Operating Frequency: 50/60 Hz (40–85 Hz)
- Output Voltage: Up to 250 V AC
Key Features
- Supports up to 32 gensets in parallel with automatic sequencing
- Peer-to-peer communication for seamless synchronization
- Load-dependent start/stop and load sharing functions
- Four operation modes: Auto, Manual, Stop, and Test
- Built-in real-time clock with 300-event data logging
- Three fully configurable PID controllers
- Multi-lingual support for 14 languages
- Supports both diesel and gas engine control logic
Technical Specifications
- Input Voltage Range: 8 to 40 V DC
- Frequency Measurement: 40–85 Hz
- Voltage Measuring Range: 50–650,000 V AC
- Relay Outputs: Electrically isolated
- Current Setting Range: 1–32,000 A
- Display: Optional external HMI connection
- Protection: Overcurrent and reverse polarity
- Operating Temperature: –20°C to +70°C
- Storage Temperature: –40°C to +85°C
- Housing: Industrial metal enclosure
System Capabilities
- Paralleling and load sharing between multiple gensets
- Automatic mains synchronization and load transfer
- Open or closed transition switching
- Data logging and event history tracking
- Easy system configuration via PC ToolKit
Advantages
- High reliability in multi-unit control applications
- Compact design for easy cabinet integration
- Efficient event recording with accurate time stamping
- Wide input voltage range for flexible installations
- Field-proven in industrial and marine power systems
Warranty & Delivery
- Comes with a 12-month warranty
- All units are factory tested before shipping
- Worldwide express delivery via FedEx, UPS, or DHL
- Secure anti-static packaging for safe transport
FAQ
- Q: What communication method does the Woodward 8440-2056 use?
A: It uses peer-to-peer communication for synchronizing up to 32 gensets. - Q: Does this controller include a built-in display?
A: No, this version connects to a PC or external HMI for operation. - Q: What engine types are supported?
A: The unit supports both diesel and gas engines. - Q: How many events can it record?
A: It can record up to 300 system events with timestamps. - Q: What software is needed for setup?
A: Woodward ToolKit software is required for configuration.
