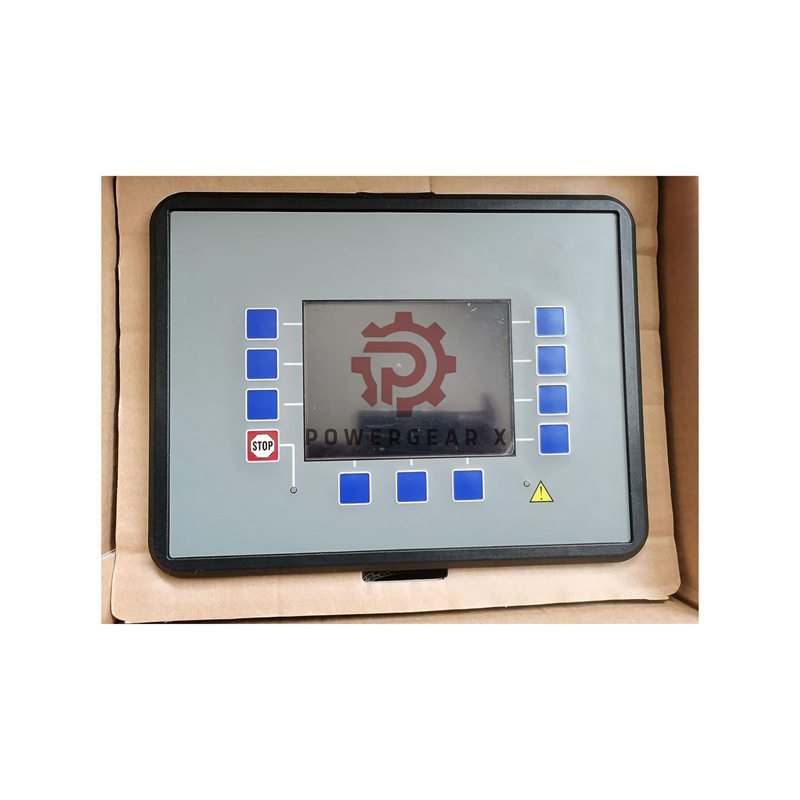

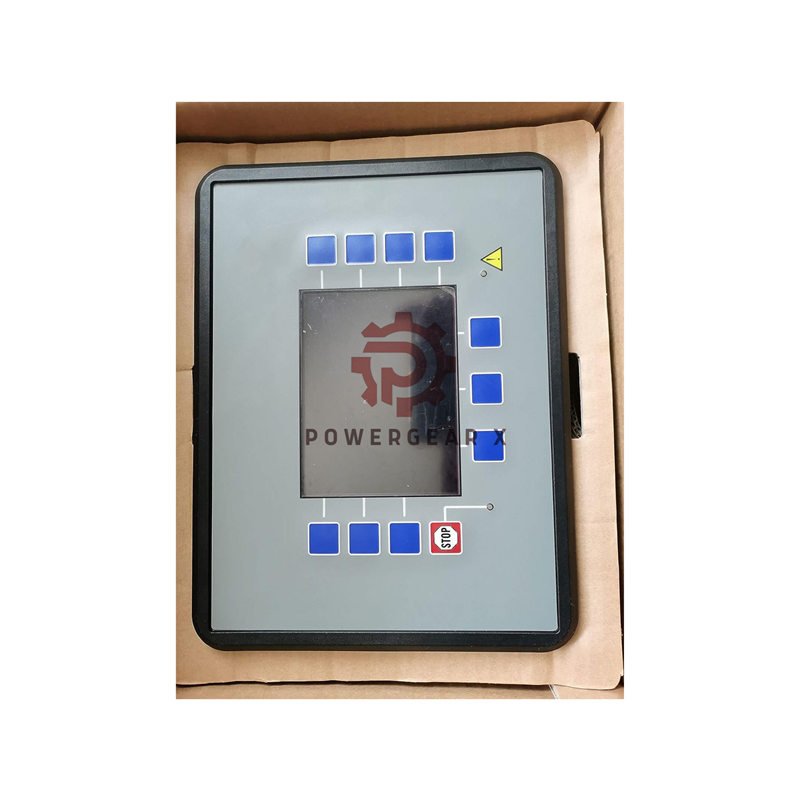

Woodward 8440-2050 easYgen-3000 Genset Controller
The Woodward 8440-2050 easYgen-3000 is a next-generation genset controller designed for powerful, flexible, and reliable generator system management. It controls up to 32 gensets with automatic sequencing and provides advanced protection functions for generator, engine, and mains operation.
- Manufacturer: Woodward Fort Collins, CO
- Model: 8440-2050
- Series: easYgen-3000
- Warranty: 12 months
Key Technical Specifications
- Power Supply: 12/24 VDC (8–40 VDC)
- Current Range: 1–32,000 A
- Voltage Range: 50–650,000 Vac
- Analog Input Resolution: 16-bit
- Input Resistance: 2.0 MΩ per path
- Frequency: 50/60 Hz (40–85 Hz)
- Panel Dimensions: 250W × 227H × 50D mm
- Operating Temperature: −20°C to +70°C (−4°F to +158°F)
- Storage Temperature: −30°C to +80°C (−22°F to +176°F)
- Humidity: Max 95% (non-condensing)
Main Features & Highlights
- Built-in color LCD HMI with soft-key control
- Controls up to 32 gensets with automatic sequencing
- Supports peak shaving, cogeneration, and AMF modes
- Configurable analog and discrete I/O for versatile setups
- 5A CT inputs with high accuracy
- Advanced monitoring for overspeed and frequency mismatch
- Fully programmable via HMI or PC ToolKit software
Input/Output Capacity
- Up to 3 analog inputs
- Up to 2 analog outputs (+/-10V, +/-20mA, PWM)
- Up to 12 discrete outputs
- Up to 16 external discrete I/Os via CANopen
- Isolated relay outputs for enhanced safety
Protection Functions
- Generator overload and unbalanced load
- Engine overspeed and underspeed
- Auxiliary excitation failure
- Speed/frequency mismatch
- Mains phase shift and rotation field issues
Environmental & Mounting Details
- Front panel mounting design for easy integration
- Durable casing for harsh environments
- High-contrast LCD for outdoor readability
- Fast-access soft keys for quick control
Shipping & Warranty
- Worldwide express via FedEx, UPS, or DHL
- Each unit tested before shipment
- Includes 12-month limited warranty
Frequently Asked Questions (FAQ)
- Q: Does the 8440-2050 include a display?
A: Yes, it features a built-in color LCD with soft keys. - Q: How many gensets can this controller manage?
A: It can control up to 32 generators in parallel. - Q: Can I configure it via PC?
A: Yes, configuration can be done using ToolKit software or directly through the display. - Q: What communication options are supported?
A: It supports CANopen for external I/Os and PC connectivity. - Q: Which shipping methods are available?
A: We ship worldwide using FedEx, UPS, or DHL with full tracking.
