Woodward 8200-1302 Flex505 Controller | Marine ATEX LVDC

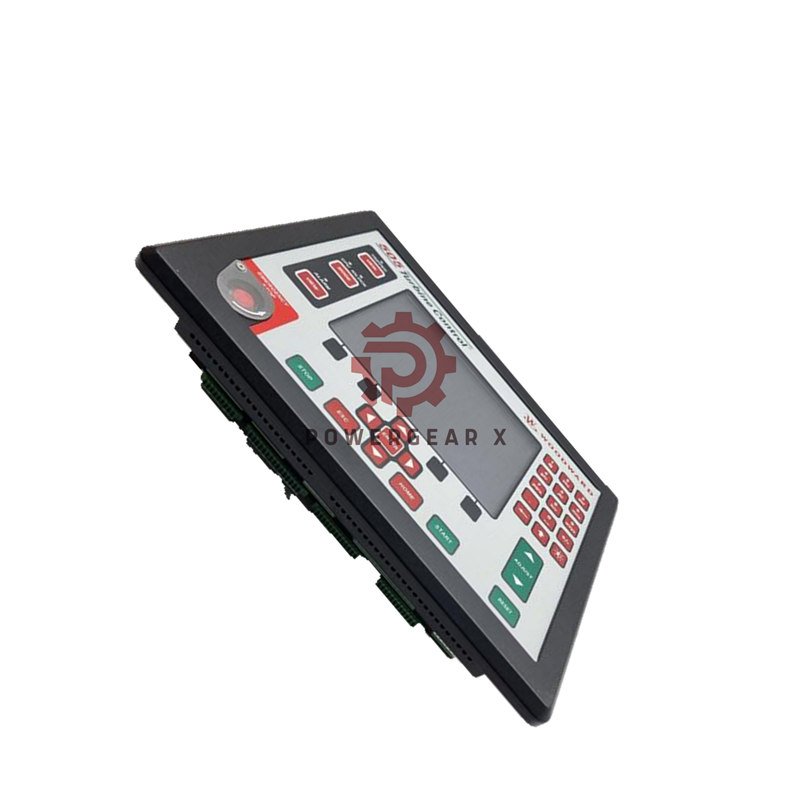

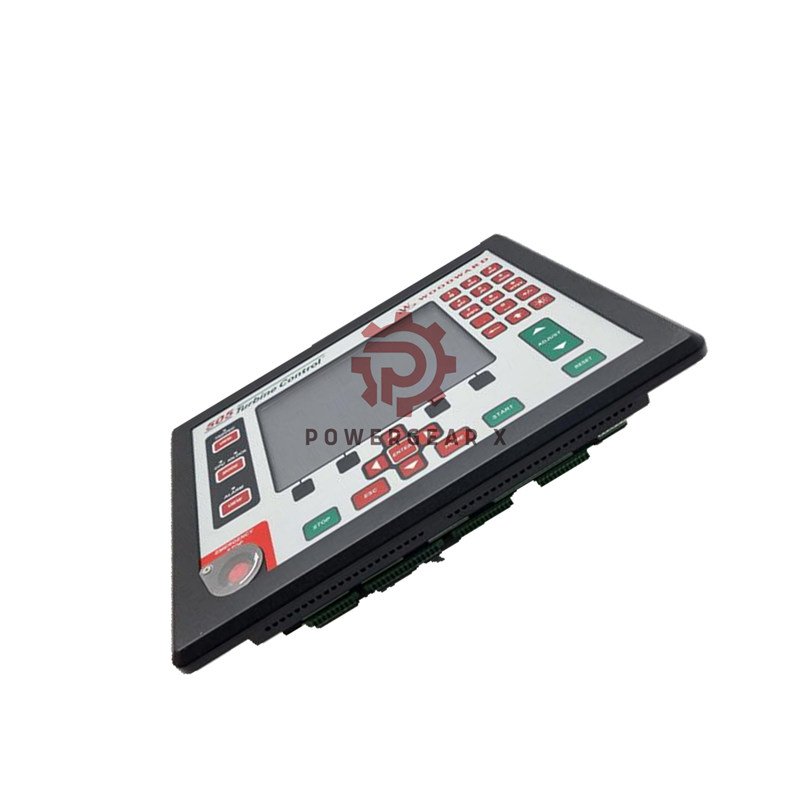

Overview

Woodward 8200-1302 Flex505 Controller is a next-generation industrial controller built for Marine and ATEX-certified systems. It offers powerful processing, enhanced communication, and flexible I/O expansion in a compact design.

Product Highlights

• Model: 8200-1302 Flex505
• Marine & ATEX compliant, LVDC power 18–32 V DC (isolated)
• Upgraded CPU for faster processing and stable performance
• Integrated 8.4” LCD display (800×600) with full keypad
• Same installation layout as existing Woodward 505 systems
• Operating temperature range: –30 °C to +70 °C (with display)
• Supports CAN distributed I/O nodes: RTCnet and LINKnet HT

Power & Environmental

• LV input: 18–36 V DC (isolated)
• HV input: 88–264 V AC or 90–150 V DC (isolated)
• Power consumption: ≤ 40 W
• Humidity: 5%–95% non-condensing
• Vibration resistance: 2 g (10–150 Hz)
• Cooling: Natural convection
• EMC compliance per EN61000-6-2 / EN61000-6-4

Communication Interfaces

• 4 × Ethernet 10/100 ports (isolated)
• 4 × CAN bus ports (1 Mbit, isolated)
• 1 × RS-232/RS-485 port (isolated)
• 1 × RS-232 service port (isolated)
• Optional GPS or Modbus TCP integration
• Real-time communication with external I/O nodes

I/O Configuration

• 2 × Speed sensor inputs (MPU/Prox) with prox power
• 8 × Analog inputs (4–20 mA) with loop power
• 6 × Analog outputs (4–20 mA)
• 2 × Actuator outputs (4–20 mA / 20–200 mA)
• 20 × Discrete inputs with contact power
• 8 × Relay outputs (Form-C)
• GAP configurable update rate: 5–160 ms

Performance & Safety

• Safe and isolated power design for hazardous zones
• Quick-response I/O for real-time process control
• Improved reliability and uptime for marine systems
• Supports redundant control configurations
• Integrated watchdog timer for fault detection
• Built-in protection against surge and voltage spikes

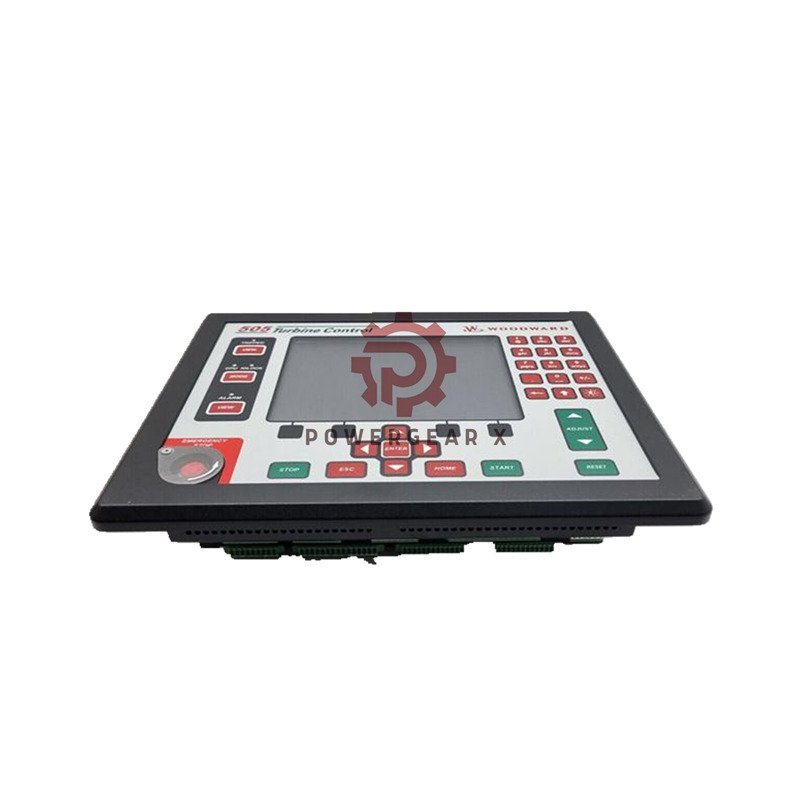

Mechanical & Installation

• Mounting: same footprint as 505 controller
• Display size: 8.4 inches, 800×600 resolution
• Front panel keypad for local control
• Housing: anodized aluminum enclosure
• Dimensions: 250 × 180 × 90 mm
• Weight: approx. 2.8 kg

Warranty & Logistics

• Standard warranty: 12 months from shipment
• Fast global delivery via FedEx, UPS, or DHL
• Each unit fully tested and factory calibrated
• Packed in anti-static and shockproof material

Key Advantages

• Advanced CPU ensures faster control loops
• High-brightness LCD for outdoor and marine use
• Multiple I/O ports for system scalability
• Designed for harsh and hazardous environments
• Seamless upgrade path for existing 505 users

FAQ

• Q: What voltage range does the 8200-1302 Flex505 support?
  A: It supports LVDC input from 18–36 V and optional HV input up to 264 V AC.
• Q: Can it operate in extreme temperatures?
  A: Yes, the Flex505 runs reliably from –30 °C to +70 °C.
• Q: What communication protocols are supported?
  A: It supports Ethernet, CAN bus, Modbus TCP, and RS-485.
• Q: Is the controller compatible with older 505 systems?
  A: Yes, it uses the same mounting and wiring layout for easy replacement.
• Q: Does the display include local control functions?
  A: Yes, the 8.4” LCD and keypad allow full configuration and monitoring.
