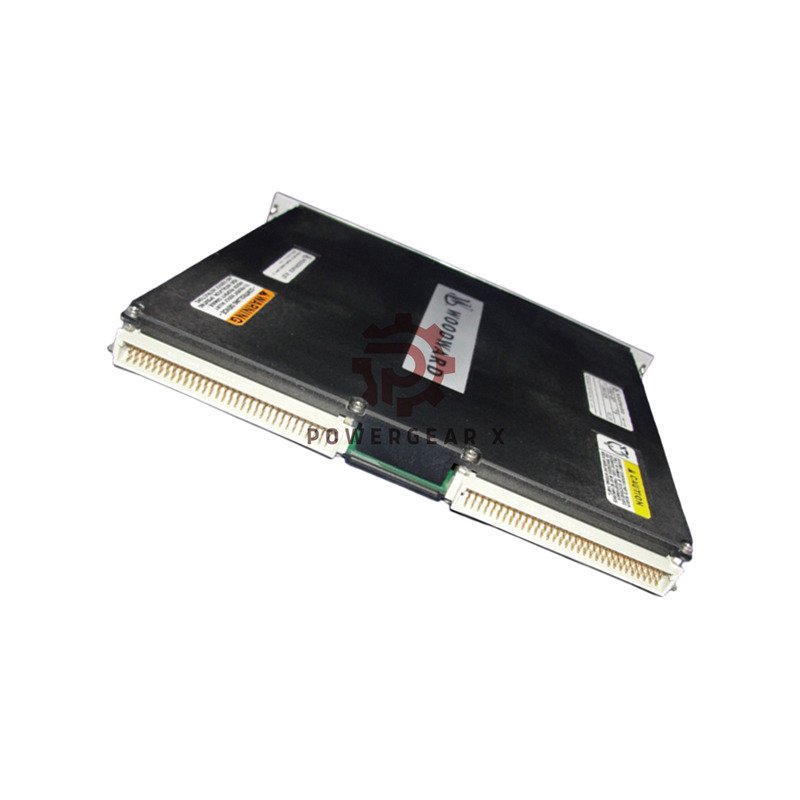

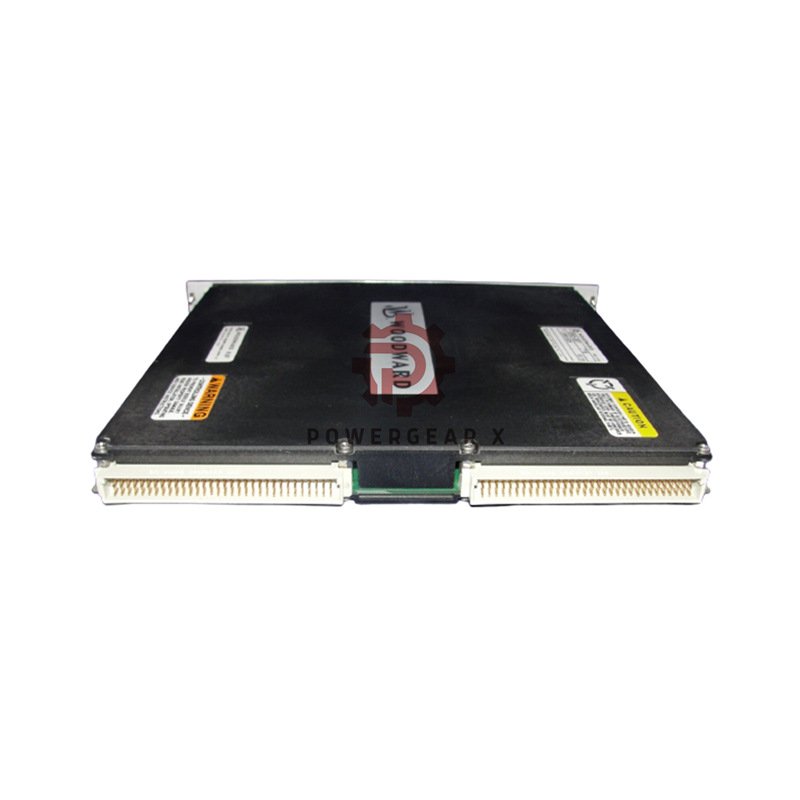

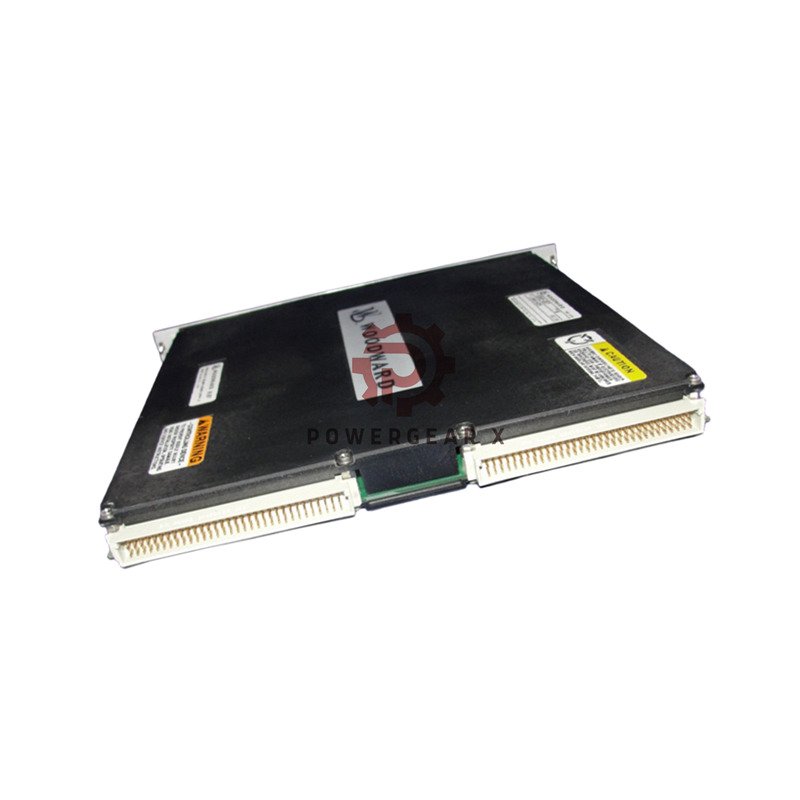

Woodward 5503-335 MicroNet 5200 CPU Module
The Woodward 5503-335 is a compact and rugged CPU module built for MicroNet 5200 systems. It delivers strong computing power for gas turbine and industrial automation control. Designed for fast, stable, and safe performance in harsh sites.
Core Highlights
- High-speed Intel Atom processor for real-time turbine control.
- Supports up to 4GB DDR3 memory for smooth multitasking.
- Clock speed up to 400 MHz for stable computing.
- Includes Ethernet, CAN, USB, and serial interfaces.
- LEDs for system status: RUN, FAULT, WATCHDOG, LINK, and STANDBY.
- Compact body size: 16 × 16 × 12 cm; Weight: 1.82 kg.
- Operating range: 0°C to +55°C; Storage: –20°C to +45°C.
- Durable under vibration, dust, and 95% humidity (non-condensing).
- Noise level under 70 dBA for quieter operations.
- Max altitude: 4000 m; Overvoltage category: II; Protection: IP20.
Installation & Use
- Fits easily into a MicroNet chassis with Remote RTN module.
- Connect power, Ethernet, and CAN lines before start-up.
- Check FAULT and RUN LEDs after power on.
- Ground connections properly to prevent EMI or I/O loss.
- 12-month warranty for all 5503-335 CPU modules.
Shipping & Package
- Includes: 1 × Woodward 5503-335 CPU Module.
- Includes: Mounting set, quick start guide, safety note.
- Ships safely via FedEx, UPS, or DHL.
- Packed in anti-static bag with shock-proof material.
Technical Data Overview
- Brand: Woodward
- Model: 5503-335
- System: MicroNet 5200 Gas Turbine Controller
- Flash Memory: 64 MB | RAM: 128 MB
- Power Input: 24 VDC nominal
- Cooling: Natural convection
- EMI Resistance: IEC 61000-4-3 compliant
- Shock Limit: 30 g peak; Vibration: 5–2000 Hz
FAQ
- Q: What CPU architecture does it use?
A: It uses the Intel Atom platform for stable embedded control. - Q: Can I connect it to existing PLC systems?
A: Yes, it supports Modbus and PROFIBUS for easy integration. - Q: What is the startup time after power on?
A: System boots fully in under 30 seconds under standard load. - Q: Is the product field serviceable?
A: Yes, trained staff can replace or upgrade it easily in the field. - Q: What is the typical lifespan of the 5503-335?
A: It operates reliably for over 10 years under normal use.
