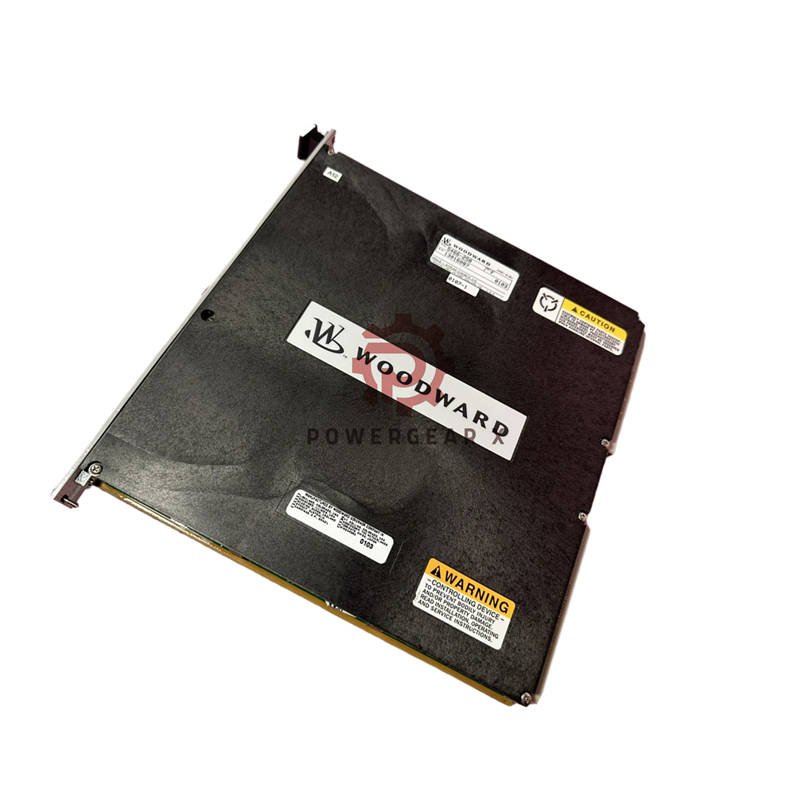

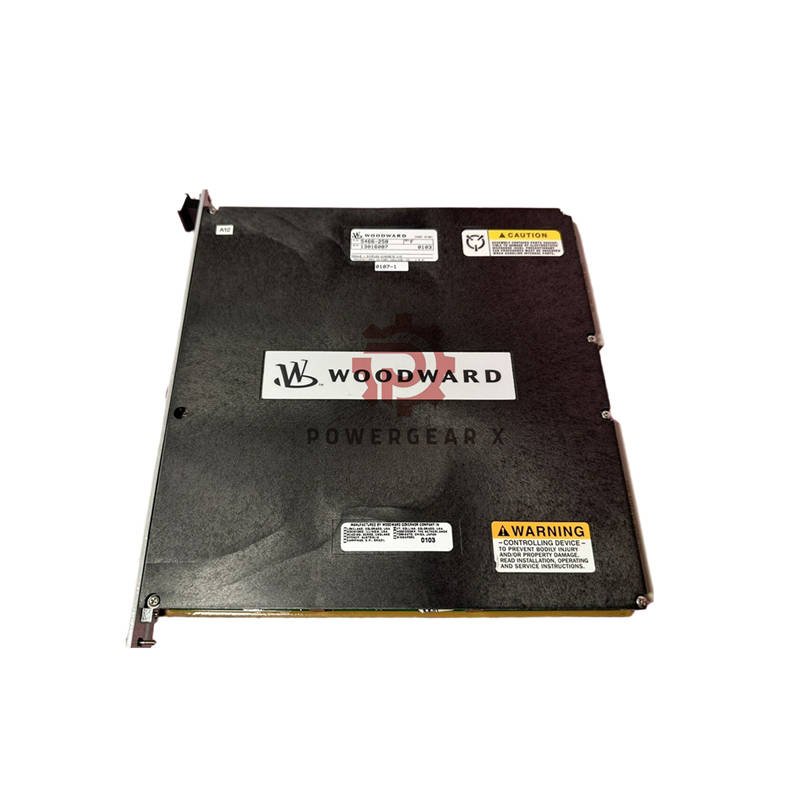

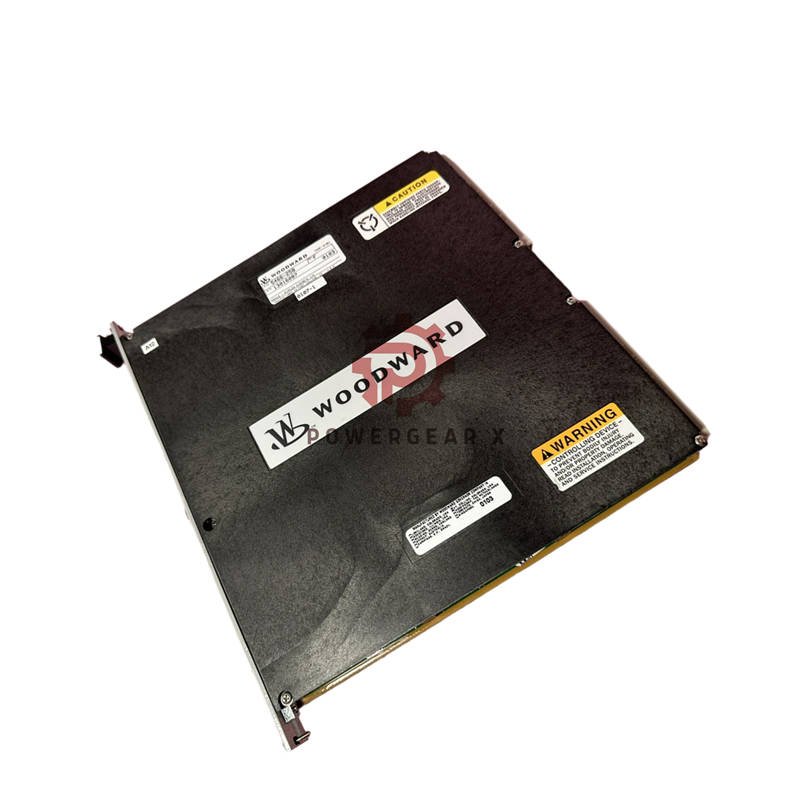

Woodward 5466-258 Discrete I/O Module | 48 Inputs & 24 Outputs
The Woodward 5466-258 is a Simplex Discrete I/O Module designed for MicroNet Digital Control and Vertex-Pro systems. It provides 48 optically isolated inputs and 24 outputs, offering reliable digital interfacing for industrial automation. Built for durability and precision, this USA-made module ensures efficient control communication with minimal downtime.
Technical Specifications
- Manufacturer: Woodward
- Model: 5466-258
- Product Type: Discrete I/O Module
- Input Voltage: 18 to 32 Vdc
- Power Supply Input: 18 to 32 Vdc
- Power Consumption: 6.5 Watts at 24 Vdc
- Operating Temperature: 0 to 55°C
- Storage Temperature: -40 to +105°F
- Air Quality Rating: Pollution Degree 2
- Overvoltage Category: Category II
- Control Type: Vertex-Pro Motor-Driven Compressor
- Certifications: IL, ATEX, CE(EMC), DNV, ABS, LRS
- Mounting: DIN Rail / Chassis Slot (8 or 14 Slot)
- Weight: 48 lbs (22 kg) in Chassis
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL Available
- Origin: United States (USA)
Main Features
- Supports both Simplex and Redundant configurations.
- Compatible with MicroNet Plus and Vertex-Pro systems.
- Offers 48 digital inputs and 24 digital outputs.
- Inputs are optically isolated for superior signal integrity.
- Front panel includes LED indicator for fault detection.
- Two high-density connectors link to discrete/analog FTMs.
- Allows hot-swap replacement of faulty nodes without system shutdown.
- Robust design for Class I, Division 2 hazardous areas (Groups A-D).
Installation Overview
- Insert the module into the control chassis and secure it with two screws.
- Connect 24 Vdc power and network cables before powering up.
- Set module address switches according to your system configuration.
- Modules mount on a DIN rail for quick installation and serviceability.
- Replacement nodes can be installed and recognized instantly after reset.
Application Scenarios
- Used in compressor and turbine control systems.
- Ideal for process automation and motor control units.
- Perfect for redundant or simplex industrial configurations.
- Integrates seamlessly with MicroNet I/O subsystems.
FAQ
- Q: What type of power supply does the 5466-258 use?
A: It operates on 18 to 32 Vdc, typically 24 Vdc nominal. - Q: Can I use the module in a redundant system?
A: Yes, it supports both simplex and redundant configurations. - Q: How many discrete channels does this module provide?
A: It features 48 inputs and 24 outputs in total. - Q: What certifications does the module carry?
A: It is certified under IL, ATEX, CE(EMC), DNV, ABS, and LRS standards. - Q: What if a node fails during operation?
A: You can replace it in real time by matching the address switches and restarting communication.
