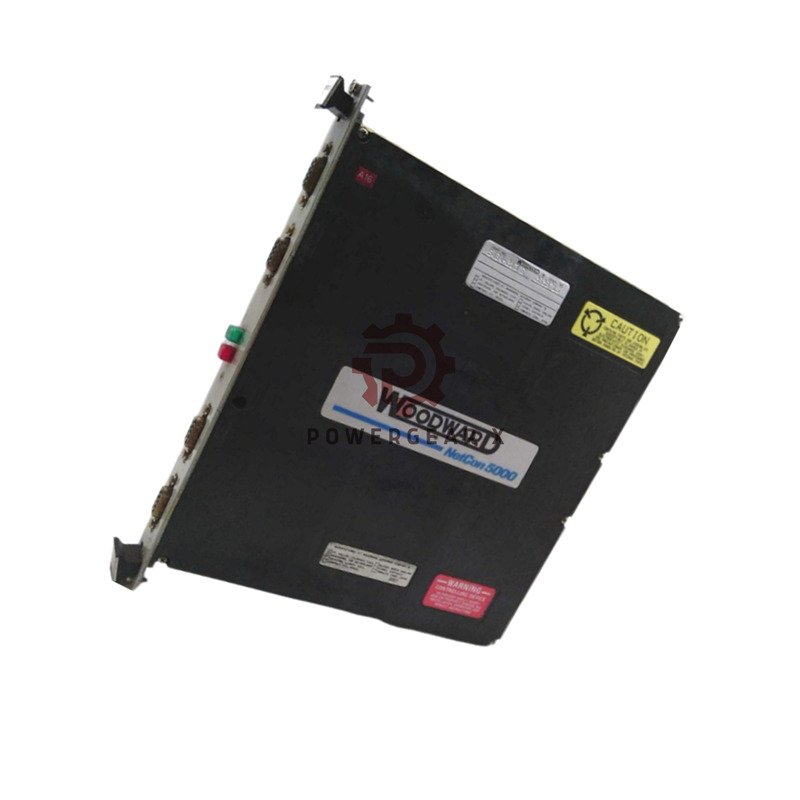

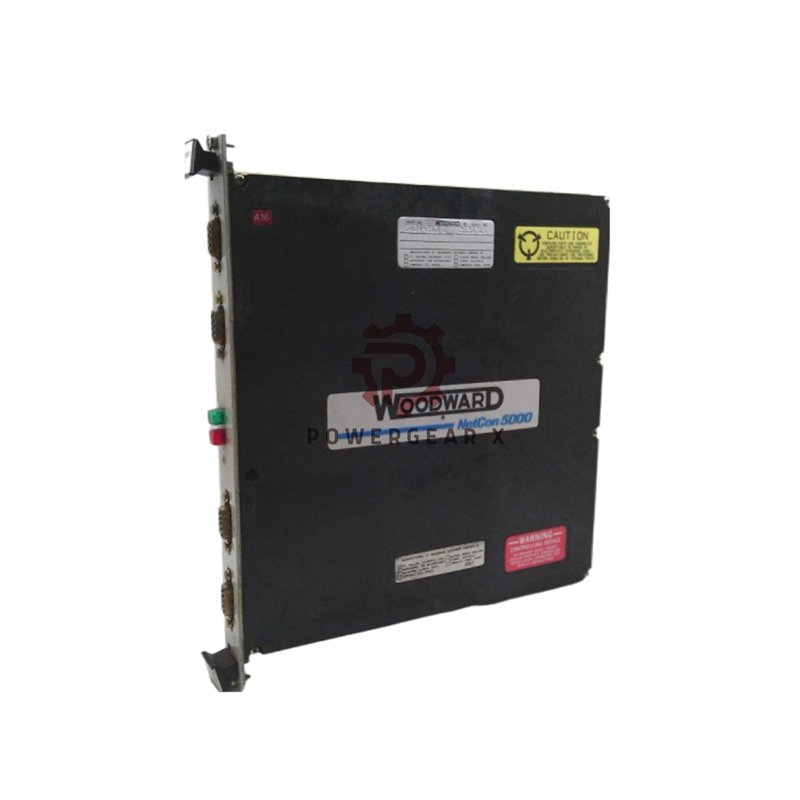

Woodward 5464-213 Netcon Serial Input/Output Module

Woodward 5464-213 is a compact Netcon Serial I/O Module for turbine control. It connects VME systems with multiple serial devices and supports RS-232, RS-422, and RS-485 protocols. Reliable, efficient, and easy to integrate.

Core Highlights

Four serial ports (A–D) supporting RS-232, RS-422, and RS-485.
Built-in 68030 processor for data management.
Communication speed: 110–38.4 Kbaud adjustable.
Supports Modbus RTU and Modbus ASCII.
Operating voltage: 10–60 VDC.
Power input: 24 VDC nominal.
Operating range: -25°C to +70°C.
Memory: 4 KB Dual-Port RAM + 64 KB PROM.
Front LED indicator for fault detection.
Designed for panel mounting and compact spaces.

Technical Specifications

Manufacturer: Woodward
Model: 5464-213
Series: 5400 Netcon Series
Product Type: Serial Input/Output Module
Voltage Input: 24 VDC nominal, 10–60 VDC range
Operating Current: 12 V typical
Ports: 4 Serial Ports (2 × RS-232, 2 × RS-232/RS-422/RS-485)
Baud Rate: 110 to 57.6 Kbaud configurable
Processor: Motorola 68030
Indicators: 1 FAULT LED
Mounting: Panel Mount, Standard 19-inch rack fit
Size: 30 cm × 20 cm × 25 cm
Weight: 0.73 kg
Origin: United States
Software: Modbus RTU / ASCII support
Protection: Reverse polarity and surge suppression
Isolation: 1500 Vrms channel-to-channel

Installation & Operation

Mount securely on a flat, grounded panel or rack.
Connect power using 24 VDC regulated source.
Ensure proper cable shielding for RS-485 links.
Configure baud rate and parity using system software.
Observe LED for fault or communication activity.

Packing & Shipping

Includes one Woodward 5464-213 module, mounting kit, and quick setup sheet.
Packed in anti-static foam with reinforced carton protection.
Delivered worldwide via FedEx, UPS, or DHL.

FAQ

Q: What baud rates can the 5464-213 support?
A: It supports 110 to 57.6 Kbaud with adjustable settings for all ports.
Q: Can I mix RS-232 and RS-485 connections simultaneously?
A: Yes, ports A/B are RS-232; ports C/D can be RS-232, RS-422, or RS-485.
Q: Is this module suitable for SCADA integration?
A: Yes, it fully supports Modbus protocols for SCADA and PLC systems.
Q: Does it have built-in diagnostic LEDs?
A: It includes one fault LED to monitor operational status.
Q: What power supply should I use?
A: Use a 24 VDC industrial supply within a 10–60 VDC range.
