Product details
Product Overview

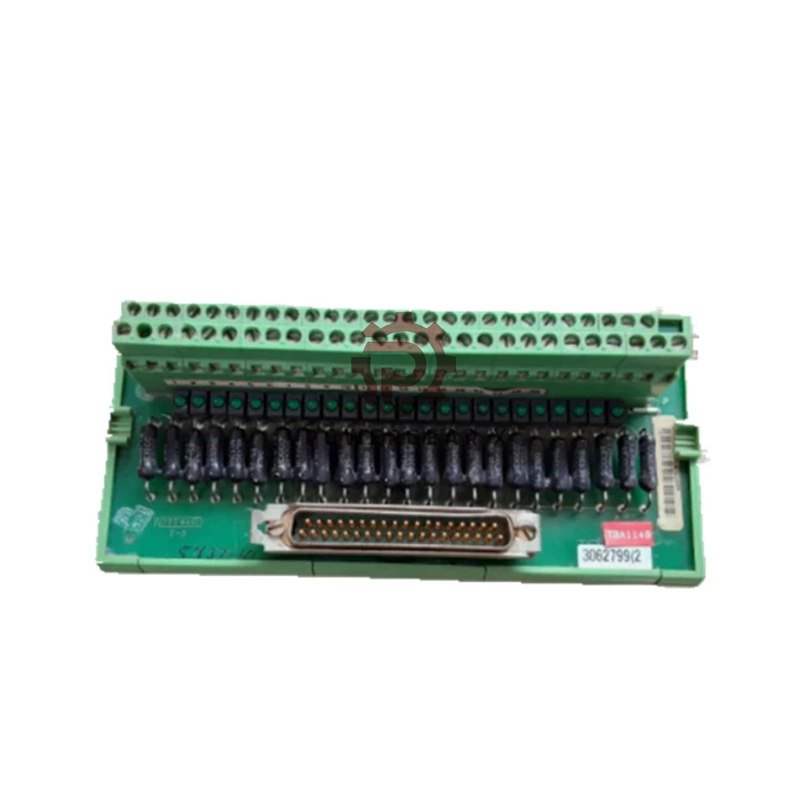

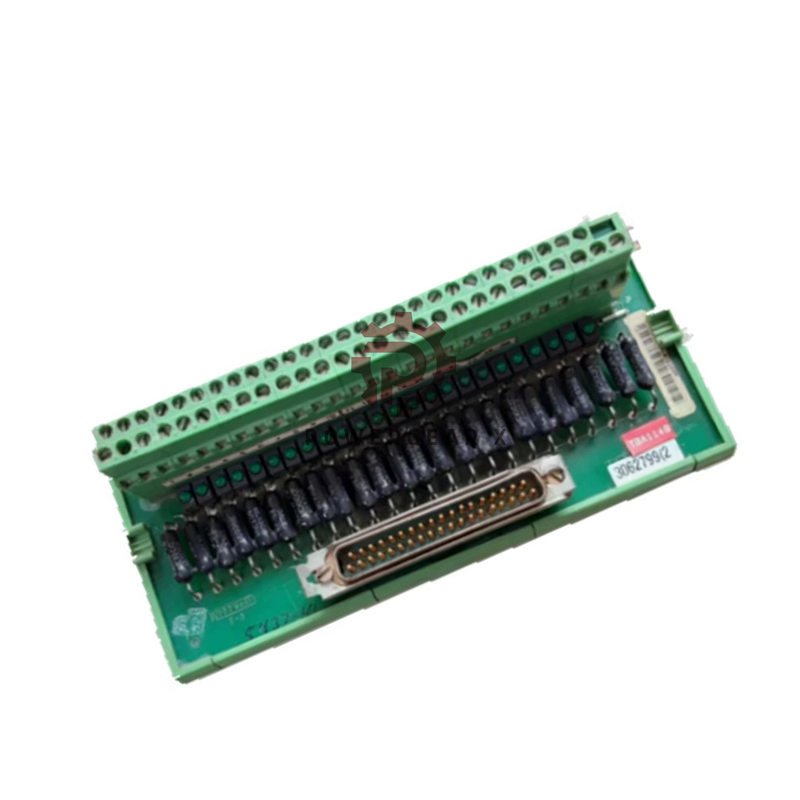

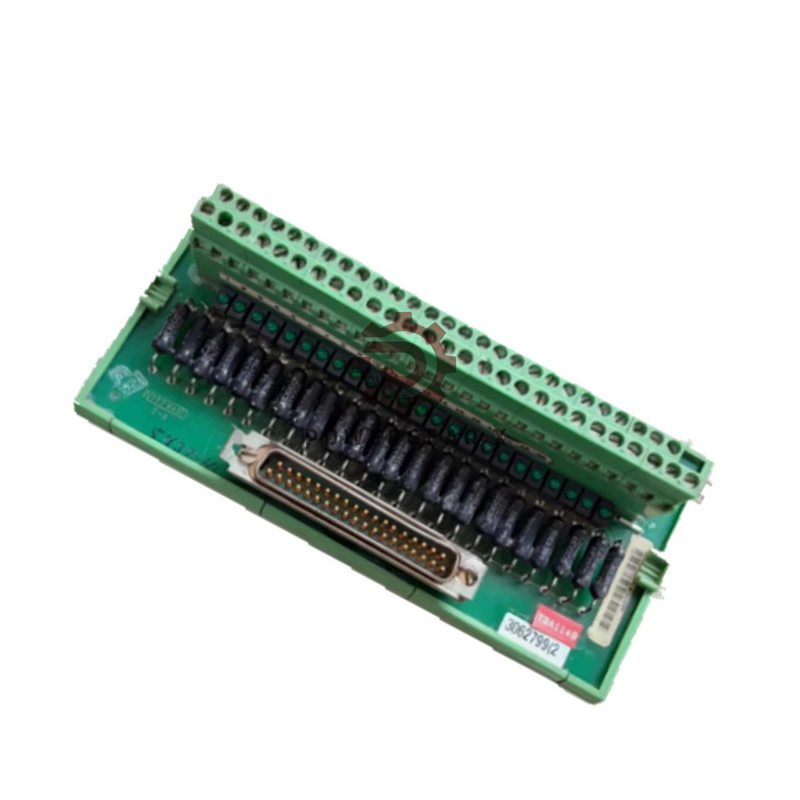

- Part Number: 5437-079
- Manufacturer: Woodward
- Product Type: NetCon Duplex Field Terminal Module
- Temperature Range: 0°C to +55°C
- Shock Standard: US MIL-STD-810C
- Vibration Compliance: Lloyd’s ENV2 test
- Application: Relay module interface and control
- Mounting: Rack-based modular design
Key Features
- 37-pin connector for full relay compatibility
- Supports duplex relay module configurations
- Delivers reliable load rejection under rapid conditions
- Provides stable relay signal transmission
- Designed for long-term use in harsh environments
- Strong isolation between I/O channels for system safety
- Optimized for MicroNet Plus prime mover systems
Technical Specifications
- Operating Voltage: 24 V DC nominal
- Signal Type: Discrete relay I/O
- Relay Contact Rating: 2 A @ 30 V DC
- Insulation Resistance: >100 MΩ @ 500 V DC
- Update Rate: Configurable from 5 ms to 160 ms
- Response Delay: <1 ms typical
- Protection: Overcurrent and short-circuit protected
- Weight: 0.85 kg
- Mounting Width: 6 TE
System Integration
- Compatible with Woodward MicroNet Plus controllers
- Interfaces directly with NetCon relay modules
- Supports DLE fuel control and surge detection features
- Ideal for marine and naval automation systems
- Ensures consistent performance in mission-critical control
Benefits
- Fast and precise relay signal communication
- Reduced maintenance through rugged construction
- Enhanced control accuracy in complex systems
- Reliable operation under vibration and shock conditions
- Extended operational life with low downtime
Warranty & Shipping
- Includes a 12-month factory warranty
- All units are factory tested before dispatch
- Ships worldwide via FedEx, UPS, or DHL
- Delivered in anti-static, protective packaging
FAQ
- Q: What is the primary function of the Woodward 5437-079?
A: It serves as a field terminal module for relay control in MicroNet Plus systems. - Q: Can the module handle harsh vibration environments?
A: Yes, it complies with Lloyd’s ENV2 vibration standards. - Q: What connector type does the 5437-079 use?
A: It features a 37-pin interface for duplex relay connections. - Q: Does it support redundant configurations?
A: Yes, it allows duplex operation for high system reliability. - Q: How should the unit be powered?
A: The terminal operates on a 24 V DC power input.
