Voltage Output Module – Allen-Bradley 1746-NO4V

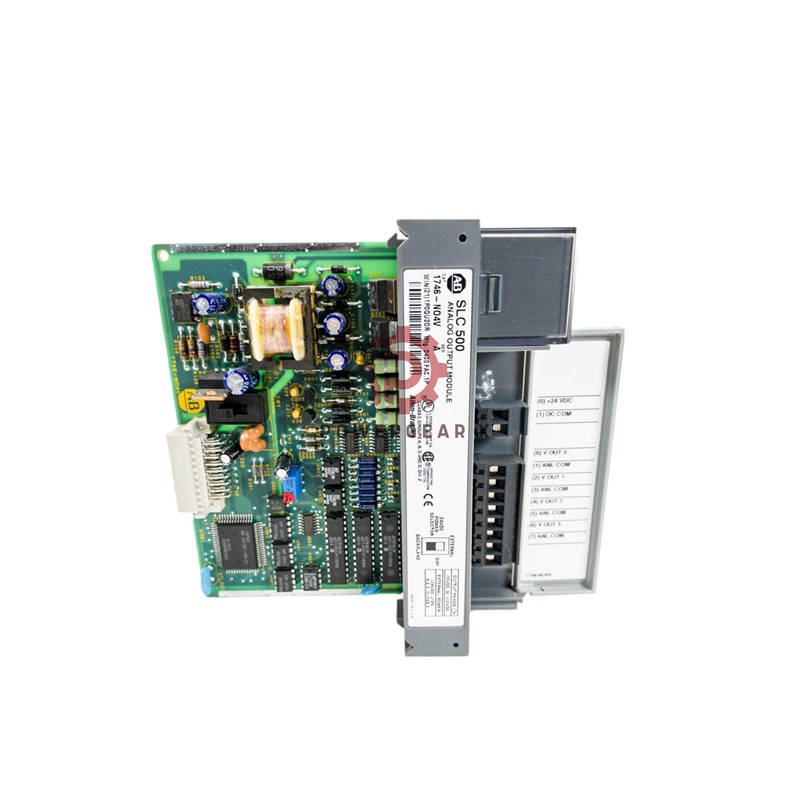

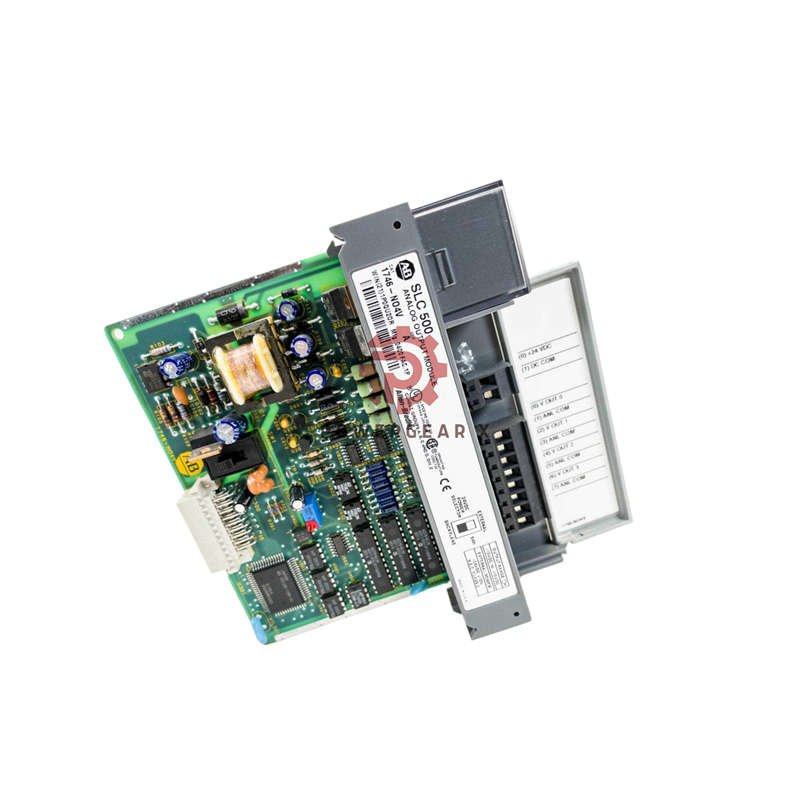

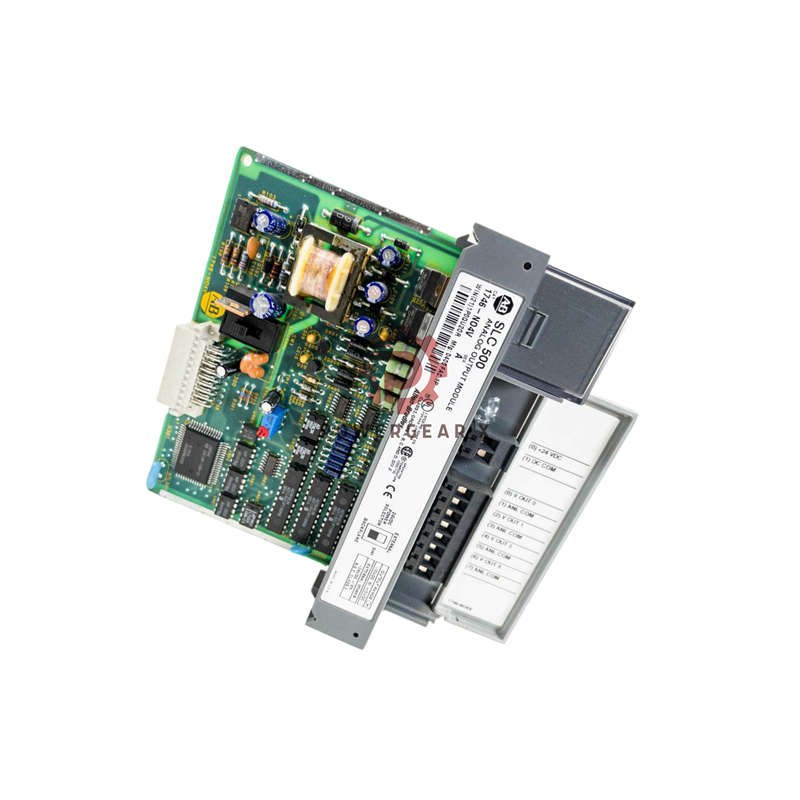

Allen-Bradley 1746-NO4V SLC 500 Analog Output Module – Precision Voltage Control

The 1746-NO4V is a high-performance analog output module. It works with Allen-Bradley SLC 500 PLC systems. This module provides four precise voltage output channels. It delivers signals from -10 to +10 VDC. Perfect for industrial control applications requiring accurate voltage control.

Detailed Technical Specifications

• Brand: Allen-Bradley
• Model: 1746-NO4V
• Series: SLC 500
• Output Type: Voltage
• Output Range: -10 to +10 VDC
• Channels: 4
• Resolution: 14 bits
• Update Time: 512 microseconds
• Step Response: 2.5 milliseconds
• Backplane Current: 55mA @ 5V, 145mA @ 24V
• Max Load Current: 10 mA per channel
• Isolation: 500 VDC field to backplane
• Operating Temperature: 0-60°C (32-140°F)

Installation & Setup

Install the 1746-NO4V in any SLC 500 chassis slot. Keep away from power supplies and high voltage lines. Use #14 AWG wire for connections. The removable terminal block makes wiring simple. Never remove the module while power is on.
