Vibro-Meter CA202 144-202-000-216 | Industrial Piezoelectric Accelerometer Sensor

Vibro-Meter CA202 Piezoelectric Accelerometer | Model 144-202-000-216

• Brand: Vibro-Meter® (Meggitt)
• Model: CA202
• Part Number: 144-202-000-216
• Warranty: 12 Months
• Shipping: FedEx / UPS / DHL
• Contact: sales@powergearx.com |
  +86 18030005825

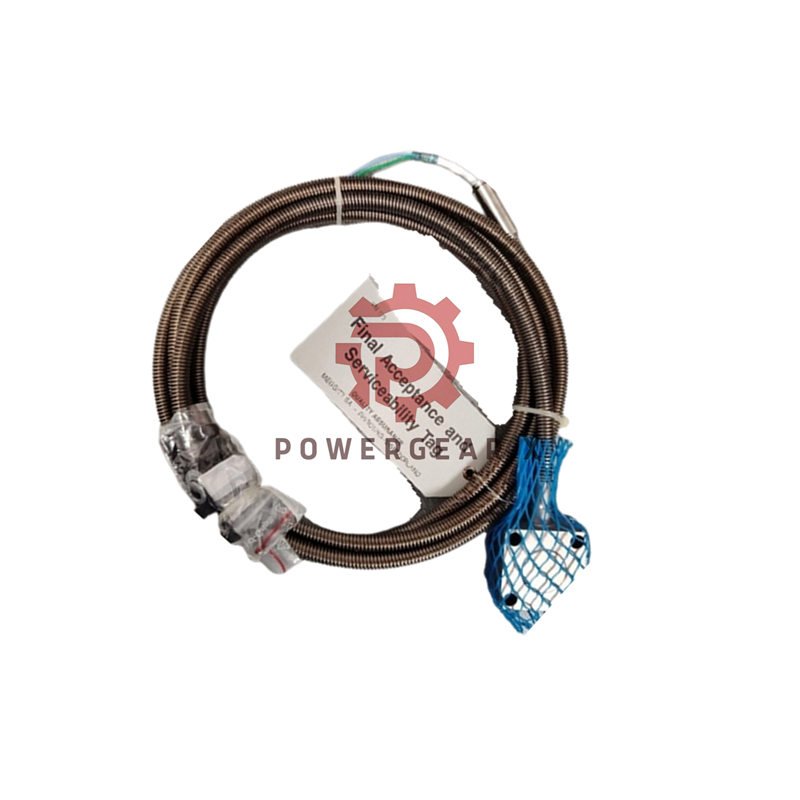

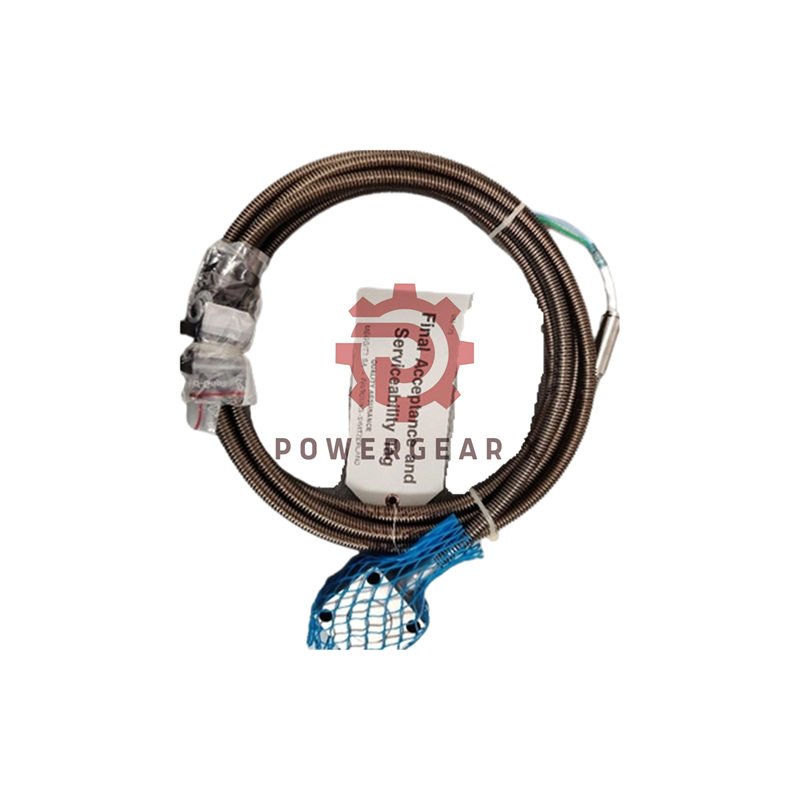

CA202 piezoelectric accelerometer delivers stable, precise vibration detection for heavy industrial applications. The 144-202-000-216 version features a 6 m integral cable and robust stainless-steel design, suitable for long-term use in demanding environments.

Main Advantages

• High Sensitivity: 100 pC/g ±5%
• Frequency Range: 0.5 Hz – 6000 Hz
• Wide Temperature Range: −55°C – +260°C (sensor)
• Dynamic Range: 0.01 g – 400 g peak
• Shock Resistance: up to 1000 g peak
• Noise-free stainless-steel cable (6 m)
• Hermetically sealed and moisture-proof body
• Maintenance-free, charge output design

Technical Overview

• Input Power: None required
• Signal Type: 2-pin charge output, insulated from case
• Resonant Frequency: > 22 kHz
• Transverse Sensitivity: ≤ 3%
• Insulation Resistance: ≥ 10⁹ Ω
• Capacitance: 5000 pF (pin-to-pin)
• Mounting Torque: 15 N•m (11.1 lb-ft)
• Material: Austenitic stainless steel (1.4441)
• Protection Hose: 1.4541 stainless steel, hermetically welded
• Weight: Sensor 250 g | Cable 135 g/m

Ordering Details

• Type: CA202
• Designation: Standard version with 6 m integral cable
• Part Number: 144-202-000-216
• Warranty: 12 months factory warranty

Suffix Code Breakdown

• 144-202-000-216
  • 144 → Vibro-Meter Product Line
  • 202 → CA202 Series
  • 000 → Standard Industrial Model
  • 216 → 6 m Integral Cable Version

Extra Product Highlights

• Engineered for turbines, compressors, and test benches
• Corrosion-proof, leak-tight construction
• High linearity across the full measuring range
• Minimal thermal drift, stable up to +280°C (short-term)
• Compatible with IPC70x signal conditioners

FAQs

• What makes the 144-202-000-216 version unique?
• It includes a 6 m integral cable for extended installation flexibility in industrial sites.
• Is this model suitable for non-hazardous areas?
• Yes. The 144-202-000-216 is the standard CA202 version for general industrial environments.
• What type of housing does CA202 use?
• It uses austenitic stainless steel (1.4441), providing strength and corrosion resistance.
• Can it operate in humid conditions?
• Yes. It’s hermetically sealed to block humidity, steam, and oil.
• How is the CA202 calibrated?
• Each sensor is factory-calibrated for precise 100 pC/g response; no re-calibration required.
