Product details

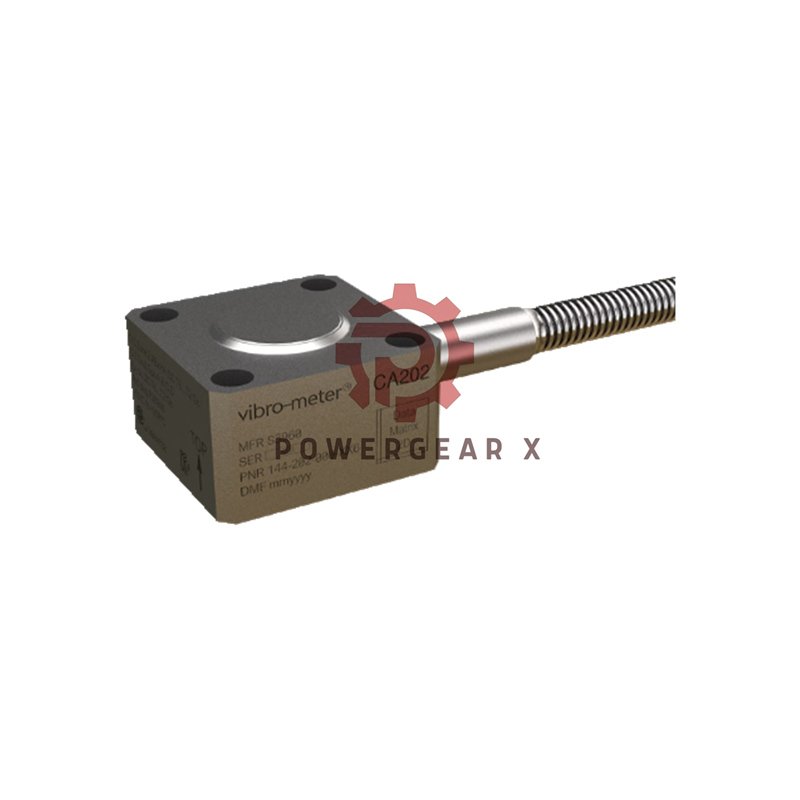

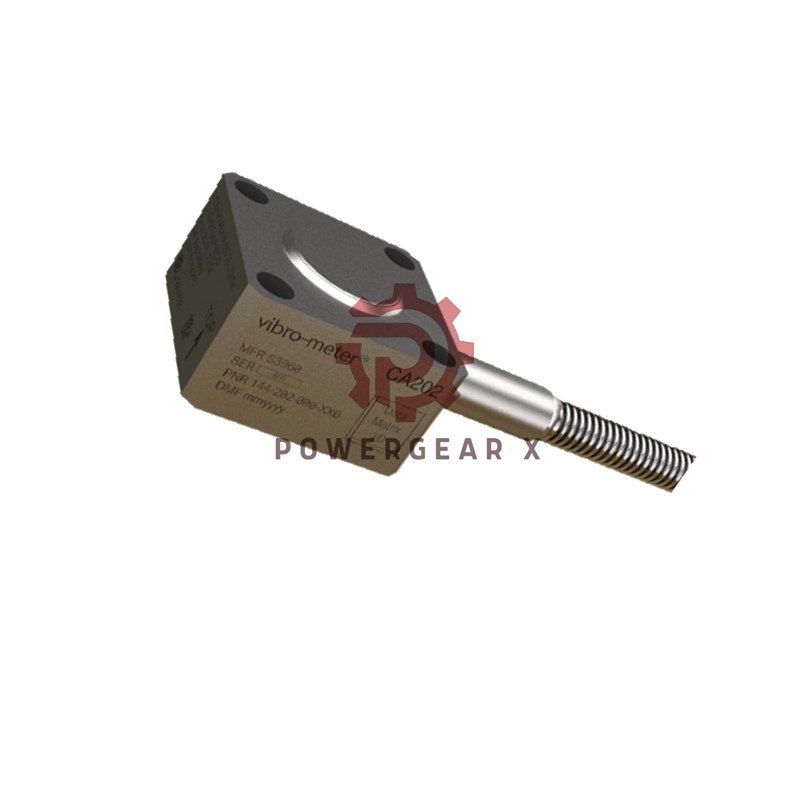

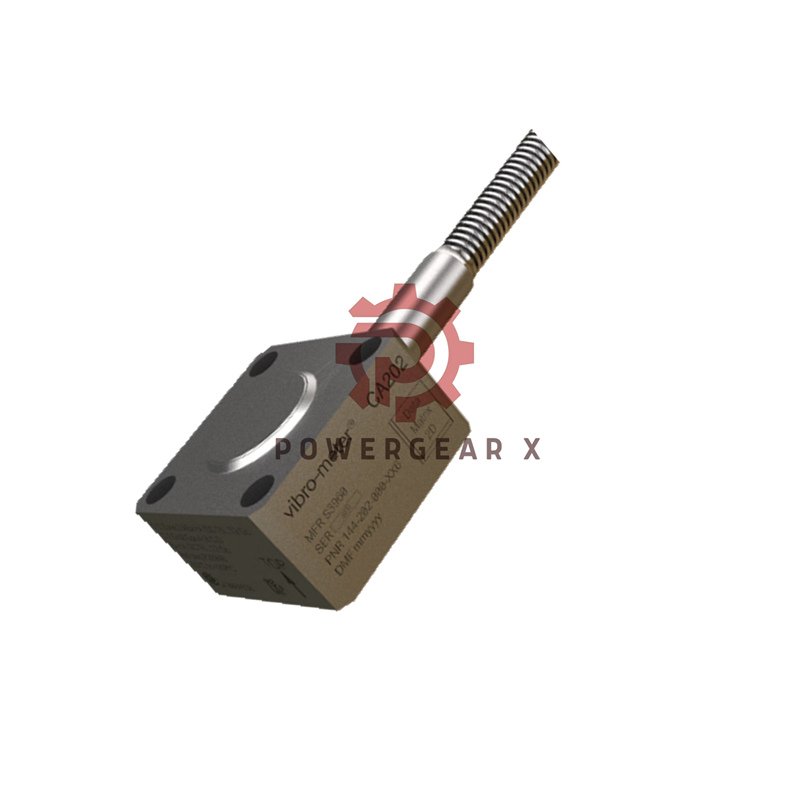

Vibro-Meter CA202 Piezoelectric Accelerometer (Model 144-202-000-206)
- Brand: Vibro-Meter®
- Model: 144-202-000-206
- Type: CA202 Piezoelectric Accelerometer
- Cable Length: 3 meters (integral)
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL available worldwide
The Vibro-Meter CA202 (144-202-000-206) is a precision piezoelectric accelerometer built for high-sensitivity vibration monitoring in harsh industrial and hazardous environments. It ensures long-term reliability with a sealed stainless-steel body and integral cable.
Main Highlights
- High sensitivity: 100 pC/g ±5%
- Dynamic range: 0.01 – 400 g peak
- Overload capacity: up to 500 g peak
- Frequency response: 0.5 – 6000 Hz (±5%)
- Hermetically welded stainless-steel case
- Temperature range: −55°C to +260°C
- Integral stainless-steel hose for protection
Technical Data
- Signal output: 2-pin system, charge mode
- Capacitance: 5000 pF (sensor), 105 pF/m (cable)
- Internal insulation: ≥10⁹ Ω
- Transverse sensitivity: ≤3%
- Resonant frequency: >22 kHz
- Shock resistance: up to 1000 g peak
- Base-strain sensitivity: 0.15×10⁻³ g/µε
- Material: Austenitic stainless steel 1.4441 / 1.4541
- Weight: 250 g (sensor), 135 g/m (cable)
Tree-Structured Model Overview
- CA202 Series
- 144-202-000-206 — Standard version, 3 m cable
- 144-202-000-207 — Ex-certified, 5 m cable
- 144-202-000-210 — High-temp variant
Product Advantages
- High accuracy for industrial vibration detection
- Ideal for use in hazardous or high-temperature zones
- Maintenance-free operation with no power needed
- Rugged construction ensures long lifespan
- Proven in heavy-duty industrial monitoring
Ordering Information
- Type: CA202
- Designation: Standard version with 3 m integral cable
- Ordering Number: 144-202-000-206
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
FAQs
- Q: What makes the 144-202-000-206 suitable for hazardous environments?A: It features a hermetically sealed design with stainless-steel construction and internal insulation.
- Q: Can it withstand extreme temperatures?A: Yes, it operates continuously from −55°C to 260°C, and can survive short-term up to 280°C.
- Q: What is the output signal type?A: It provides a differential charge output compatible with IPC70x signal conditioners.
- Q: Is recalibration required?A: No, the sensor maintains stable sensitivity and requires no frequent calibration.
- Q: Which shipping methods are available?A: Orders can be shipped via FedEx, UPS, or DHL upon request.
