Efficient Motor Control for Pumps and Fans

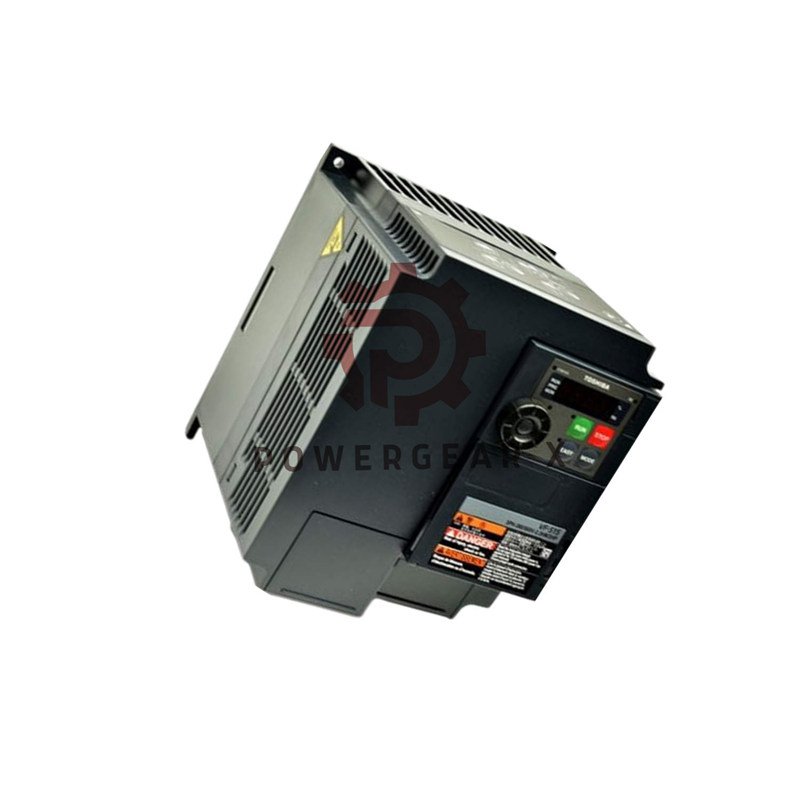

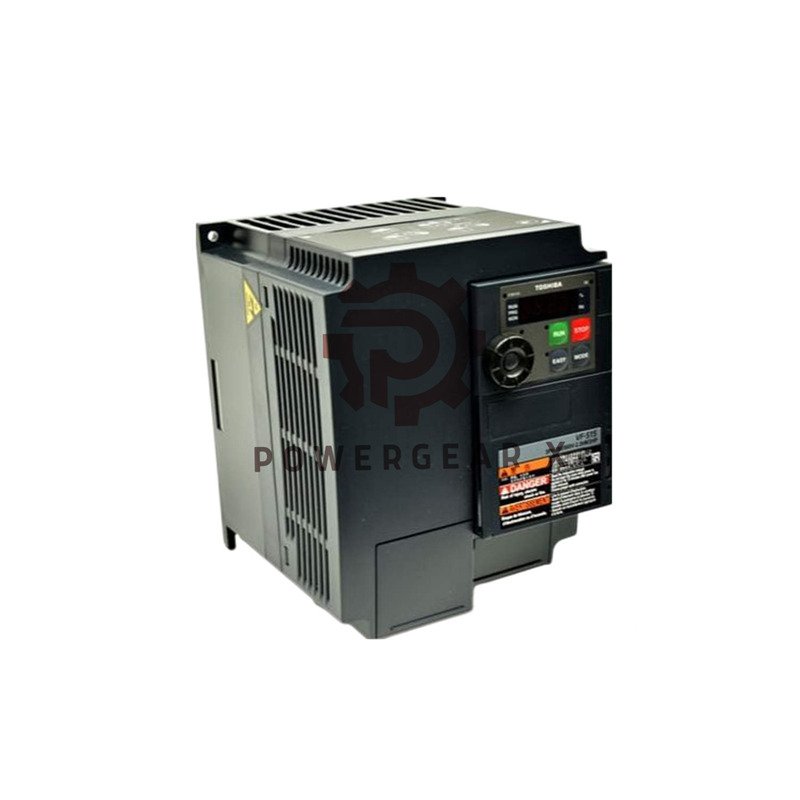

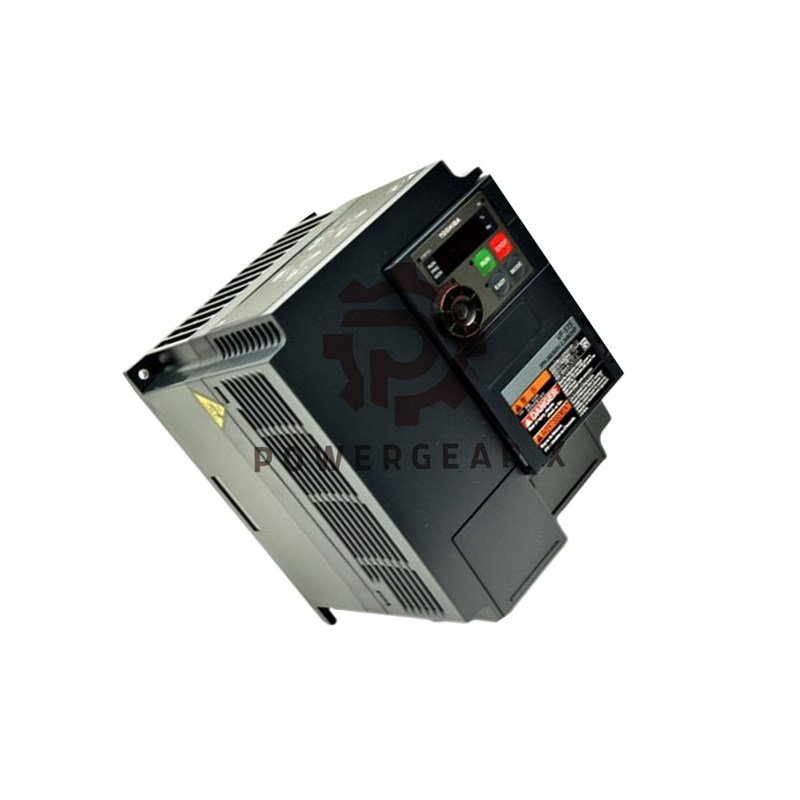

Control your equipment smoothly with the Toshiba VFS15-4022PL1-W1. This variable frequency drive saves energy. It is perfect for pumps, fans, and blowers. The drive uses 460V three-phase power. It manages motors up to 3 horsepower. Enjoy reliable performance and simple setup.
Complete Product Specifications
- Brand & Model: Toshiba VFS15-4022PL1-W1
- Product Series: VF-S15 Series Variable Frequency Drive
- Motor Power: 3 Horsepower (HP) Output
- Output Current: 5.5 Amps
- Input Power: 460 Volts AC, Three Phase
- Output Power: 460 Volts AC, Three Phase
- Control Method: Sinusoidal PWM Control
- Frequency Range: 0.1 Hz to 500.0 Hz
- Default Range: 0.5 Hz to 60 Hz
- Torque Profile: Variable Torque (VT) Optimized
- Enclosure Rating: IP20 (Wall-Mount)
- Display: 4-Digit Seven-Segment LED (EOI Panel)
- Communication Port: Two-Wire RS485 for network control
- Built-in Filter: High-Attenuation EMC Filter for noise reduction
- Fault Memory: Stores last 8 faults with operation data
- Ambient Temperature: -10°C to 50°C (14°F to 122°F)
- Ambient Humidity: Up to 95% (Non-Condensing)
- Operating Altitude: Up to 1000 meters without derating
- Safety Certifications: UL, cUL (CSA), CE Compliant
Why You’ll Love This Drive
- Energy Saver: Variable torque mode cuts power costs for pumps and fans.
- Strong Protection: Built-in EMC filter protects against electrical noise.
- Easy Troubleshooting: Remembers the last 8 faults to help find problems fast.
- Ready to Connect: RS485 port allows easy system integration and remote control.
- Trusted Brand: Toshiba quality ensures long life and steady operation.
- Simple Mounting: Compact, wall-mount design fits in small spaces.
Quick Installation Guide
- Mount the drive vertically on a solid, flat surface.
- Keep space around it for air to flow and cool it.
- Connect the 460V three-phase input power wires.
- Connect the wires to your 3HP motor.
- Use shielded cable for the control signals if needed.
- Set the basic motor parameters before starting.
Warranty and Fast Shipping
- Full Warranty: This product has a 12-month warranty.
- Reliable Shipping: We ship quickly with FedEx, UPS, or DHL.
Typical Uses
- Water supply and circulation pumps.
- HVAC system fans and exhaust blowers.
- Industrial cooling fans and air handlers.
- Other centrifugal load applications.
Expert Questions & Answers
Q: Is this VFS15-4022PL1-W1 drive good for a constant torque load like a conveyor?
A: No. This model is for variable torque loads (pumps, fans). For conveyors, you need a constant torque model from Toshiba.
Q: Can I run a 3HP 230V motor with this 460V drive?
A: No. The motor voltage must match the drive output. This drive outputs 460V. Use it only with 460V motors.
Q: How do I clear the fault history log on the drive?
A: You can clear it from the keypad. Navigate to the fault history menu. There is an option to reset the log.
Q: The motor hums but doesn’t turn. What should I check?
A: First, check the output wiring to the motor. Then, verify the motor parameters (like current and RPM) are set correctly in the drive.
Q: My pump starts with a jolt. How can I make it smoother?
A: Increase the “acceleration time” parameter in the drive. This makes the motor speed ramp up more slowly and gently.
