Product Overview

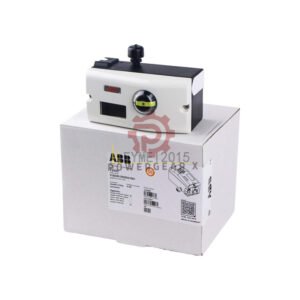

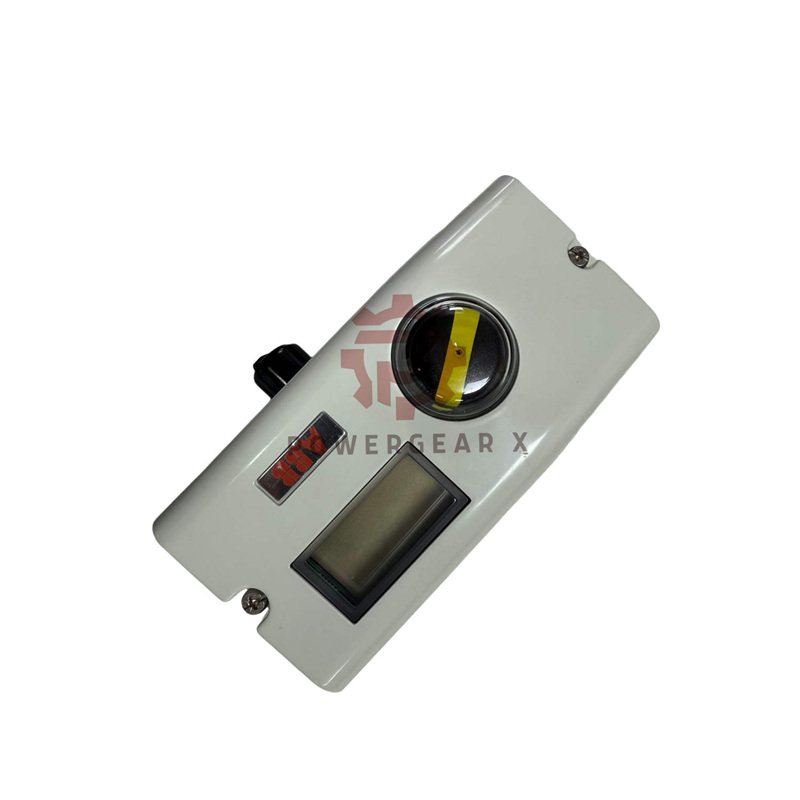

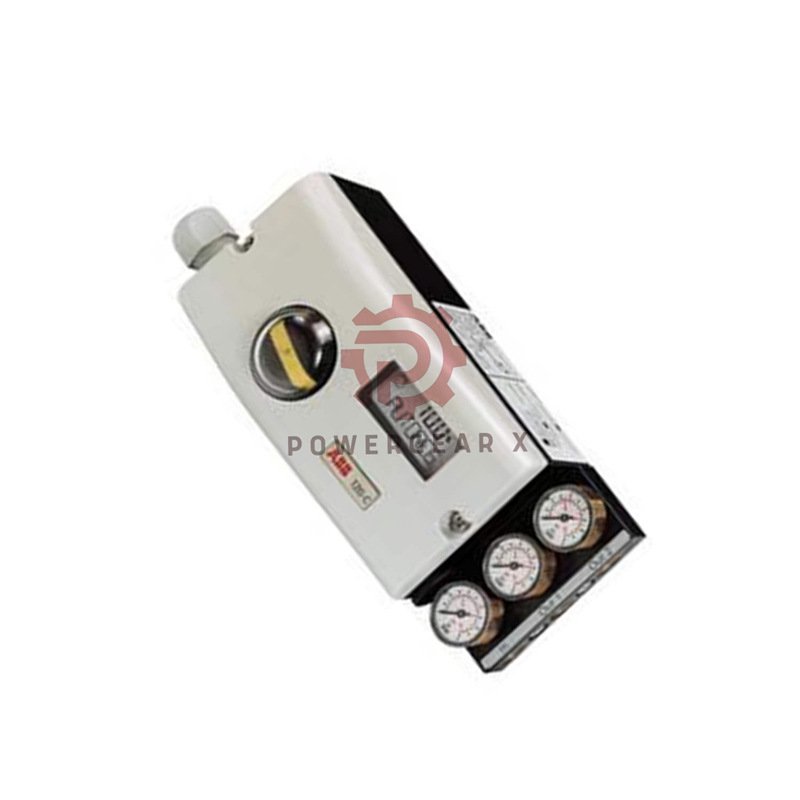

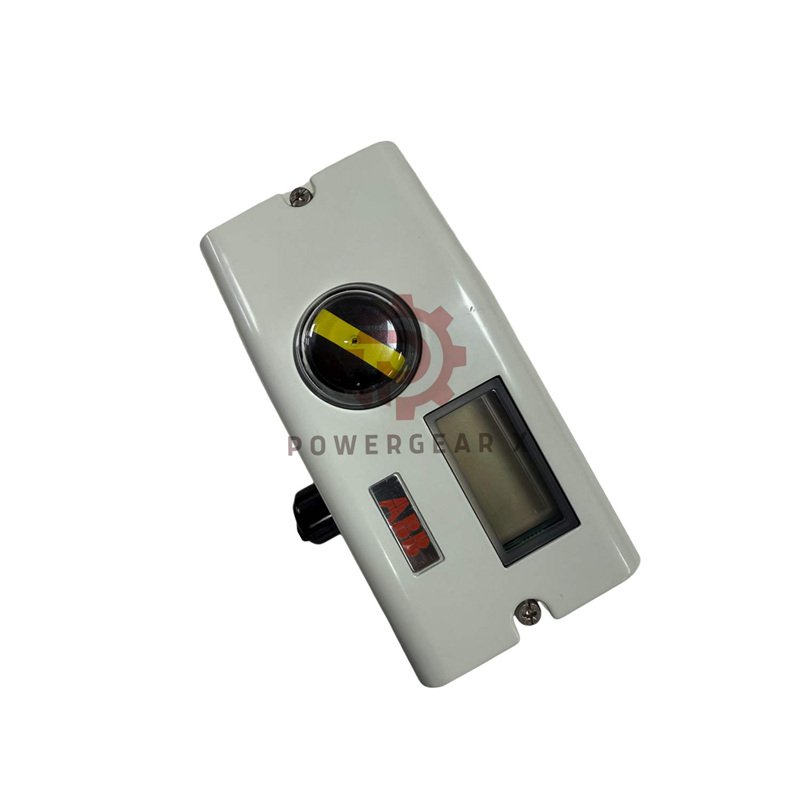

The ABB TZIDC Electro-Pneumatic Positioner gives precise valve control. This device from the ABB V18345 series turns signals into pneumatic output. It makes valves move to the exact needed position. The unit has a strong build and smart communication for industry use. Its design ensures stable performance in tough conditions.
Key Specifications & Features
- Brand & Model: ABB V18345-1020521001 (TZIDC Electro-Pneumatic Positioner).
- Input Signal: Standard 4…20 mA two-wire system.
- Communication: Built-in FSK module for HART protocol communication.
- Housing & Rating: Aluminum case with IP65 (NEMA 4X) protection.
- Mounting: Fits linear actuators per DIN/IEC 534 and rotary actuators per VDI/VDE 3845.
- Output Action: Double-acting with fail-freeze on power loss.
- Position Feedback: Plug-in module for analog 4…20 mA feedback.
- Action & Curve: Direct or reverse action with linear or equal percentage curves.
- High Accuracy: Characteristic deviation ≤ 0.5% with adjustable settings.
- Fast Response: Sample rate of 20 ms and resolution >4000 steps.
- Environmental Durability: Low temperature effect and high vibration resistance.
- Connections: Electrical: 1/2-14 NPT; Air: 1/4-18 NPT.
- Weight: About 1.7 kg.
Ordering Code & Configuration: V18345-1020521001
- V18345-1020521001 = TZIDC Positioner
- 1 = Aluminum IP65 Case for standard mounting
- 2 = 4-20mA Input with HART FSK Module
- 0 = No Explosion Protection
- 5 = Double Acting, Fail-Freeze
- 2 = 1/2″ NPT Cable, 1/4″ NPT Air Connections
- 1 = With Analog Position Feedback Module
- 0 = No Digital Feedback Kit
- 1 = Standard Design
Installation & Compatibility
- Mount directly to linear or rotary actuators using standard interfaces.
- Use clean and dry air supply for best performance and long life.
- Follow local electrical and pneumatic codes during setup.
- Mounting orientation does not affect accuracy.
Packaging & Delivery
- Each unit comes in a secure box with protective foam.
- Package has the positioner, feedback module, and mounting hardware.
- Manual and calibration certificates are included.
- We ship worldwide via FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
- What is the main benefit of HART communication?
It allows digital setup and monitoring without breaking the analog signal loop. - Is this positioner suitable for outdoor use?
Yes. The IP65 rating protects against dust and water jets for outdoor areas. - What does “fail-freeze” do?
If power fails, it locks air pressures to hold the valve in the last safe position. - How do I pick direct or reverse action?
Choose direct for 4 mA to close the valve. Pick reverse for 4 mA to open it. - Is analog feedback included in this model?
Yes. The V18345-1020521001 model includes the analog feedback module by default.
