Overview

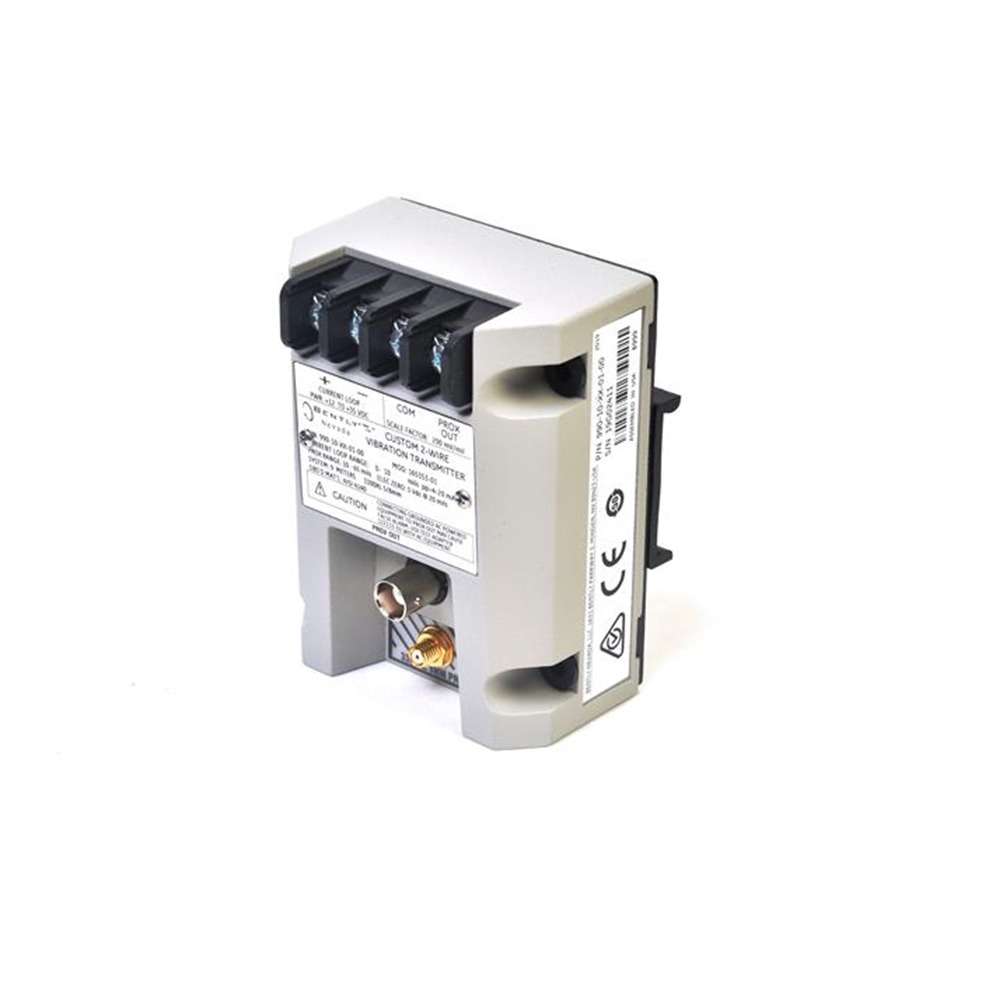

The Bently Nevada 990-08-50-01-01 vibration transmitter ensures precise machinery health monitoring. It pairs with 3300 NSv Proximity Probes for accurate 4-20 mA signal output. Designed for CSA Division 2 hazardous areas. Quick DIN rail clip installation saves time. Compact and reliable for industrial diagnostics.
Technical Specifications
- Brand: Bently Nevada
- Model: 990-08-50-01-01
- Suffix Details:
- 08: 0-8 mils pp (0-200 µm pp) full-scale range
- 50: 5.0 m (16.4 ft) system cable length
- 01: Mounting: 35 mm DIN rail clips
- 01: Certification: CSA Division 2
- Input Voltage: +12 to +35 Vdc (±0.5% stability)
- Output Signal: 4-20 mA (2-wire, ±0.8% linearity)
- Probe Gap Tolerance: 0.5-1.75 mm (±0.05 mm)
- Loop Resistance: 1,000 Ω max (35 Vdc, 24 AWG cable)
- Current Limit: 23 mA (±1 mA)
- Frequency Bandwidth: 5 Hz-6 kHz (±3 dB at 25°C)
- Temperature Drift: ±0.02% FSO/°C (-40°C to +85°C)
- Insulation Resistance: >100 MΩ at 500 Vdc
- Vibration Resistance: 15g RMS (10-2000 Hz)
- Recovery Time: 2.5 sec (after fault clearance)
- Weight: 0.43 kg (±10 g)
Key Features
- CSA Division 2 hazardous area compliance
- ±0.8% signal linearity across full range
- 15g vibration resistance for harsh environments
- 500 Vdc insulation protection
- DIN rail clips (35 mm) for tool-free install
