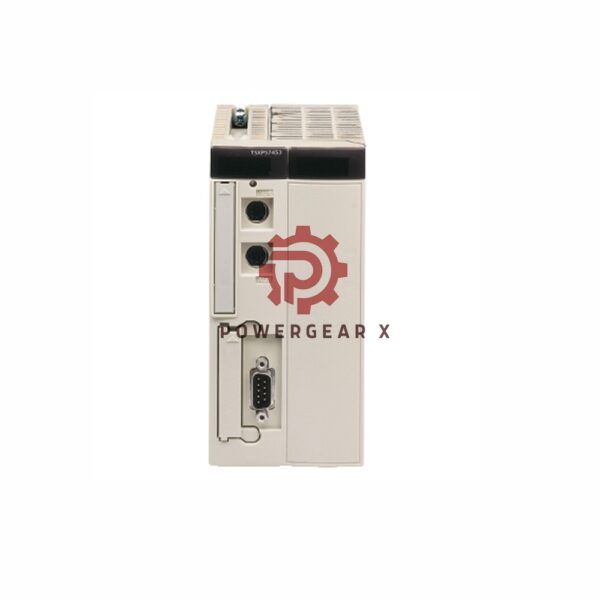

TSXP574823M Double Format PL7 Processor Modicon Premium

Overview of the Modicon TSXP574823M Processor

The Modicon TSXP574823M is a high-performance PL7 Processor designed for the Modicon Premium series, equipped with advanced features like Ethernet TCP/IP connectivity, high-capacity internal RAM, and extensive I/O processing capabilities. It offers robust flexibility for various industrial automation applications.

This processor supports PL7 Junior/Pro programming environments and is Concept Transparent Ready, making it ideal for seamless integration into automation systems that require high-speed processing and reliable communication.

Key Features

• Processor Capacity:
  • Internal RAM: 96 Kwords (program & data) without PCMCIA card, expandable with PCMCIA card to 176 Kwords.
  • High-speed processing: 13.82 Kinst/ms for 100% Boolean logic.
• I/O and Communication Capacity:
  • Discrete I/O Processor: Supports up to 2040 I/O points.
  • Analog I/O Processor: Capable of handling up to 256 I/O points.
  • Application-Specific Channels: 64 available channels.
  • Process Control Channels: Support for 20 to 60 simple loops.

Technical Specifications

• Brand: Schneider Electric (Modicon Premium Series)
• Model: TSXP574823M
• Operating Temperature: 0 to 60°C.
• Storage Temperature: -25 to 70°C.
• Humidity: 10–95% (operational); 5–95% (storage).
• Altitude: Suitable for installations up to 2000 meters.
• Protection Rating: IP20 (non-waterproof).
• Pollution Degree: 2 (light pollution environments).
• Protection Treatment: TC (standard treatment for industrial environments).
• Package Dimensions: Height: 9.5 cm, Width: 18.0 cm, Length: 26.0 cm.
• Weight: 766 g.
• Units per Package: 1.

For more detailed information, please check official datasheet: TSXP574823AM_document
