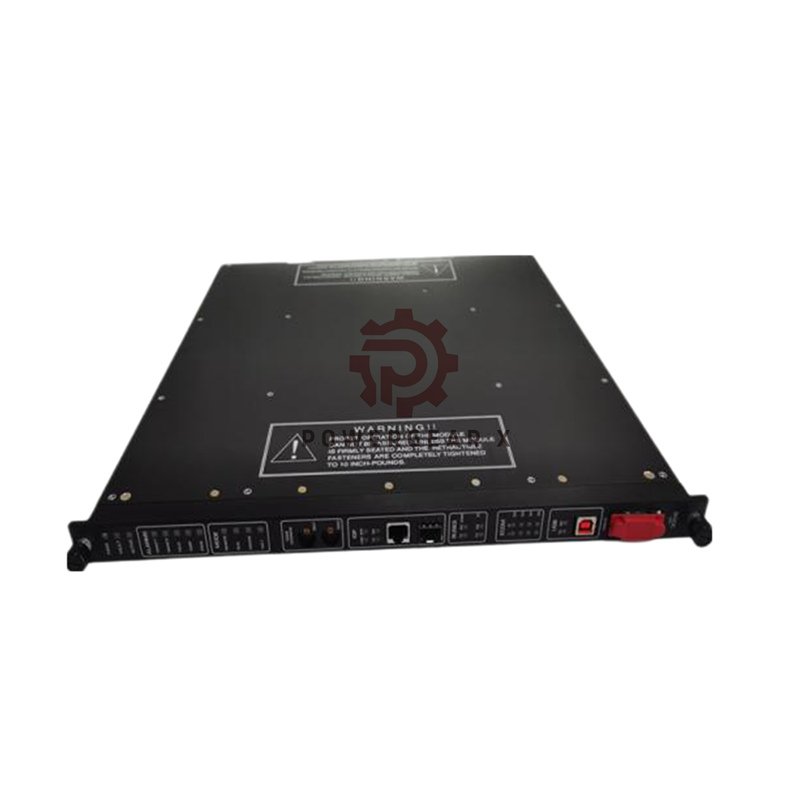

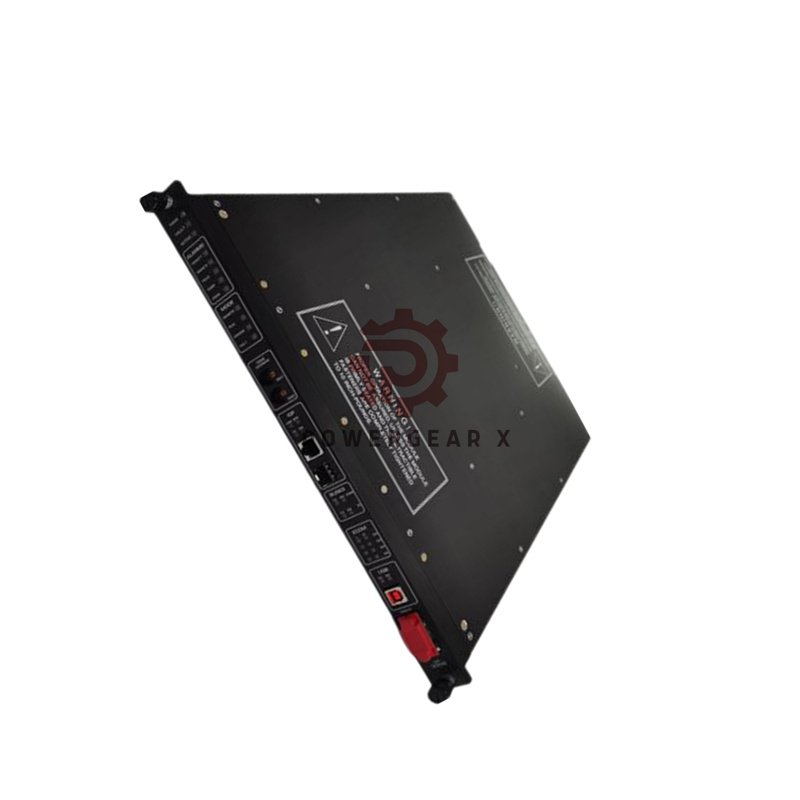

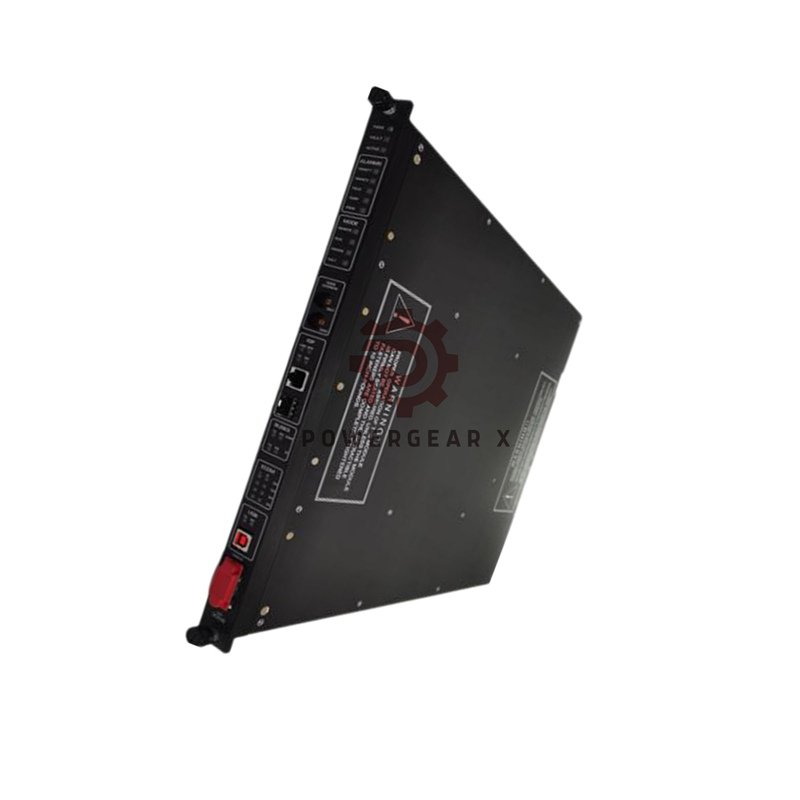

Tricon Communication Module: High-Performance Industrial Connectivity
The Triconex Tricon Communication Module (TCM) delivers robust Ethernet and serial communication for Tricon v10.0+ systems. It enables seamless data exchange with TriStation software, other controllers, Modbus devices, and external hosts. This module ensures reliable industrial network integration with advanced protocol support.
Communication Protocols and Data Handling
- Comprehensive protocol support including Modbus TCP/IP, TSAA, TriStation, and SNTP
- Peer-to-Peer communication exclusively through NET 1 for real-time data synchronization
- Aggregate serial data throughput of 460.8 kbps across all four communication ports
- Five-digit alias numbering system for efficient Modbus variable mapping and device integration
Technical Specifications and Models
- Brand: Triconex | Models: 4351A, 4352A, 4353, 4354
- Serial Communication: 4 RS-232/RS-485 ports with DB-9 connectors
- Network Interfaces: 10/100BaseT Ethernet (RJ-45) or 100 Mbps fiber-optic (MTRJ)
- Port Isolation: 500 VDC protection for enhanced electrical safety
- Supported Modbus Functions: 01, 02, 03, 04, 05, 06, 07, 08, 15, 16 for complete control
- Serial Speed: Up to 115.2 kbps per port | Status Indicators: PASS, FAULT, ACTIVE, FIRM
System Integration and Configuration
- Maximum of four TCM units per Tricon system occupying two logical slots
- Total support for 32 Modbus masters/slaves combining network and serial connections
- Online replacement capability for maintenance despite no hot-spare functionality
- TriStation software requirement for alias assignment and variable configuration
Frequently Asked Questions
- What communication protocols does the TCM support?
The module supports TCP/IP, Modbus TCP/IP Slave/Master, TSAA, TriStation, SNTP, and Jet Direct protocols.
- How many serial devices can connect to one TCM unit?
All four serial ports can simultaneously operate with Modbus or specialty devices.
- Can different TCM models operate in the same system?
Different models cannot mix within one logical slot but can coexist in separate slots.
