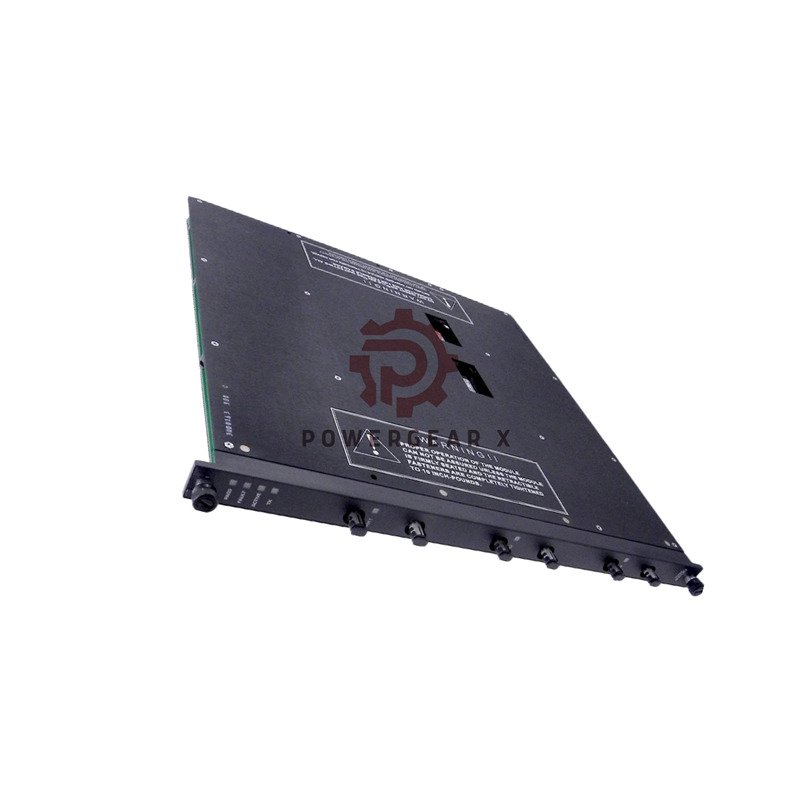

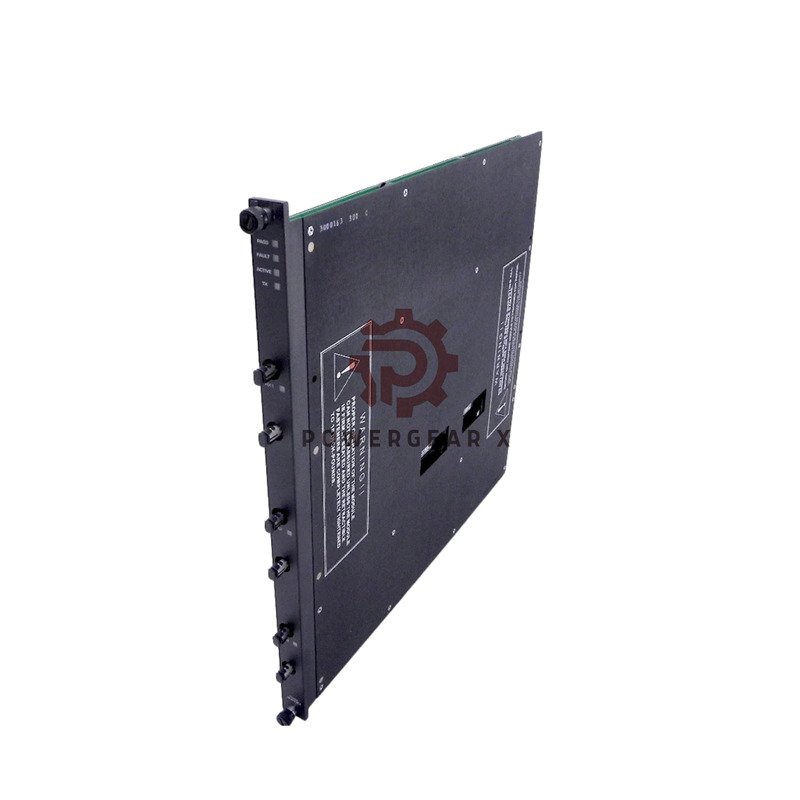

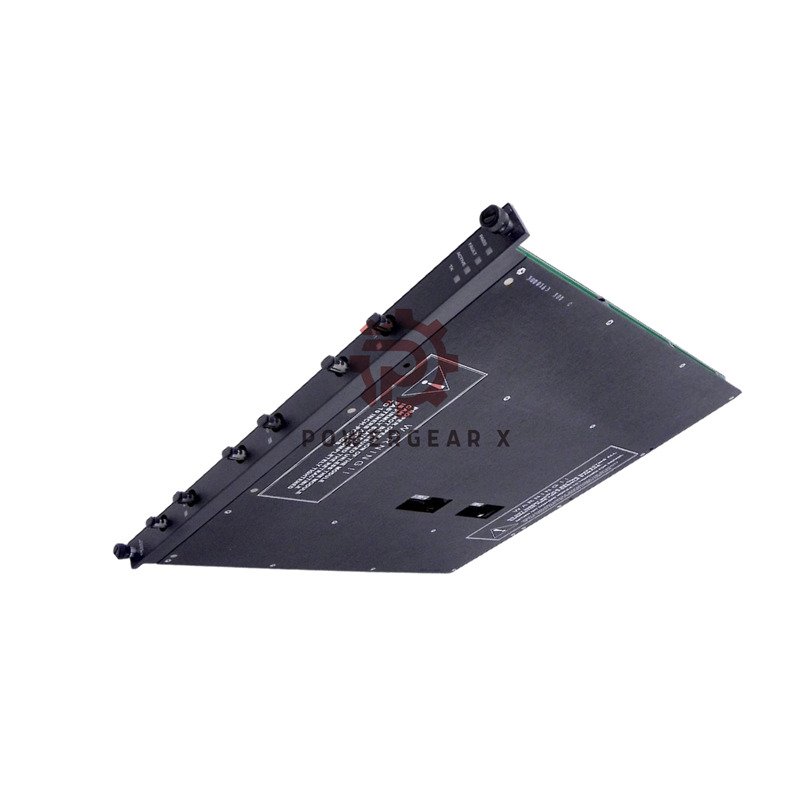

Triconex RXM 4200 Remote Extender Module: Long-Distance I/O Expansion
The Triconex RXM 4200 extends Tricon I/O operations up to 12 kilometers. This fiber optic module connects remote chassis to main systems. It ensures reliable data transfer with strong noise protection. Ideal for industrial sites needing distant control points.
Key Features and Benefits
- Extends I/O distance to 7.5 miles (12 kilometers) using fiber optics
- Supports three remote locations from one primary RXM set
- Provides 375 kbps communication speed for fast data transfer
- Offers ground loop isolation and high interference immunity
- Enables online monitoring with PASS, FAIL, ACTIVE, TX, RX indicators
Technical Specifications
- Brand: Triconex | Model: RXM 4200
- Communication Rate: 375 kilobits per second
- Cable Type: Multi-mode fiber optic with ST connectors
- Max Distance: 12 km (7.5 miles) per remote site
- Connectors: 6 ports per remote location
- Remote Sites: 3 sites per primary module
- Isolation: Ground loop protection
- Interference Immunity: Electro-static and electro-magnetic resistance
- Diagnostic Lights: PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3
Installation and Setup
- Mount the module in a compatible Tricon chassis
- Use fiber optic cables with ST connectors for all links
- Connect six cables per remote site for full operation
- Check diagnostic LEDs for proper signal transmission
- Ensure cables do not exceed maximum length limits
Packaging and Shipping
- Package includes RXM 4200 module and installation guide
- Shipping via FedEx, UPS, or DHL express services
- Standard packaging without certification documents
- Fast delivery options for industrial clients
Frequently Asked Questions
- How far can the RXM 4200 extend I/O connections?
The module supports distances up to 12 kilometers using fiber optic cables.
- How many remote sites can one primary RXM support?
One primary RXM set connects to three separate remote locations.
- What cables work with the RXM 4200 module?
It uses multi-mode fiber optic cables with ST-type connectors.
- Does the module protect against electrical noise?
Yes, it provides high immunity to electrostatic and electromagnetic interference.
- What do the diagnostic indicators show?
LEDs display module status, transmission activity, and receive signals.
