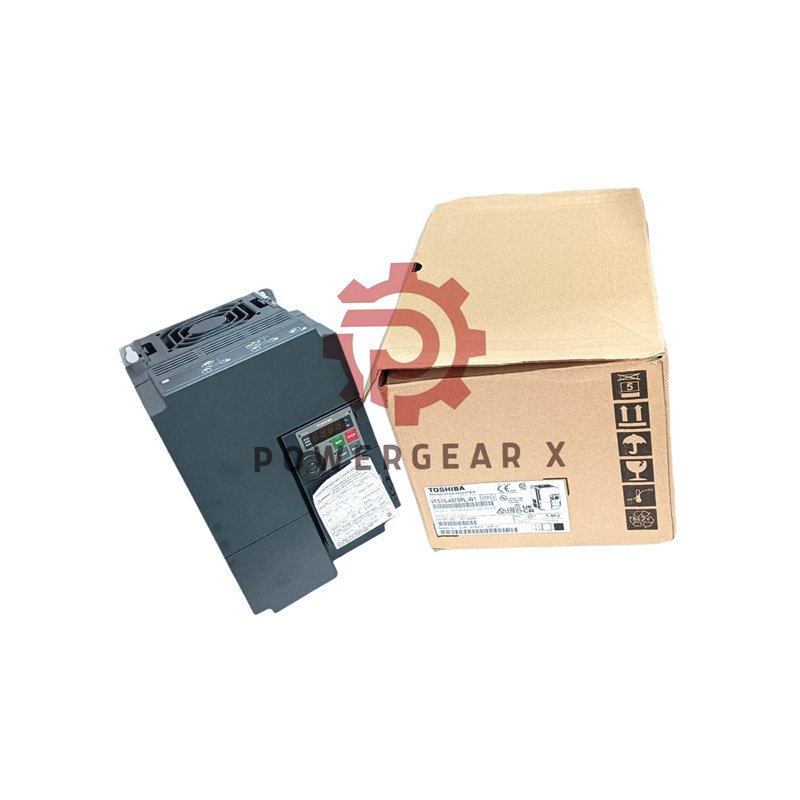

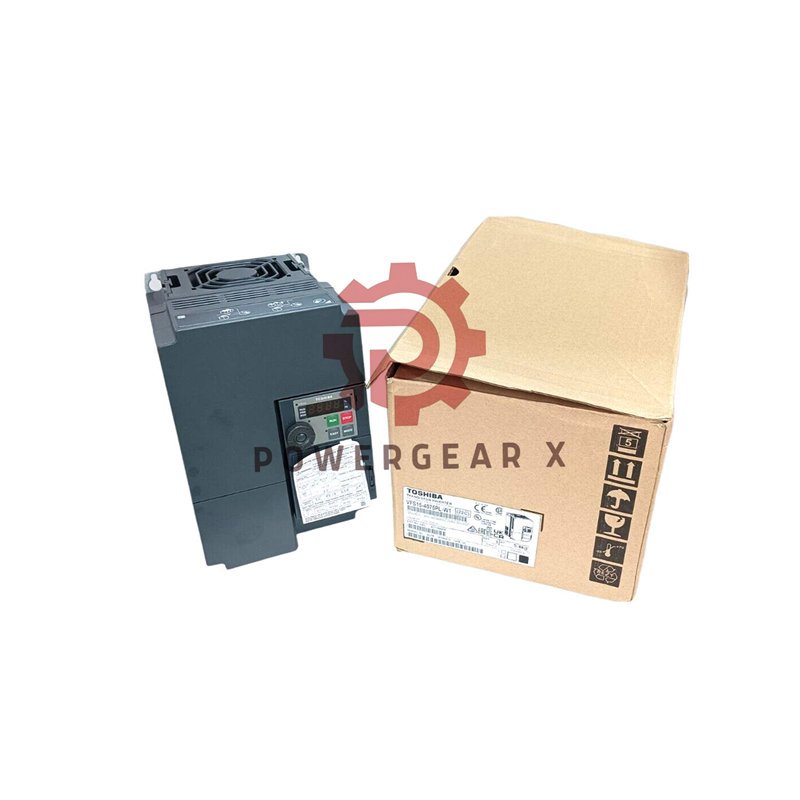

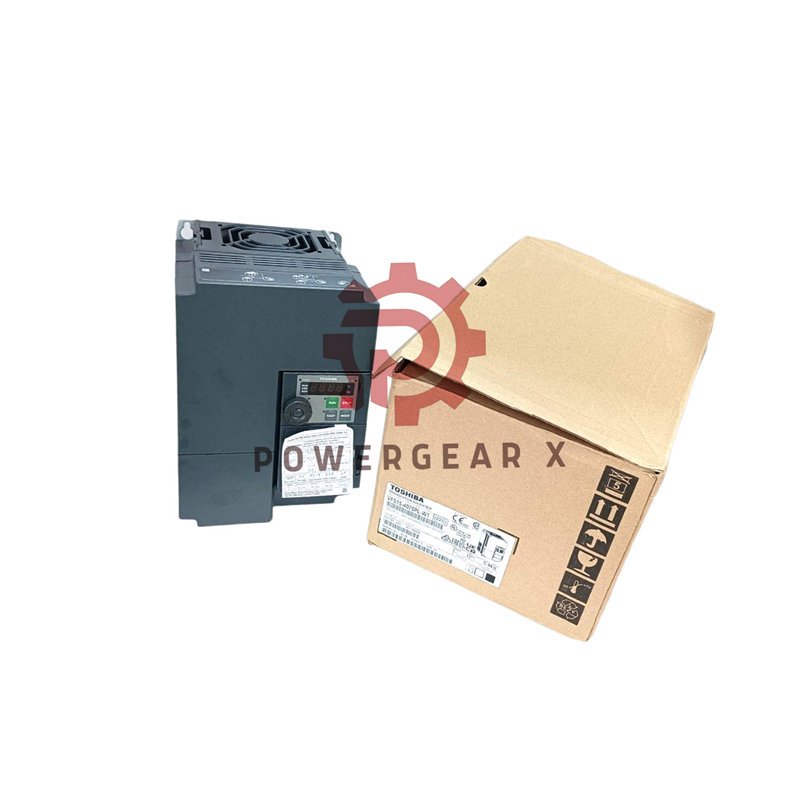

Toshiba VFS15-4075PL-W1 AC Drive: Compact Power for Industrial Automation

Control your motors with precision. The Toshiba VFS15-4075PL-W1 is a versatile 10 HP micro-drive. It is perfect for pumps, fans, and conveyors. This drive saves energy and improves process control.

Author: Powergear X Automation

Product Summary: VFS15-4075PL-W1

• Brand & Series: Toshiba, S15 Series Micro-Drive
• Full Model: VFS15-4075PL-W1
• Power Rating: 10 Horsepower (HP)
• Supply Voltage: 460 Volts AC, 3-Phase
• Full Load Current: 17 Amps
• Key Feature: Works with Permanent Magnet (PM) Motors
• Condition: New & Original
• Warranty: 12 Months Full Coverage
• Global Shipping: Fast delivery via FedEx, UPS, DHL

Detailed Technical Specifications

• Electrical Characteristics:
  • Output Frequency Range: 0.1 Hz to 500.0 Hz.
  • Default Frequency: 0.5 Hz to 60 Hz.
  • Overload Capacity: 110% continuous, 150% for 60 seconds.
  • Control Method: Sinusoidal PWM.
• Inputs & Outputs (I/O):
  • Discrete Inputs: 6 programmable inputs.
  • Discrete Outputs: 3 programmable outputs (1 Form-A, 1 Form-C, 1 Open Collector).
  • Analog Inputs: 3 total (4-20mA, 0-10VDC, ±10VDC).
  • Analog Output: 1 programmable (4-20mA or 0-10VDC).
• Communication & Display:
  • Communication Port: Two-wire RS485.
  • Display: Built-in 4-digit, 7-segment LED (EOI).
  • Fault Logging: Stores last 8 faults with operation data.
• Environmental Ratings:
  • Enclosure: IP20 (wall-mount).
  • Operating Temperature: -10°C to 50°C (14°F to 122°F).
  • Humidity: Up to 95%, non-condensing.
  • Altitude: Up to 1000 meters without derating.
• Compliance & Safety:
  • Standards: UL Listed (US & Canada), CSA, CE.
  • Safety: Safe Torque Off (STO) compliant.
  • Built-in Features: High-attenuation EMC filter.

Professional FAQs

• Does this drive include a built-in EMC filter?
• Yes. The VFS15-4075PL-W1 comes with a built-in high-attenuation EMC filter as standard. This helps reduce electrical noise.
• What does “Catch a Spinning Motor” mean?
• This is the Auto-Restart feature. It allows the drive to start and smoothly take control of a motor that is already spinning. This is useful after a brief power loss.
• Can I use this 460V drive on a 400V power supply?
• No. The drive is rated for 380-460V input. A 400V supply is within range, but you must check motor compatibility. Always match voltage ratings.
• How do I access the stored fault history?
• Use the built-in EOI keypad or communication software. The drive stores the last eight fault codes with related data for diagnosis.
• Is a braking resistor required for this model?
• Not for basic operation. However, if your application requires fast stopping or overhauling loads, you may need an external dynamic braking resistor.
