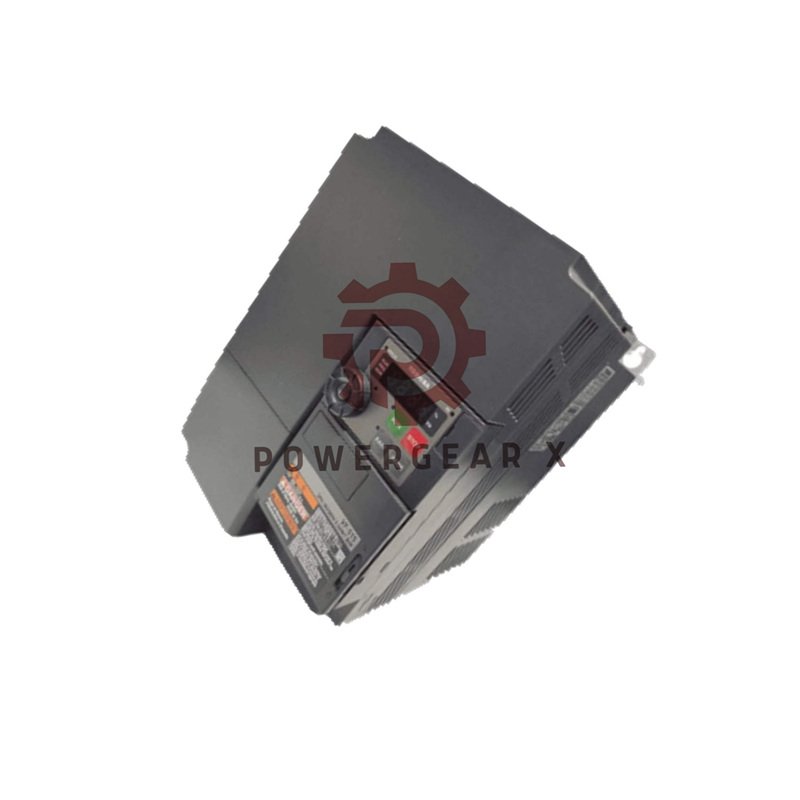

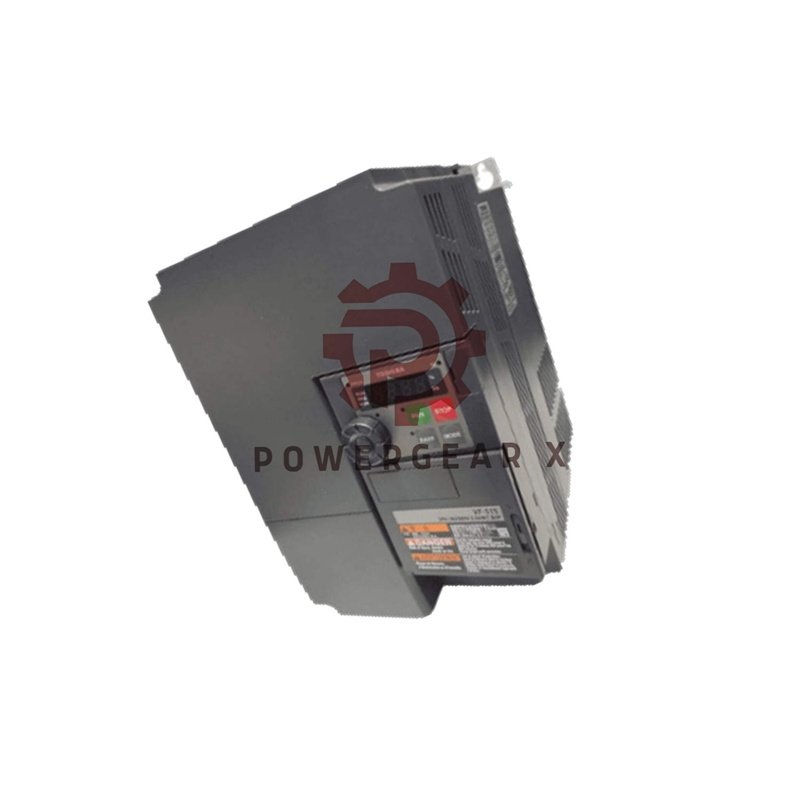

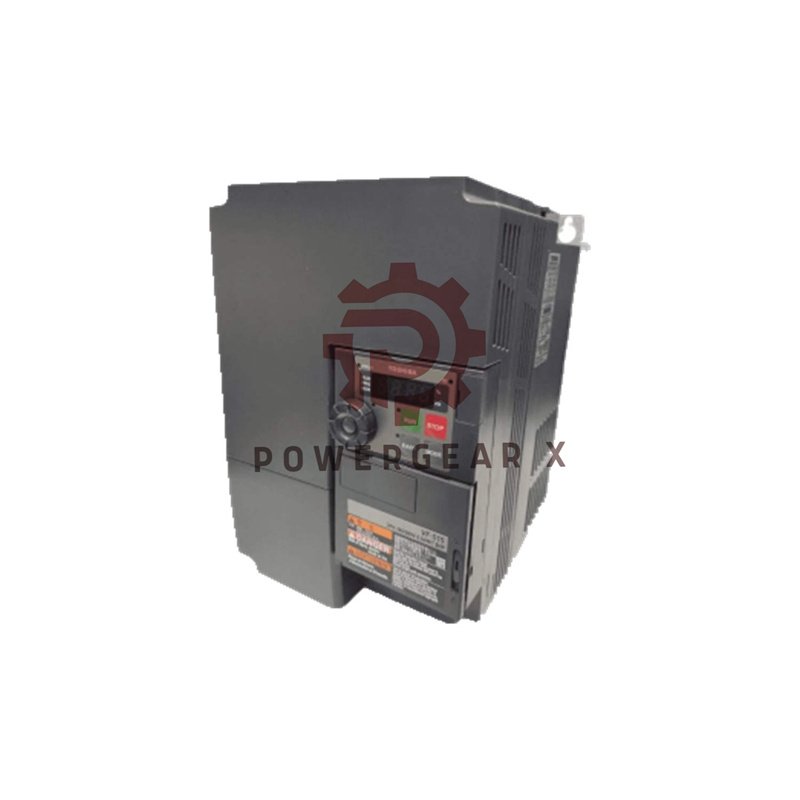

Toshiba VFS15-2037PM-W1: Compact 5 HP Variable Frequency Drive
This is a new, original Toshiba VFS15-2037PM-W1 AC drive. It is part of the reliable VF-S15 series. This VFD controls 3-phase motors up to 5 HP. It is perfect for pumps, fans, and conveyors. Author: Powergear X Automation.
We include a 12-month warranty. Fast shipping via FedEx, UPS, and DHL is available.
Top Reasons to Buy This VFD
- Easy to Use: Comes with a built-in operation panel for simple setup.
- Built-in Filter: Includes a basic EMC filter for reduced electrical noise.
- Compact Size: Saves space in your control panel (150x140x170 mm).
- Reliable Power: Controls 5 HP (4.0 kW) motors with 17.5A full load current.
- Wide Voltage Input: Works with 200-240VAC, 3-phase power supply.
- Durable Design: Robust construction for long life in industrial environments.
Complete Product Specifications
- Brand: Toshiba Motors & Drives
- Series: VF-S15 Series
- Model: VFS15-2037PM-W1
- Type: Micro Variable Frequency Drive (VFD)
- Rated Power: 5 Horsepower (HP)
- Rated Output: 4.0 kW
- Output Current: 17.5 A (Full Load)
- Input Voltage: 200-240 VAC, 3 Phase, 50/60 Hz
- Output Voltage: 0 – Input Voltage (VVVF)
- Control Method: Sensorless Vector Control / V/f Control
- Carrier Frequency: 0.5 – 16.0 kHz (Adjustable)
- Frequency Range: 0.1 – 400 Hz
- Digital Inputs: 4 Multi-function terminals
- Analog Input: 1 x 0-10V / 4-20mA
- Relay Output: 1 x Multi-function relay (250VAC, 2A)
- Communication: Built-in Modbus RTU (RS-485)
- Enclosure Rating: IP20 (Panel Mount)
- Operating Temp: -10°C to +50°C (14°F to 122°F)
- Storage Temp: -25°C to +65°C
- Humidity: 95% RH or less (non-condensing)
- Dimensions (WxHxD): 140 x 170 x 150 mm
- Weight: 2.2 kg
Installation & Setup Guide
- Mount the drive vertically on a flat, non-flammable surface.
- Ensure proper clearance for cooling (at least 100mm above and below).
- Connect motor cables using shielded or twisted pairs for best performance.
- Use the built-in keypad for easy parameter setting and monitoring.
- Set the correct motor nameplate data for optimal sensorless vector control.
Frequently Asked Questions
- What does the “-W1” suffix mean in the model number?
- It indicates a specific regional version, typically for the Japanese market with local compliance features.
- Can this VFD control a single-phase input motor?
- No. The VFS15-2037PM-W1 requires a 3-phase input power supply and is designed for 3-phase motors.
- What is the benefit of sensorless vector control?
- It provides better low-speed torque and speed control without needing a feedback encoder from the motor.
- How do I connect a remote potentiometer for speed control?
- Connect the potentiometer (1-5 kΩ) to the analog input terminals (common, voltage, signal) as shown in the manual.
- What is a common installation mistake to avoid?
- Running motor cables and power cables in the same conduit. This can cause interference. Always separate them.
