Compact Power for Your Machine Tools

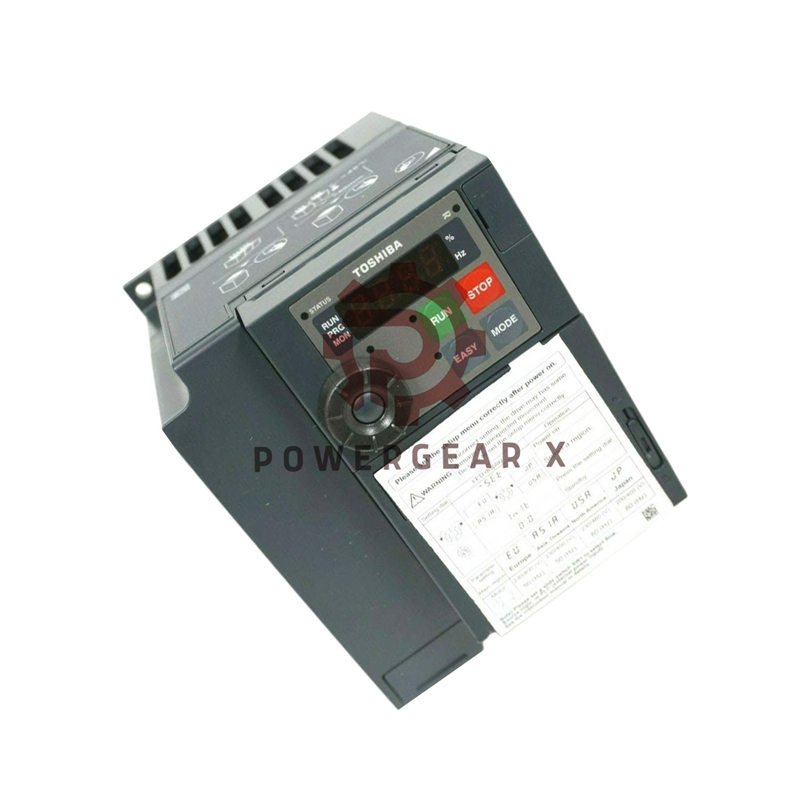

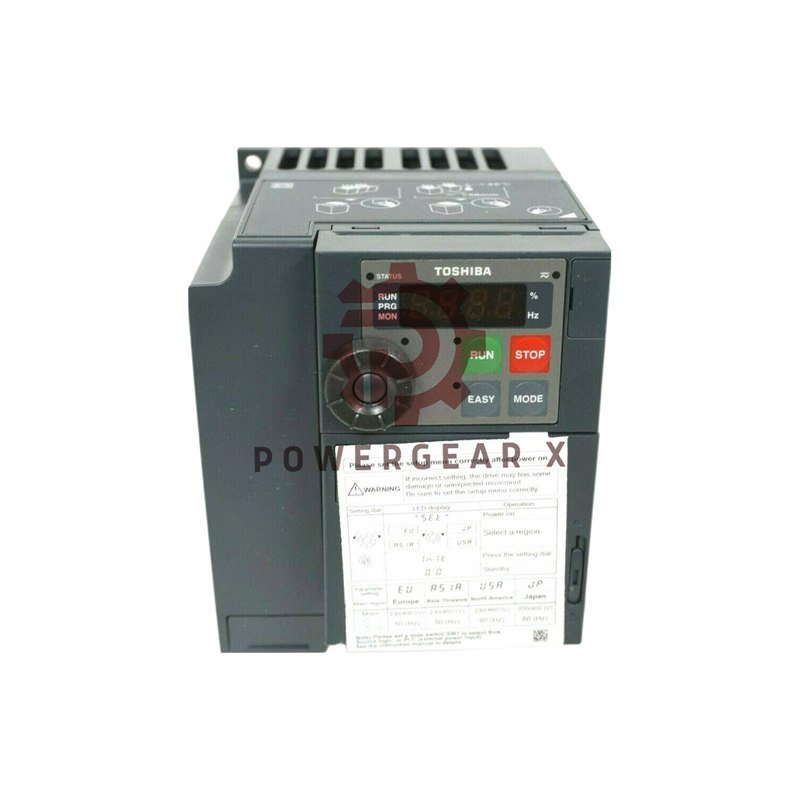

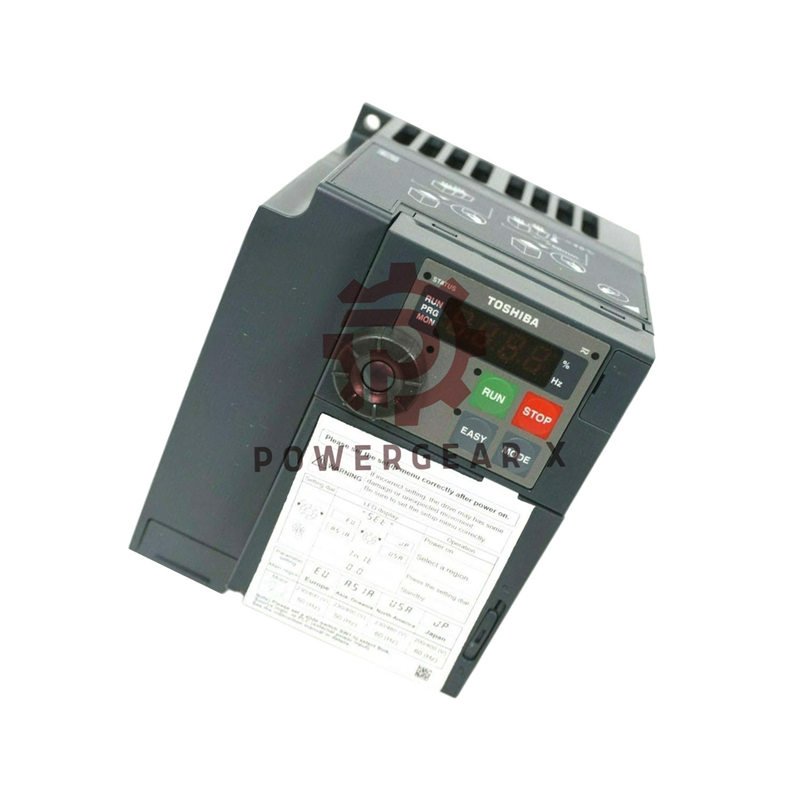

Take control with the Toshiba VFS15-2015PM-W1. This variable frequency drive delivers reliable performance. It is designed for constant torque applications. Perfect for conveyors, mixers, and machine tools. The drive handles 2HP motors with ease. Enjoy smooth operation and energy savings.
Detailed Technical Specifications
- Manufacturer Part Number: VFS15-2015PM-W1
- Brand & Series: Toshiba VF-S15 Series Inverter
- Rated Power: 1.5 Kilowatts (2 Horsepower)
- Output Current: 8 Amps (Constant Torque Rating)
- Input Voltage Range: 200-240 Volts AC, Three Phase
- Nominal Voltage: 208V / 240V AC
- Output Voltage: 0 to Input Voltage, Three Phase
- Control Type: Constant Torque (CT) Application
- Enclosure Protection: IP20 (Wall-Mount Type)
- Built-in Features: Basic EMC Filter (Standard)
- Operator Interface: Integrated Control Panel
- Motor Control: Open Loop (No Encoder Feedback)
- Regeneration: Not Supported (Non-Regenerative)
- Dimensions: 130mm × 105mm × 130mm (W×H×D)
- Net Weight: 1.4 kg (2.725 lbs)
- Shipping Weight: 1.58 kg (3.475 lbs)
- Operating Temperature: -10°C to 50°C (14°F to 122°F)*
- Storage Temperature: -20°C to 65°C (-4°F to 149°F)*
- Humidity: 5% to 95% RH (Non-Condensing)
- Certifications: CE, cULus Listed*
*Typical values; refer to official manual for exact specifications.
Simple Setup Instructions
- Mount the drive on a vertical, non-flammable surface.
- Ensure adequate clearance (at least 10cm) around all sides for cooling.
- Connect the three-phase AC input power (L1, L2, L3).
- Connect the three motor output wires (U, V, W) securely.
- Set the motor nameplate data (voltage, current, frequency) in the drive parameters.
- Perform a quick test run at low speed before full operation.
Our Guarantee to You
- Quality Warranty: Backed by a full 12-month warranty.
- Global Logistics: Shipped worldwide via FedEx, UPS, or DHL.
- Fast Dispatch: Orders typically leave our warehouse within 1-2 business days.
Common Applications
- Conveyor belt speed control in packaging lines.
- Machine tool spindle drives (lathes, mills).
- Mixers and agitators in process industries.
- Positive displacement pumps requiring constant torque.
- Material handling equipment.
Expert Questions & Answers
Q: Can I use this VFS15-2015PM-W1 drive with a single-phase input power?
A: No. This model requires a three-phase 200-240V AC input. Using single-phase power will damage the drive.
Q: What is the difference between constant torque and variable torque mode?
A: Constant torque gives full power at all speeds (for conveyors). Variable torque reduces power at lower speeds (for pumps/fans). This drive is set for constant torque.
Q: How do I connect a remote potentiometer for speed control?
A: Connect the pot to the analog input terminals on the drive. Then set the relevant parameter to select “external analog reference.”
Q: The drive shows an “OC” fault. What does this mean?
A: “OC” means Overcurrent. Check for motor cable shorts, ground faults, or if the motor is mechanically jammed. Also verify the motor current parameter is set correctly.
Q: Can I run two motors from one VFS15-2015PM-W1 drive?
A: It is not recommended. The drive’s protection settings are for one motor. Running two can cause uneven current sharing and trip faults.
