Product details

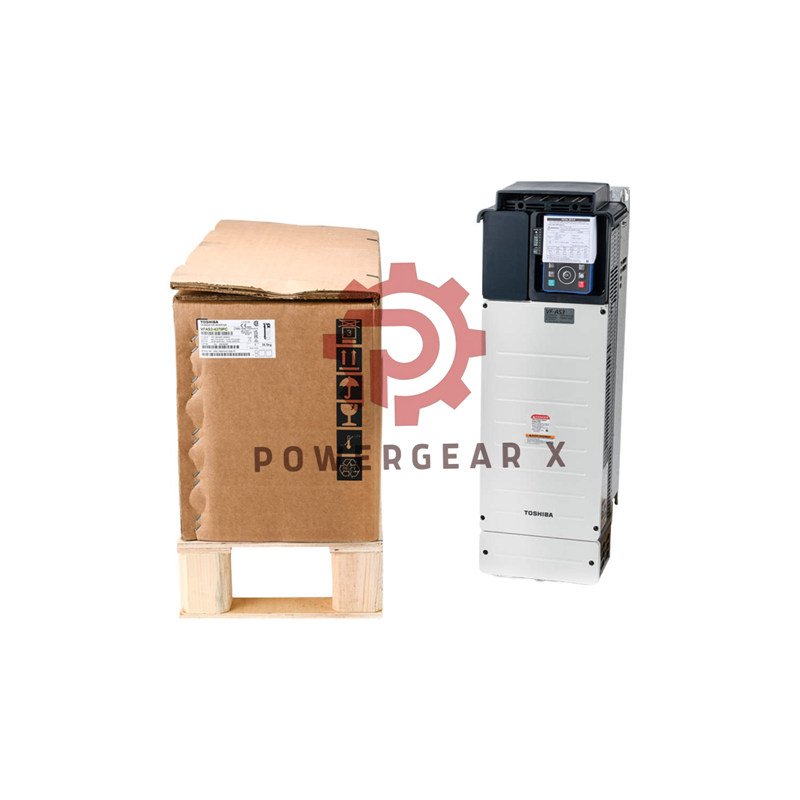

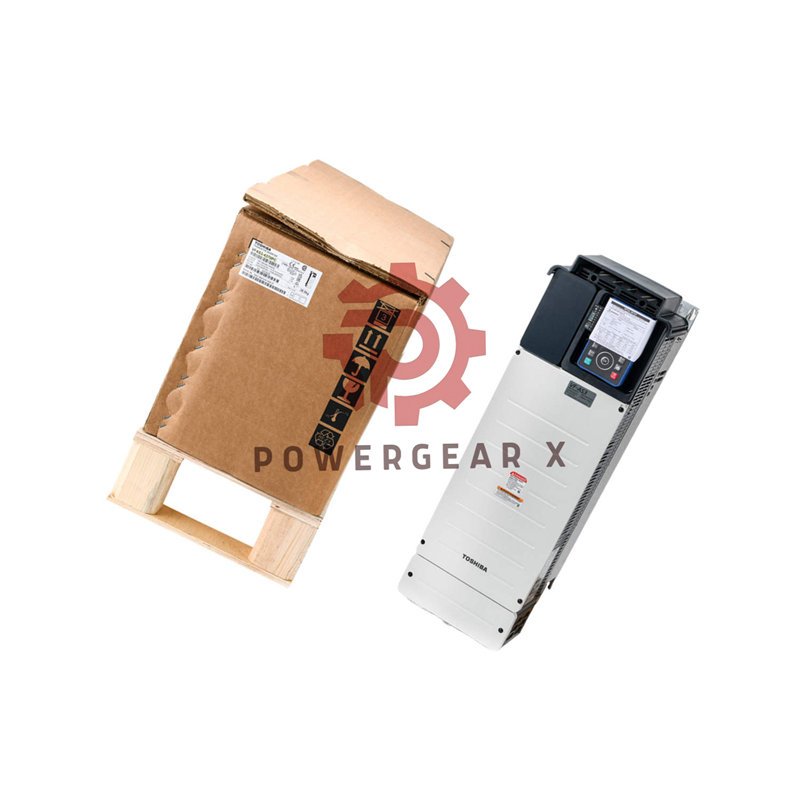

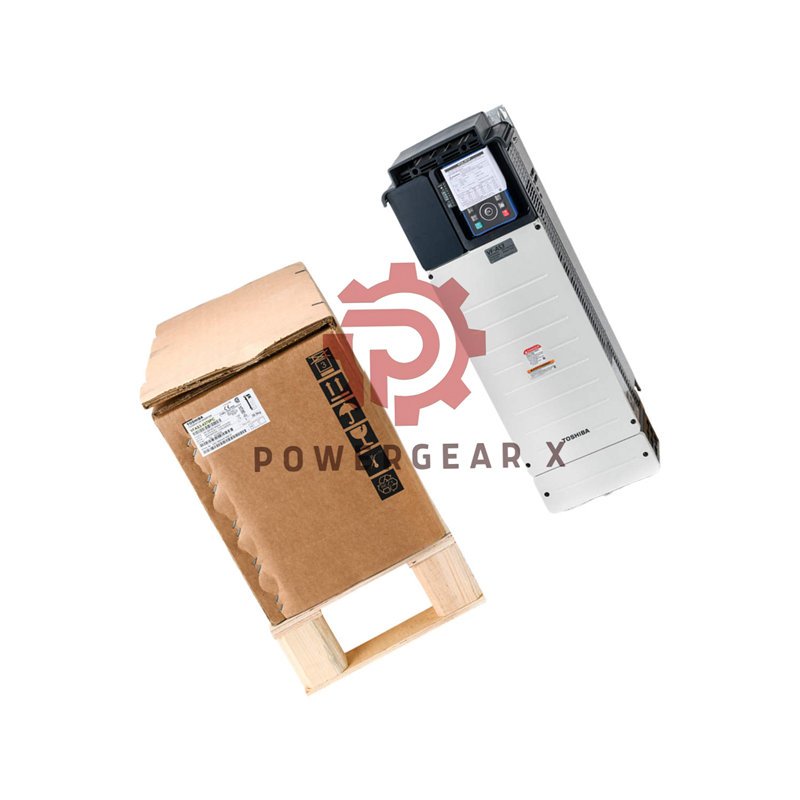

Toshiba VFAS3-4370PC: 50HP High-Performance AC Drive
This is a new Toshiba VFAS3-4370PC industrial drive. It is from the advanced AS3 series. This drive controls large motors up to 50 HP. It offers precise speed and torque control. Perfect for heavy machinery and industrial automation. Author: Powergear X Automation.
We provide a 12-month warranty. Worldwide shipping via FedEx, UPS, and DHL.
Technical Specifications
- Brand: Toshiba
- Series: AS3 Series
- Model: VFAS3-4370PC
- Type: High-Performance AC Drive
- Rated Power: 50 HP (37 kW)
- Input Voltage: 460 VAC, 3 Phase, 50/60 Hz
- Output Current: 74.5 A (Constant Torque)
- Frame Size: A4
- Enclosure: UL Type 1, IP20
- Control Modes: V/Hz, Sensorless Vector, Closed Loop Vector, Torque Control
- Frequency Range: 0.1 – 590 Hz
- Carrier Frequency: 1 – 16 kHz (Adjustable)
- Communication:
- 2 x Ethernet (10/100 Mbps)
- 1 x RS-485 (up to 38.4k baud)
- Protocols: EtherNet/IP, Modbus TCP, Modbus RTU
- Analog Inputs: 3 channels (0-20mA, 4-20mA, ±10VDC)
- Analog Outputs: 2 channels (0-20mA, 4-20mA, 0-10VDC)
- Digital Inputs: 8 points (24VDC, Sink/Source)
- Relay Outputs: 3 points (2A @ 250VAC/30VDC)
- Operating Temperature: -15°C to +50°C (5°F to 122°F)
- Storage Temperature: -40°C to +70°C
- Humidity: 5% to 95% (non-condensing)
- Safety: Safe Torque Off (STO) compliant
- Certifications: cULus, CE
- Battery: Built-in CR2032 for memory backup
Installation & Setup
- Mount in UL Type 1 enclosure for protection.
- Ensure proper cooling with minimum clearances around the unit.
- Connect motor cables using proper shielding for EMC compliance.
- Set up communication network parameters before connecting to PLC.
- Configure Safe Torque Off (STO) circuit for safety compliance.
Frequently Asked Questions
- What is the difference between V/Hz and FOC control modes?
- V/Hz is simpler and good for pumps/fans. FOC (Field Oriented Control) gives better torque response for precise applications.
- Can I connect this drive to a PLC via EtherNet/IP?
- Yes. The VFAS3-4370PC supports EtherNet/IP for direct connection to Allen-Bradley and other PLCs.
- What does “integrated dynamic braking” mean?
- It means the drive has built-in circuitry to quickly stop the motor by dissipating energy as heat, without needing an external brake resistor.
- How do I replace the backup battery?
- The battery is a standard CR2032. Access the control board and replace it with power disconnected to maintain parameters.
- What’s important when setting up the Safe Torque Off function?
- You must use safety-rated components and wiring. Test the STO function regularly to ensure it meets your safety system requirements.
