Toshiba VFAS3-4132KPC AS3 Drive | Toshiba 200HP VFD

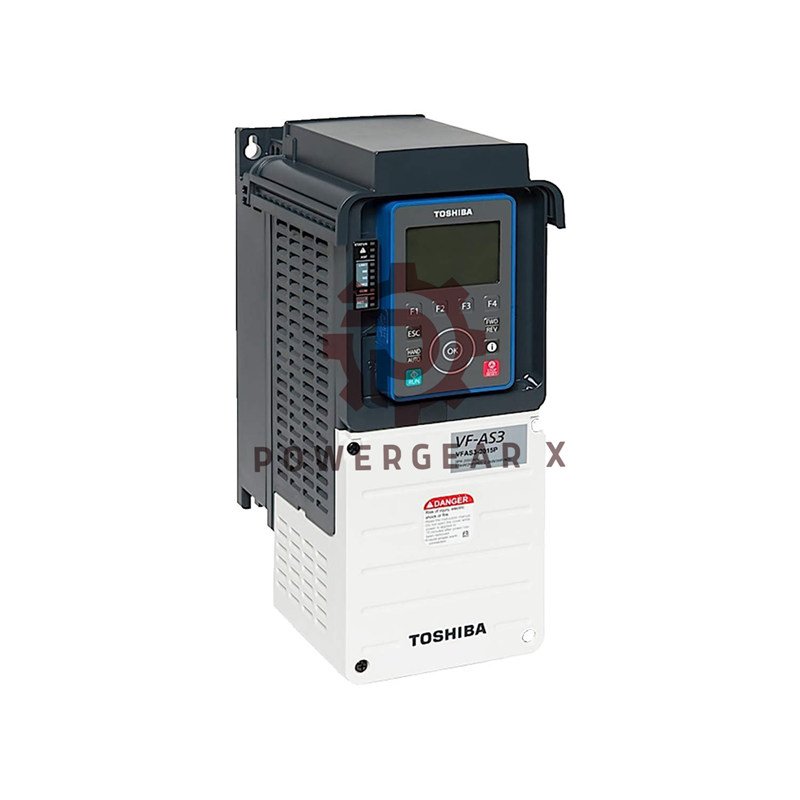

Toshiba VFAS3-4132KPC Drive Overview

Author: Powergear X Automation

The VFAS3-4132KPC runs large motors with fast, steady, and clear control.
It gives clean output and wide tuning for many heavy tools.
It fits tough work, hot panels, and long hours of load change.
Contact: sales@powergearx.com or
+86 18030005825

Core Highlights

• 200 HP power for large 3-phase motors.
• 460 VAC input and output for plant grids.
• 250 A heavy-duty rating for stable torque.
• 302 A variable torque support for fan and pump loads.
• Works with V/Hz, FOC, encoder, or torque mode.
• Clean EMI filter and safe torque off built in.
• Runs from -15 to 50°C with steady cooling.
• Open-frame build for panel or wall mount.

Control & Tuning

• Speed range spans 0.1–590 Hz for wide load needs.
• Carrier band from 1–8 kHz to tune noise or heat.
• Reverse mode built in with safe logic.
• PWM output holds clean sine form for motor health.
• Works with induction and PM motors.

I/O & Signals

• Three analog inputs with 11-bit resolution.
• Accepts 0–20 mA, 4–20 mA, ±10 VDC, or pulse train.
• Two analog outputs with 10-bit performance.
• Eight digital inputs with 24 VDC logic.
• Three relay outputs up to 250 VAC or 30 VDC.

Communication

• Dual Ethernet (RJ45) ports with EtherNet/IP and Modbus TCP.
• One RS-485 port for Modbus RTU.
• Speed options include 10/100 Mbps and 38.4k baud.
• Web server (HTTP) supports basic setup.
• Optional EtherCAT and encoder cards available.

Build & Safety

• A6 frame for large plant panels.
• IP00 open-frame design for cool airflow.
• Needs external braking for fast stop.
• DC reactor and EMC filter both built in.
• Safe Torque Off increases user safety.

Battery & Service Data

• Unit includes button lithium battery.
• UN3091 classification with safe pack rules.
• Battery type CR2032 or D0-MC-BAT.
• Change battery only with power off.
• Spare cell rating: 0.06 lithium content.

Packaging & Warranty

• Box includes one Toshiba AS3 drive marked VFAS3-4132KPC.
• Pack uses foam blocks for heavy units.
• Ships with FedEx, UPS, or DHL.
• 12-month warranty included.
• Screw terminals allow quick panel fit.

FAQ

• How do I set the best carrier level?
  Use low kHz for cool run and high kHz for quiet motor sound.
• How do I size the external brake unit?
  Match it to peak stop load and motor inertia.
• Why does the drive trip at high speed?
  Check line drop, fan flow, and motor balance.
• How do I tune torque mode?
  Start with low gain and raise until load stays steady.
• How do I keep signals clean?
  Separate control wires from power leads and ground all shields.
