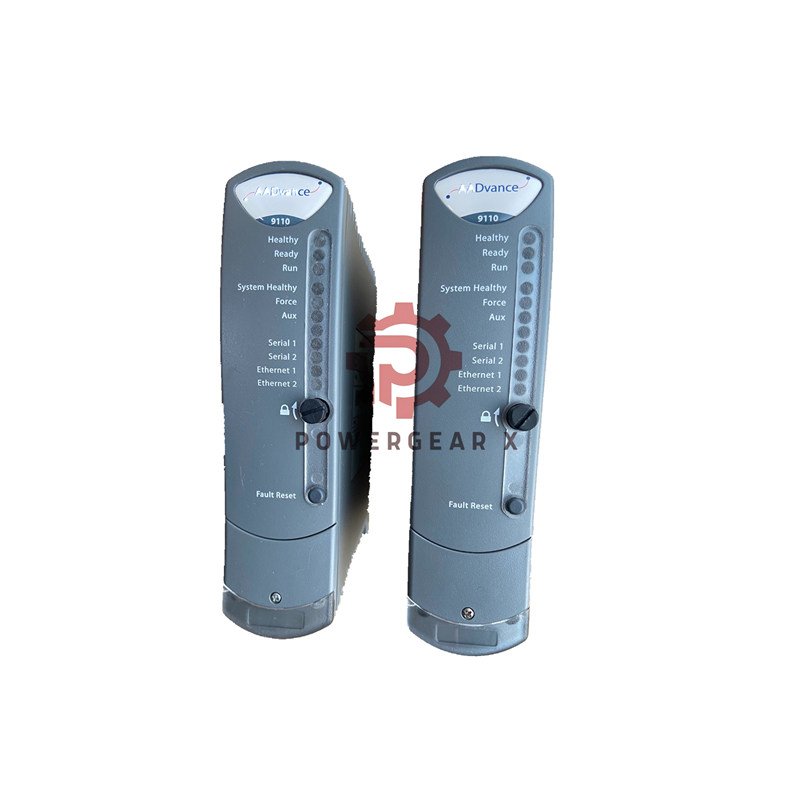

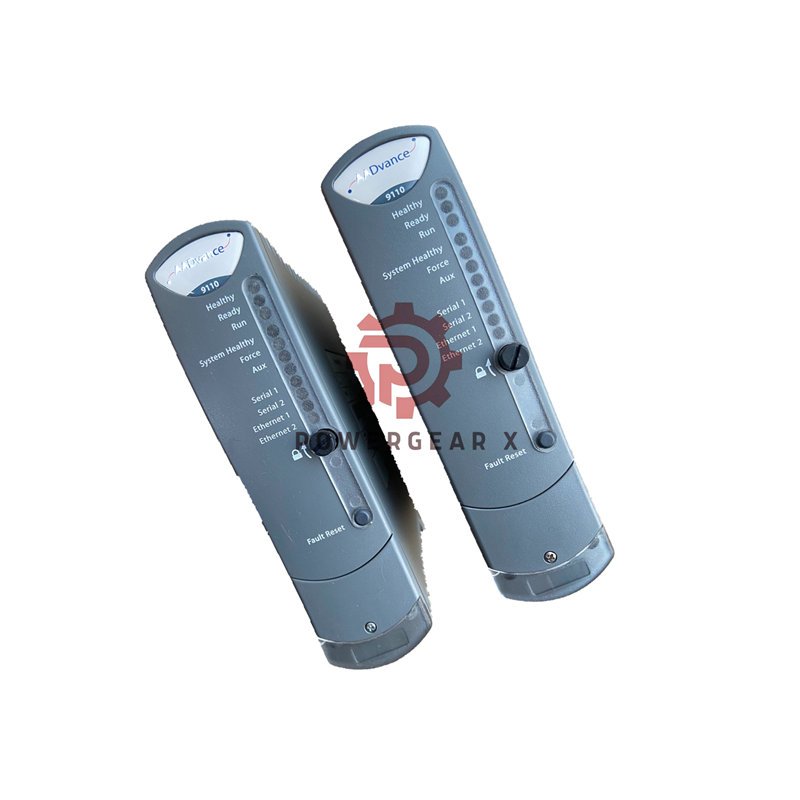

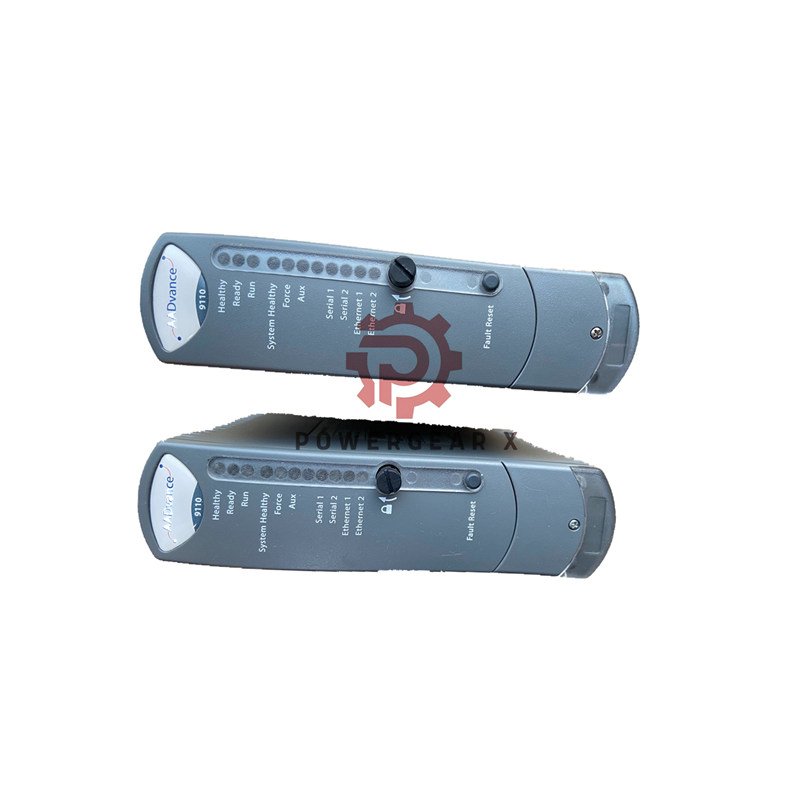

T9110 Processor Module: Ultimate Control System Reliability
The T9110 Processor Module delivers robust performance for industrial automation. This advanced processor ensures continuous operation with comprehensive status monitoring. It features multiple indicator lights for real-time system health checks.
Key Product Specifications
- Brand: Rockwell Automation
- Model: T9110 Processor Module
- Weight: 430 grams compact design
- Power Consumption: 8.0 W energy efficient
- Heat Dissipation: 8.0 W (27.3 BTU/hr)
- Voltage Range: 18-32 Vdc wide input
- Maximum Current: 380 mA optimal performance
- Operating Temperature: Up to 60°C reliability
- Warranty: 12 months comprehensive coverage
- Shipping: FedEx, UPS, DHL global delivery
Status Indicator Guide
- Ready Light: Green means educated and synchronized
- Run Indicator: Green shows application running
- System Healthy: Green indicates no system faults
- Force Light: Amber shows variables being forced
- Ethernet Ports: Green confirms link established
- Serial Ports: Amber shows active communication
- Auxiliary Light: Green means application control
Installation Procedure
- Check module for any physical damage first
- Record identification labels before installation
- Ensure matching firmware on multiple processors
- Align coding pegs with base unit sockets
- Push module until connectors fully mate
- Turn locking screw clockwise to secure
Battery & Clock Configuration
- Battery Type: T9905 BR2032 Lithium
- Battery Voltage: 3V nominal power
- Operating Range: -30°C to +80°C
- Clock Setting: Manual RTC configuration
- Time Variables: Year, Month, Day control
- Precision Timing: Milliseconds accuracy
Technical Advantages
- Triple modular redundancy capability
- Advanced fault detection system
- Real-time status monitoring
- Wide operating voltage range
- Robust temperature tolerance
- Multiple communication ports
- Easy maintenance access
Professional FAQ
- What does flashing green Ready light indicate?
The module is currently educating or synchronizing with partners.
- How long does module boot-up typically take?
Boot-up process requires 10 to 20 seconds for full operation.
- What causes the System Healthy light to turn red?
Red indicates faults on modules or application stopped in Recovery Mode.
- When should the backup battery be replaced?
Use recommended T9905 battery when system indicates low power.
- What does amber Force light signify?
Module is in Recovery Mode or variables are being locked/forced.
