Standard Industrial Vibration Monitoring Probe

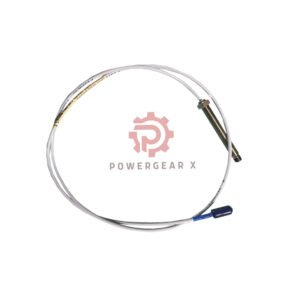

The Bently Nevada 330702-00-30-10-01-00 offers reliable performance for general applications. This 11mm probe features a 3-inch case and protected connector. It provides accurate vibration data for machinery health monitoring. Ideal for standard industrial environments without hazardous area requirements.
Product Configuration Details
- Manufacturer: Bently Nevada
- Product Series: 3300 XL Monitoring System
- Sensor Type: 11mm Proximity Vibration Probe
- Complete Part Number: 330702-00-30-10-01-00
- 330702 – 11mm Diameter, 1/2-20 UNF, Armored
- 00 – No Unthreaded Section (0.0 inches)
- 30 – Case Length: 3.0 inches
- 10 – Cable: 1.0 meter (3.3 feet)
- 01 – Connector: ClickLoc with Protector
- 00 – Approvals: Not Required/Standard Area
- Country of Origin: Made in U.S.A.
- Best For: General industrial applications in non-hazardous areas
Technical Specifications
- Physical Design
- Mounting Thread: 1/2-20 UNF Standard
- Alternative Thread: M16x1.5 Available
- Max Thread Engagement: 0.750 inch
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Internal Seal: Viton® O-ring Design
- Electrical Properties
- Cable Type: 75 Ohm Triaxial with FEP Insulation
- DC Resistance (1m): 5.9 Ω ± 0.5 Ω
- Cable Length: 1.0 meter (3.3 feet)
- Connector: Protected ClickLoc Design
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Installation Parameters
- Recommended Torque: 15.2 N•m (133 in-lb)
- Maximum Torque: 45.2 N•m (400 in-lb)
- Connector Method: Finger Tight Installation
- Max Connector Torque: 0.565 N•m (5 in-lb)
- Environmental Ratings
- Operating Temperature: -52°C to +177°C
- Low-Temperature Limit: -34°C Minimum
- Application Area: Standard Industrial (Non-Hazardous)
- Temperature Classes: T1 through T5 Design
- Additional Information
- Shipping Weight: 0.17 Kg
- Pressure Testing: Available on Request
- Cable Options: Standard 1, 5, or 9 meter lengths
Key Features & Benefits
- Protected Connection: Connector protector prevents damage during handling
- Extended Case Design: 3-inch length fits deeper mounting applications
- Standard Cable Length: 1-meter cable suits most industrial installations
- Robust Construction: Stainless steel ensures durability
- Cost-Effective Solution: No premium for hazardous area certifications
Professional FAQ Section
Application & Selection
- What type of facilities should choose this “00” approval version?
Manufacturing plants, power generation (non-hazardous areas), water treatment facilities, and general industrial sites without explosive atmospheres. - When should I select the 3-inch case over standard lengths?
When mounting in thicker surfaces, or when you need additional clearance behind the mounting point for connector access.
Technical Specifications
- What does “approvals not required” mean for installation?
This probe does not carry ATEX, IECEx, or other hazardous area certifications. It is suitable for standard industrial environments only. - Can this probe be used outdoors?
Yes, the stainless steel construction and sealed design provide good environmental protection for outdoor industrial applications.
Ordering & Support
- What is your delivery and support policy?
The 330702-00-30-10-01-00 includes a 12-month warranty. We offer fast shipping via FedEx, UPS, and DHL with tracking provided.
Purchasing Information
The Bently Nevada 330702-00-30-10-01-00 is in stock and ready to ship. This configuration offers excellent value for standard industrial applications.
Need help selecting the right probe for your application? Contact our technical team for guidance. Email sales@powergearx.com or message on WhatsApp: +86 18030005825.
