SLP Surge Protector by MTL | 20kA Protection SLP16D

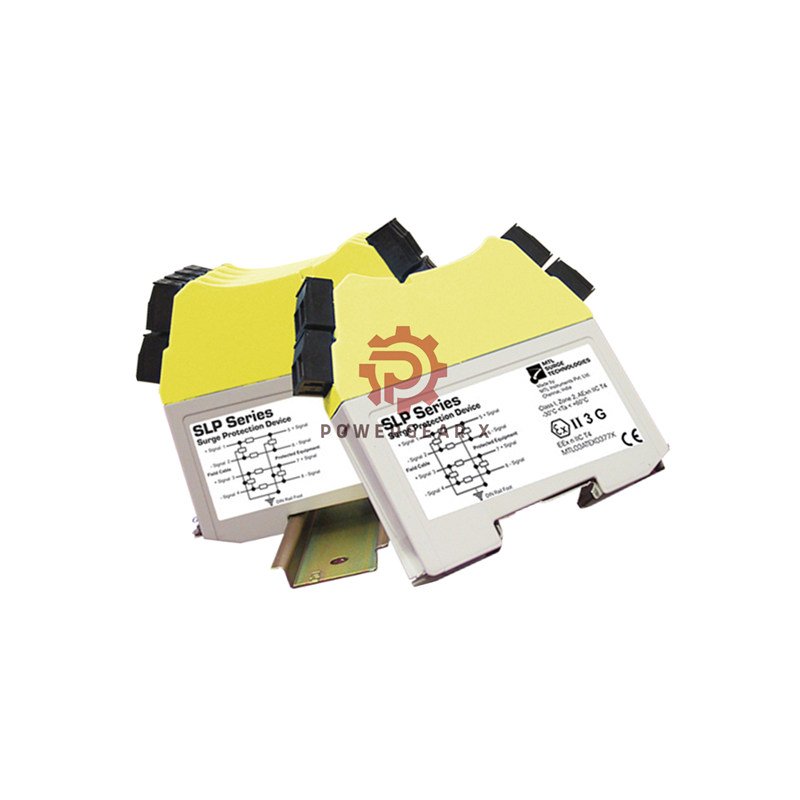

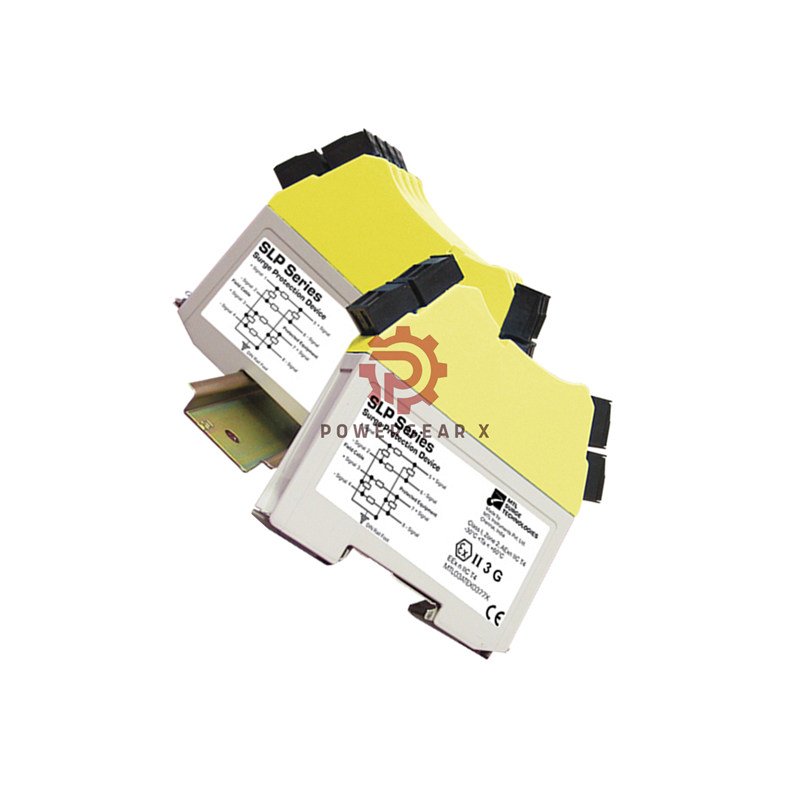

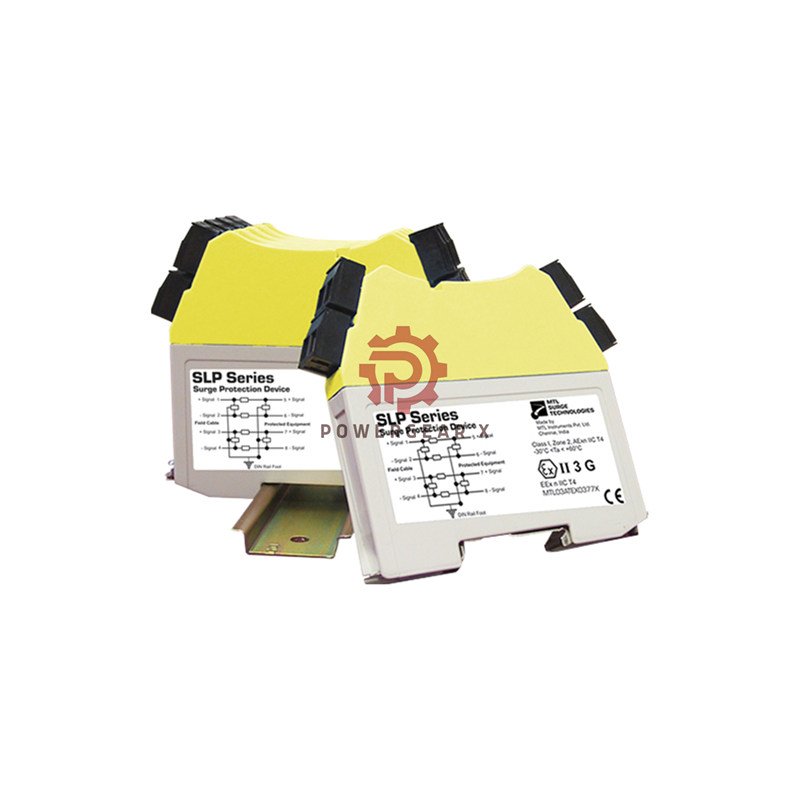

SLP16D Surge Protectors: Protect Your Equipment

Keep your systems safe with the SLP range. These devices stop power surges from damaging your equipment. They are a low-cost way to protect digital and analog signals. Each unit can protect two signal loops. It uses advanced technology to block surges up to 20kA. Your systems will run without interruption. Installation is simple on a standard DIN rail.

Technical Specifications

• Brand: MTL
• Model Series: SLP SLP16D
• Type: Surge Protection Device (SPD)
• Max Surge Current: 20kA (8/20µs waveform)
• Leakage Current: Less than 1µA
• Loop Resistance: Very low, only 2 ohm
• Capacitance: Very low, only 60pF
• Bandwidth: High, up to 50MHz
• Response Time: Extremely fast, under 1 nanosecond
• Rated Load Current: 1.50A
• Operating Temperature: Wide range, from -40°C to +80°C
• Terminals: Accept wires up to 2.5mm²
• Mounting: Easy clip-on 35mm DIN rail
• Safety Standards: Meets BS EN 61326-1, BS EN 61010-1

Model Example: SLP16D

• Nominal Voltage: 16V
• Max Discharge Current: 20kA
• Voltage Protection Level: Less than 18V
• Series Resistance: 1.0Ω

Shipping & Warranty

We ship worldwide using FedEx, UPS, and DHL. This product comes with a strong 12-month warranty.
