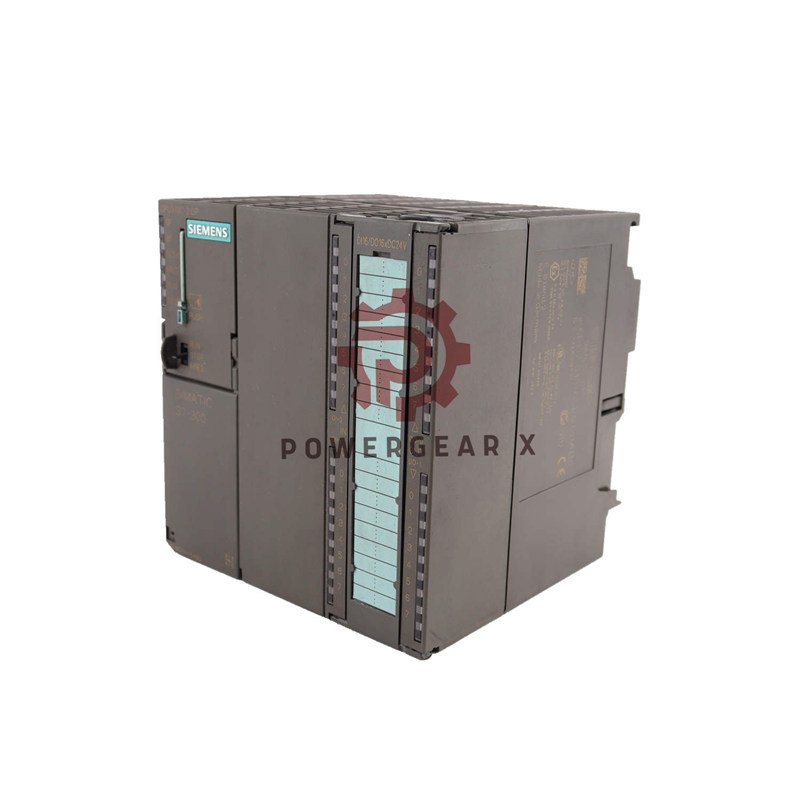

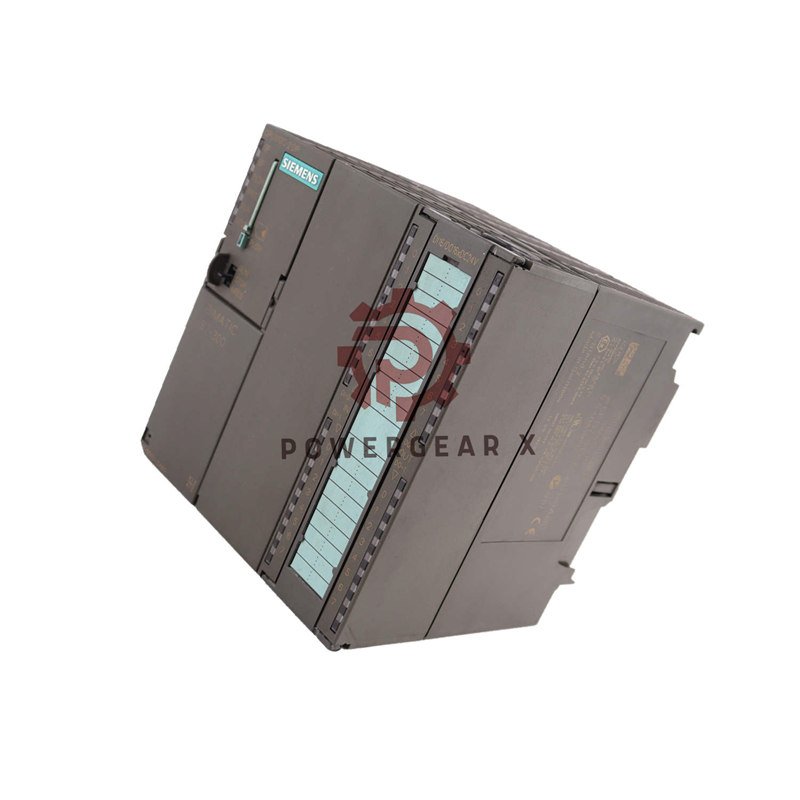

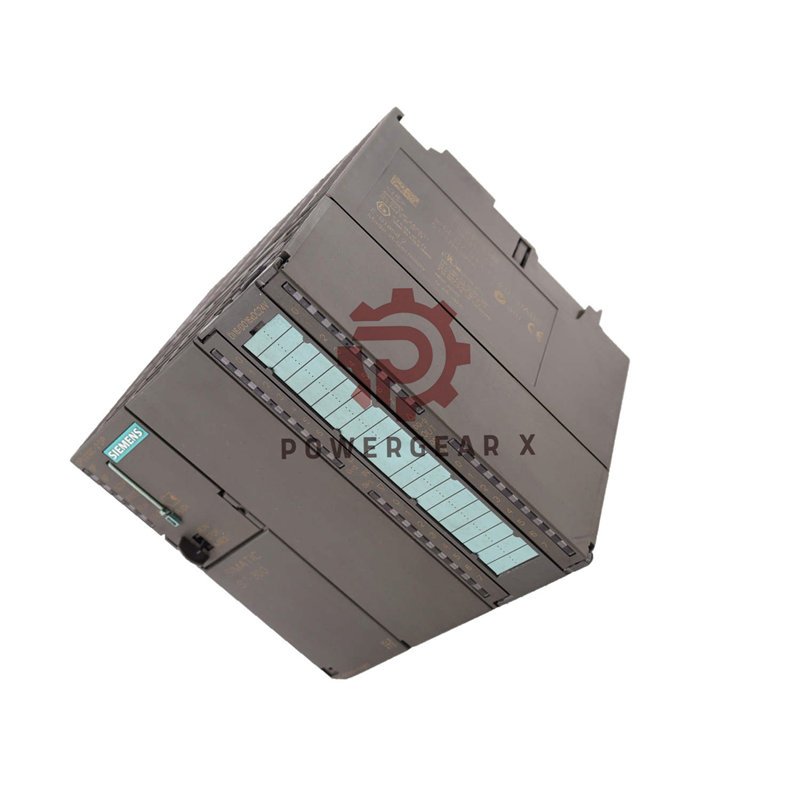

SIMATIC S7-300 CPU 313C-2DP (6ES7313-6CE01-0AB0)
Compact PLC for fast control tasks. Easy to use. Stable in harsh environments.
Author: Powergear X Automation — Warranty 12 Months.
Shipping: FedEx, UPS, DHL.
Contact: sales@powergearx.com /
+86 18030005825
Main Highlights
- Integrated CPU, DI, DO, counters, DP port
- Fast cycle times with 0.1 μs bit operations
- Reliable 24 V DC supply range (20.4–28.8 V)
- Runs STEP 7 V5.2 SP1 or higher
- Memory secured by micro memory card
- Supports MPI and DP master/slave modes
- Strong noise protection and stable performance
Core Technical Info
- Work Memory: 32 KB (program + data)
- Load Memory: Up to 8 MB MMC
- Power Loss: 10 W typical
- Inrush Current: 11 A typical
- Cycle OBs Supported: OB1, OB10, OB20, OB35, OB40, OB80, OB100, OB121, OB122
- Max Blocks: 1024 total, DB up to 16 KB
- Real-Time Clock Backup: 6 weeks
- Clock deviation: max 10 s/day
- Counters: 256 S7 + IEC counters
- Timers: 256 S7 + IEC timers
Digital I/O Specs
- Digital Inputs: 16 channels, 24 V DC
- Input Delay: 0.1 / 0.3 / 3 / 15 ms selectable
- Digital Outputs: 16 channels
- Max Load: 500 mA per channel
- Total Output Current: 8 A (≤40°C), 4 A (≤60°C)
- Short-circuit protected outputs
- Output Switching Limit: 100 Hz resistive
Integrated DP & MPI
- MPI: 187.5 kbit/s, 8 connections
- DP Master: Up to 32 slaves, 12 Mbit/s
- DP Slave: Auto baud detection
- Consistent data up to 244 bytes per slave
Extra Performance Details
- Pulse Outputs: 3 channels, 2.5 kHz max
- Frequency Measurement: Yes (3 channels)
- Positioning: Supported via function blocks
- FM/CP Support: Up to 8 FM modules and 8 PtP CPs
- Rack Expansion: Up to 4 racks
- Module Slots: 8 per rack
- Cable Length: Up to 1000 m (shielded DI/DO)
Why Choose This CPU
- Stable for long operating cycles
- Great for compact panels
- Handles mixed fast/slow signals well
- Easy to configure and maintain
- Strong worldwide Siemens ecosystem
Professional FAQ
- Q1: How can I check if my CPU 313C-2DP needs a memory card?
- A1: This model always requires an MMC for storing the program. If the CPU shows STOP after power loss, the MMC may be missing or corrupted.
- Q2: Can this CPU run motion tasks?
- A2: It supports basic positioning using pulse outputs. For complex motion, use external FM modules.
- Q3: What is a common field mistake during wiring?
- A3: Many installers forget the DI input delay settings. Using the wrong filter can cause missed fast pulses.
- Q4: How many devices can I place on the PROFIBUS line?
- A4: It can address up to 32 slaves as a DP master, but performance is best below 20 in high-speed networks.
- Q5: What is the best practice for grounding the system?
- A5: Use a single grounding point. Mixed grounding paths often introduce noise and unstable DI readings.
